factory sale ASMEstandard lpg gas propane tanker trailer for export, 25metric tons bulk propane gas tank semitrailer
factory sale ASMEstandard lpg gas propane tanker trailer for export, 25metric tons bulk propane gas tank semitrailer for sale
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of LPG tank, LPG trailer, LPG truck, etc. in China since 2004s. As the leading supplier of pressure vessels, Chengli Special Automobile Co., Ltd. could supply the smallest volume LPG trailer of 40.5cbm, and the biggest with 59.52cubic meters LPG trailer, etc.
59.52cbm lpg gas trailer, adopts single outlet, double side loading and unloading, double valves boxes, double toolboxes, safety valve, temperature gauge, pressure gauge, cut off valves, 3 axles 13ton FUHUA bridge, 12 sets12.00 vacuum tyres and 1 set spare tyre, JOST outriggers, JOST traction pin, two extinguisher bottles, steel flippers, with ABS, etc. And 59.52cubic lpg gas trailer is with the loading capactiy of 25ton.
More information, please feel free to send email to truck0011@163.com or talk to Anita directly by whatsapp/wechat: +86 13329899995
Website: www.trucksinchina.com

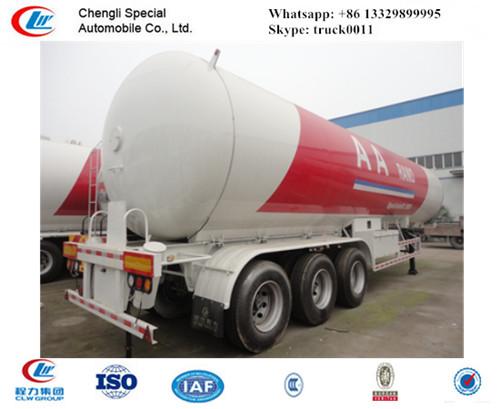

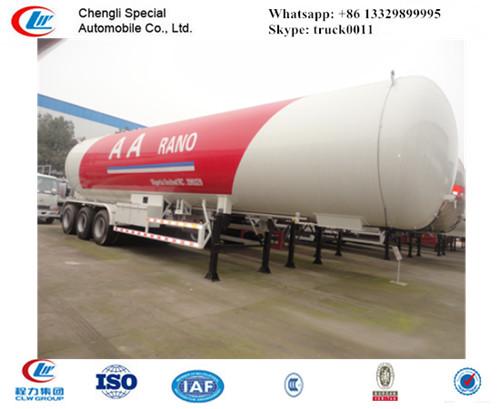

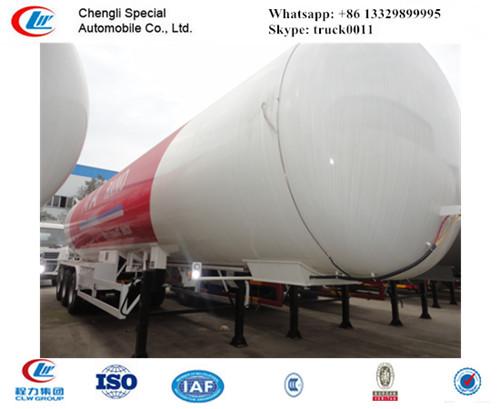

More pictures of hot sale 59.52cbm lpg gas trailer as below.
Look at the detailed techenical parameters of 25ton lpg gas trailer as below.
|
59.52cbm 3 axle LPG tanker semi-trailer for propane main parameters |
|||
|
Total mass(kg) |
40000 |
Curb mass(kg) |
15000 |
|
Rated mass(kg) |
25000 |
Chassis model |
|
|
Driver cab |
|
The bearing mass of semitrailer saddle (kg) |
16000 |
|
Approach/departure angle(°) |
-/20 |
Front/rear suspension |
-/1540 |
|
Overall dimension(mm) |
13000X2500X3990 |
Cargo body dimension(mm) |
XX |
|
Axles |
3 |
Axle load |
-/24000(three axles) |
|
Wheelbase(mm) |
7230+1310+1310 |
Springs |
-/7/7/7 |
|
Others |
The tank volume is 59.52cbm. The tanker material adopts Q370R. The propane design pressure is 1.61Mpa, the test pressure is 2.1Mpa, designed temperature is 50 degree, filling volume is 0.42ton/cbm, and corrosion allowance is 1mm. The tanker thickness is 11.5mm, two ellipse heads (12mm thick). The loading medium is LPG (Propane), the medium density is 442kg/m3. And the tanker will be with the Flammable and explosive identification. |
||
|
Function introduction |
“CLW” brand LPG storage tanker semitrailer manufactured by Chengli Special Automobile Co., Ltd. adopts scientific leading treatments, assuring the lowest Shrinkage and highest dimension stability at the low temperature. The advantages of the LPG storage tanker are low-temperature storage, easy transporting, safe and reliable, easy maintain, etc. The LPG storage tankers are suitable for storing LPG, liquid ammonia, carbon disulfide, epoxyethane, gasoline, butane, propane, propene, etc. |
||
|
More information of the LPG tanker semi-trailer, please contact Anita Deng. |
|||
