LPG Filling Gas Truck With Mobile Dispenser Machine (5,000L to 15,000L)
1. The tank is one important part of the liquefied gas tank or truck
2. The tank consists of the cylinder shell and standard ellipsoidal head.
3. The tank’s material is high intension steel plate Q345R that is specially used in pressure vessel.
4. The double side auto-welding is adopted in tank’s main welding joints.
5. The 100% x-ray checking shall be done to A and B kinds welding joints and shall accord with Ⅱ grade requirements of JB4730 ‘Non-destruction testing for Pressure vessels’.
6. The fully magnetism checking or penetrate checking shall be done to C and D kinds welding joints and shall accord with Ⅰ grade requirements of JB4730. PWHT shall be done after the welding of tank. The hydraulic test shall be done after the post weld heat treatment.
7. The manhole of the tank is used for cleaning and maintenance of the tank’s inside. The baffles are mounted on the tank’s inside to prevent wave. The seat is welded on the tank’s bottom.
8.After tanker assembly, have carried on the gas leak test to the complete vehicle according to the design pressure, authorize third party to have qualification supervise after examining by country-qualified making available to the users.
If you're interested in our lpg gas pressure vessels, please feel free to send email to truck0011@163.com or talk to Anita directly by whatsapp/wechat/Mob.: +86 13329899995.
The main parameters of hot sale CLW Brand mini lpg propane gas dispensing trucks manufactured by Chengli Special Automobile Co., Ltd. as below.
| CLW RHD 2.3tons LPG gas dispensing truck | ||||
| Overall dimension (L*W*H) | 5900×2045×2600(mm) | |||
| Tank dimension(inner diameter*wall thickness*length) | 1620*8*3059(mm) | |||
| Real loading capacity | 5,500 L | |||
| Total Mass | 7495(Kg) | |||
| Loading capacity | 2310(Kg) | |||
| Curb weight | 4990(Kg) | |||
| Engine | Model/Rated Power | CY4102-C3F | ||
| Displacement/ power | 3856L/70kw | |||
| Emission Standard | Euro 3 | |||
| Manufacturer | Chaochai | |||
| Diesel 4-cylnder in line with water cooling, turbo charging EGR | ||||
| Chassis | ||||
| driving type | 4*2 RHD | |||
| Steering Type | Power Steering | |||
| Type & Size of Tyre | 7.00-16 | |||
| Tread( front/rear) | 1586/1530 | |||
| Wheel Base | 3300mm | |||
| Number of leaf spring of suspension | 8/9+5 | |||
| Max Speed | 88 Km/h | |||
| Gearbox | 5 speed gearbox | |||
| Driver cab | single row driver cab without air-conditioner | |||
| Storage battery | Camel brand | |||
| Electron extinction | Yes | |||
| ;lpg gas tanker | ||||
| Volume: | 5.5cbm | |||
| Tank material: | Q345R | |||
| Tank diameter: | 1600mm | |||
| Tank thickness: | 10mm | |||
| Tank length: | 3059mm | |||
| Filling gas | Propane(LPG) | |||
| Design Pressure: | 1.61Mpa | |||
| Filling parts | ||||

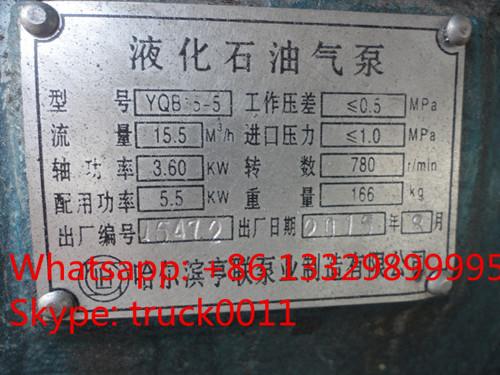

| Lpg gas Pump | 1 | |||
| LPG gas Dispenser | 1 | |||
| Reel Pipeline | 15m | |||
| Filling nozzle | Suitable for different kinds of gas cylinders. | |||
| Accessory | ||||
| Manhole | 1 | |||
| Safety Valve | 1 | |||
| Tool Box | 1 | |||
| Valve Box | 1 | |||
| Thermometer | 1 | |||
| Pressure Gauge | 1 | |||
| Emergency Valve | 1 | |||
| Fender | Steel | |||
| Fire Extinguisher | 2 | |||
| Anti-static Tape | 1 | |||
| Paint | As required | |||
| Standard | ||||
| Pressure vessels, Supervision Regulation on Safety Technology for Pressure Vessels | ||||

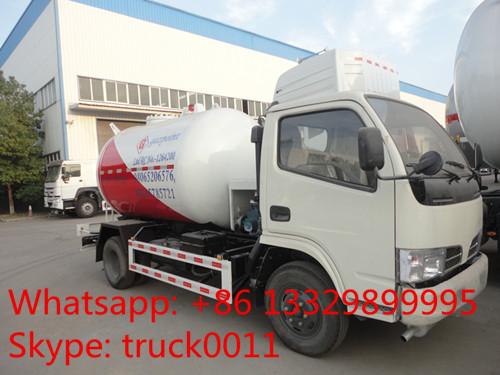

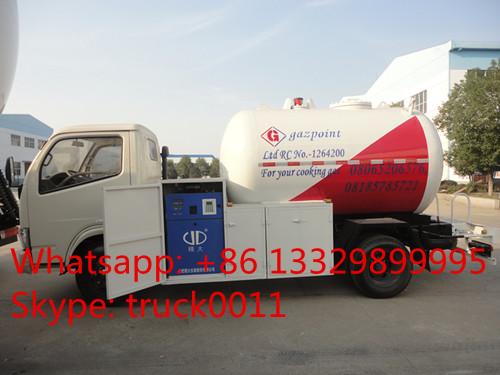

More pictures of hot sale LPG Filling Gas Truck With Mobile Dispenser Machine as below.
