factory sale best price HOWO brand propane gas dispenser truck, 20cubic -25cubic lpg gas truck for refillin gas cylinder
factory sale best price HOWO brand propane gas dispenser truck, 20cubic -25cubic lpg gas truck for refillin gas cylinder, good quality howo gas refueling truck,20000 liter~25000 liter lpg filling truck gas cylinder 30m3
LPG,liquid pressure gas,which is made from oil.The main gas is propane,Isobutane.
Currently our company produce the lpg tank, lpg tank trailer,lpg tank truck to loading and transporting.
The LPG tank volume from 5~120 m3 for above ground, 5~100 m3 for underground.
The LPG tank trailer volume from 30~60 m3 with two axles or three axles.
Lpg gas storage tanks manufactured by Chengli Special Automobile Co., Ltd. adopt advanced welding technology, end socket arc butt welding, and the once-forming of composite steel-plastic technology. Equipped with active and passive safety devices to meet an emergency and can load and unload the material in long distance and completely close condition. Be applied to transport varied oil, fuel, and chemical material, such as natural gas, liquefied petroleum gas, liquefied ammonia, carbon disulfide, epoxy ethane, gas, butane, dimethymethane, propylene, etc. cross section of tank could be oval, round and round-square. Heat insulation and heating devices are optional.
If you're interested in our lpg gas pressure vessels, please feel free to send email to truck0011@163.com or talk to Anita directly by whatsapp/wechat/Mob.: +86 13329899995.
hot sale lpg gas dispensing truck
HOWO brand 25m3 lpg gas dispensing truck for sale
The LPG tank truck with the volume from 5~35 m3.
good quality howo gas refueling truck,20000 liter~25000 liter lpg filling truck gas cylinder 30m3
SINO TRUK lpg gas tank truck for refilling gas cylinders for sale
More technical parameters of hot sale SINO TRUK howo brand lpg gas dispensing truck as below
| Item | Unit | Description | ||||||||
| Model | SINO TRUK HOWO brand LPG Truck | |||||||||
| Dimension | mm | 10200*2500*3450 | ||||||||
| Tank Dimension | mm | 7534×2124 / 24.81 cubic meter | ||||||||
| Curb Weight | kg | 14385 | ||||||||
| Wheel Base | mm | 4600+1350 | ||||||||
| F/R track base | mm | 1940/1860 | ||||||||
| F/R Axle-Load | Kg | 7000/13000/13000 | ||||||||
| Approach/Departure angle | . | 25/11 | ||||||||
| Traction system | 4x2 | Tire Specification/Number | 12.00R20 / 10+1 Units | |||||||
| Max speed | 90 km/h | Number of axles | 3 | |||||||
| Engine model | WD615.93 | Emission/kw | 9726ml / 216 KW, 290 Hp | |||||||
| Diesel , 6 Cylinders, Diesel, Direct-line, Turbocharge and aftercooling | ||||||||||
| Engine Manufacturer | Weichai Engine Power Co.,Ltd | |||||||||
| Steering | Power | Transmission | HW15710, 10F&2R | |||||||
| Cab passenger | 3 | Electric System | 24V | |||||||
| Dirve system | Left hand or Right hand driven | |||||||||
| Air Condition | Yes | CD , Radio, Mp3 | ||||||||
| LPG Tank Design | ||||||||||
| Load Substance: | Oil Gas (propane) | Designed Pressure: | 1.77Mpa | Designed TEMP: | 50°C | |||||
| Load parameter: | 0.42T/m3 | Material: | Q345R,16MnIII, Q370R | |||||||
| Remark: | Equipment with Safety Valve, Liquid gage, Pressure gage, Temperature gage, Urgent cut off valve, Valve box,Fire extinguisher, plastic pipe of staticproof, Well-secured fenders and mudguards,Tire well-secured,fenders and mudguards. One side liquid output port, Option~ Two side output port. Option~ installing recharge and discharge device, Pump,and others |
|||||||||
Lpg gas storage tanks manufactured by Chengli Special Automobile Co., Ltd. adopt advanced welding technology, end socket arc butt welding, and the once-forming of composite steel-plastic technology. Equipped with active and passive safety devices to meet an emergency and can load and unload the material in long distance and completely close condition. Be applied to transport varied oil, fuel, and chemical material, such as natural gas, liquefied petroleum gas, liquefied ammonia, carbon disulfide, epoxy ethane, gas, butane, dimethymethane, propylene, etc. cross section of tank could be oval, round and round-square. Heat insulation and heating devices are optional.
Our company has solid technology, flawless inspection, advanced equipments, reliant quality and flexible mode of operation. What’s more, it has roundly passed the ISO9001-2000, 3C(China Compulsory Certification), and US ASME, etc.

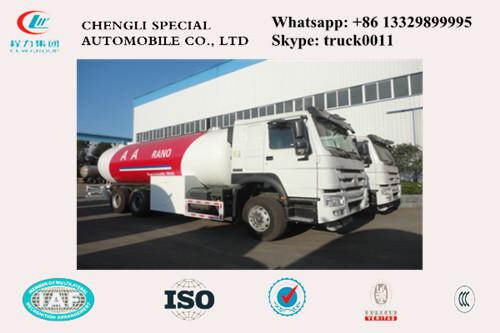

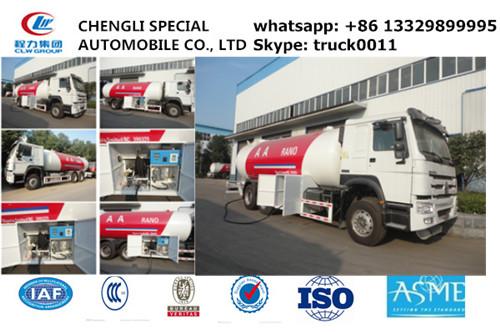

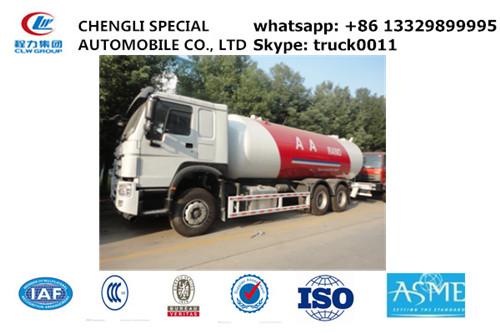

More pictures of hot sale howo lpg gas dispensing truck as below.
