high quality and competitive price Euro 3 170hp Dongfeng 8,000L LPG gas delivery truck for sale, dongfeng lpg gas tank
high quality and competitive price Euro 3 170hp Dongfeng 8,000L LPG gas delivery truck for sale, dongfeng lpg gas tank
LPG gas delivery truck is with the advantage of compression resistant tank for transporting and laying up the liquefied , which is the special-purpose vehicles(For example propane , propylene, liquid ammonia, liguid nitrogen, liquid hydrogen, liquefied netural gas , liquid state sulphur dioxide and so on ).
Tank shaped use the advanced welding technology, end socket arc butt welding, and the once-forming of composite steel-plastic technology. Equipped with active and passive safety devices to meet an emergency and can load and unload the material in long distance and completely close condition. Be applied to transport varied oil, feul and chemical material, such as natural gas, liquefied petroleum gas, liquefied ammonia, carbon bisulfide, epoxyethane,gas, butane, dimethylmethane, propylene, etc. Cross section of tank could be oval, round and round-square. heat insulation and heating device is optional.
If you're interested in our lpg gas delivery truck, please feel free to send email to truck0011@163.com or talk to Anita directly by whatsapp/wechat/Mob.: +86 13329899995.
More technical parameters of hot sale dongfeng 8,000L lpg gas delivery truck as below
|
Dongfeng 8,000L LPG gas delivery truck |
||
|
Chassis Model /Manufacturer |
EQ1110 |
|
|
Overall dimension (L*W*H) |
7100*2230*2810 mm |
|
|
Tank dimension(inner diameter*wall thickness*length) |
2600*8*4266(mm) |
|
|
Real loading capacity |
8,000L |
|
|
Total Mass |
10,460 Kg |
|
|
Loading weight |
3,360g |
|
|
New weight |
6100kg |
|
|
Engine |
Model/Rated Power |
B170 33 |
|
Displacement/ power |
5900L/125kw |
|
|
Emission Standard |
Euro 3 |
|
|
Displacement(ML) |
5900 |
|
|
Manufacturer |
Dongfeng Cummins Motor Co., Ltd. |
|
|
6-cylnder in line with water cooling, turbo charging EGR |
||
|
Chassis |
||
|
driving type |
4*2 |
|
|
Steering Type |
Power Steering |
|
|
Type & Size of Tyre |
9.00-20 |
|
|
Tread( front/rear) |
1900/1800 |
|
|
Wheel Base |
3950mm |
|
|
Number of leaf spring of suspension |
8/11+8 |
|
|
Max Speed |
95 Km/h |
|
|
Gearbox |
Dongfeng 6 speed gearbox |
|
|
Driver cab |
Dongfeng 153 luxurious driver cab without air-conditioner |
|
|
LPG gas tanker |
||
|
Capacity of tank body |
8,000 L |
|
|
Material |
Q345R |
|
|
Head end |
Double ellipse shape head end *8mm thickness |
|
|
Designed pressure |
1.61Mpa |
|
|
Filling ratio |
0.42 |
|
|
Safety fittings |
Safety valve, Liquid Indicator, pressure indicator, temperature indicator, Emergency Cut-off Valves, fire extinguisher box, antistatic earthing tape, protective guard, tire security board, etc.
|
|

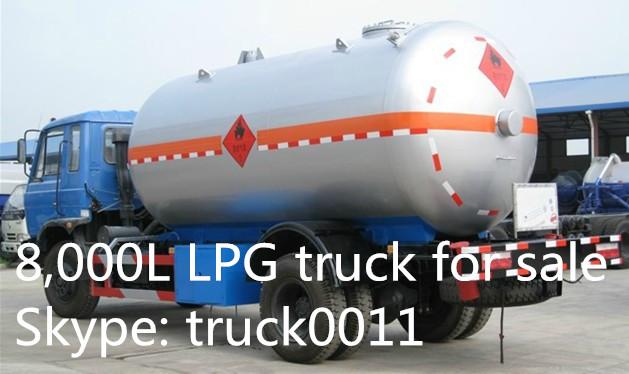

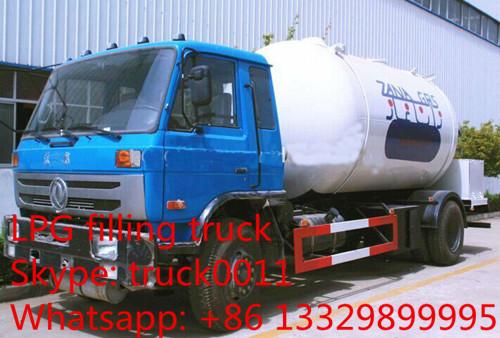

More pictures of CLW high quality and competitive price bulk LPG gas delivery trucks manufactured by Chengli Special Automobile Co., Ltd. as below.
More information, please feel free to contact with Ms. Anita Deng.
