50cubic meters propane gas skid-mounted filling station for sale, best price clw brand 50m3 mobile skid lpg gas plant
50cubic meters propane gas skid-mounted filling station for sale, factory direct sale best price clw brand 50m3 mobile skid lpg gas plant
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of lpg gas pressure vessels in China. With many years’ development, Chengli can manufacture and sell surface/underground lpg gas storage tanks, lpg gas tank semitrailer, lpg gas truck, lpg gas bobtail vehicle, skid lpg gas refilling station, etc.And last year, our CLW brand lpg gas pressure vessels have passed USA ASME standard. That is to say, our CLW brand lpg gas storage tanks can be esxported to USA, European countries.
Welcome more and more clients all over the world to visit our CLW Group and purchase our CLW brand high quality and best price lpg gas pressure vessels.
If you're interested in our skid lpg gas station, please feel free to send email to truck0011@163.com or talk to Anita directly by whatsapp/wechat/Mob.: +86 13329899995.
1. gas refueling station,lpg gas station, lpg filling plant
2. 5ton 10ton 20ton 30ton 40ton 50ton 60ton lpg filling plant
|
Technical specification |
parameters |
Subject |
parameters |
|||
|
tank |
Item Number |
50M3 LPG tank |
Liquid Indictor |
Model |
UHZ-518C14 |
|
|
|
Overall size(mm) |
12200*2400*3800 |
|
Version |
Magnetic |
|
|
|
Net weight(Kg) |
11000 |
|
Normal pressure |
2.5Mpa |
|
|
|
Vessel type |
III |
|
Scope of testing |
50-2300mm |
|
|
|
Designing pressure |
1.77Mpa |
|
Precision |
2.5 |
|
|
|
Working pressure |
1.61Mpa |
Safety Valve |
Model |
A42F-2.5-80 |
|
|
|
Designing temperature |
-19~50°C |
|
Version |
Built-in |
|
|
|
Filling Medium |
Propane |
|
Normal pressure |
2.5 Mpa |
|
|
|
Corrosion margin |
1.0mm |
|
Normal diameter |
DN50 |
|
|
|
Volume |
450CBM(50000L) |
|
Opening pressure |
1.68-1.76 Mpa |
|
|
|
Heat treatment |
bulk |
|
Re-seating pressure |
≥80% of opening pressure |
|
|
|
Filling factor |
420-590kg/m3 |
Handling System |
Normal Diameter |
Feed pip |
DN50 |
|
|
Material |
Q345R |
|
|
Drain pip |
DN50 |
|
|
Hydraulic test pressure |
2.22 Mpa |
|
|
Admission port |
DN50 |
|
|
Gas tight test pressure |
1.77 Mpa |
|
|
Sewage outfall port |
DN50 |
|
|
Cylinder thickness |
11.82mm |
|
|
Vent nozzle port |
DN50 |
|
|
Head thickness |
11.80mm |
stand |
GB150-1998<steel pressure vessels> |
||
|
|
Service time |
15 years |
|
Safety regulation of pressure vessels |
||
|
Accessory |
Safety valve, magnetic flap liquid level gauge, pressure gauge, thermometer, cut-off valves, etc. |
|||||
|
Specification |
Designed Pressure: 1.66Mpa Filling Ratio: 0.42 kg/L Working Temperature:-50℃ Corrosion Allowance: 1mm |
|||||

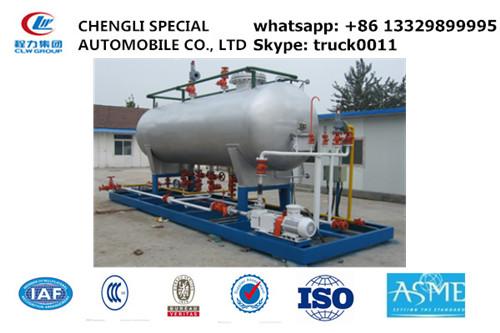

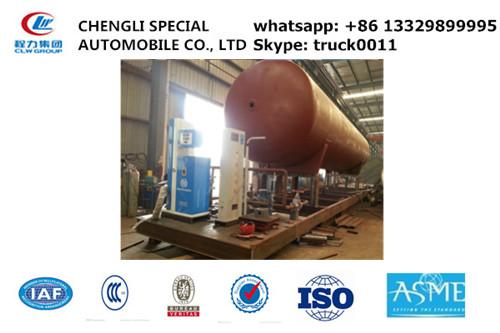

Lpg gas skid station, is also called skid system lpg station, propane lpg skid-mounted filling station, lpg mounted skid refilling station, mobile lpg filling station, lpg skid station with dispenser and weight scale, lpg gas cylinder filling station, etc.
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of lpg gas pressure vessels in China since 2004s. With many years’ development, we could offer lpg gas tank, lpg gas trailer, lpg gas truck, lpg gas dispenser vehicle, mobile skid lpg gas filling station, etc.
More information, please feel free to contact with Ms. Anita.
Whatsapp/wechat: +86 13329899995
Skype: truck0011
QQ: 504873236
