Skid lpg gas station is also called lpg skid-mounted filling station LPG GAS dispenser, Mobile Skid LPG Gas Station,]lpg mounted skid refilling station, LPG FILLING SKID STATION, lpg filling station skid-mounted moving, lpg propane skid station, LPG skid station gas station, lpg skid-mounted filling station, LPG Skid-Mounted station with LPG tank, dispensers, valves, pumps and skid, etc.
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of lpg gas pressure vessels, such as bulk lpg tank, lpg gas trailer, lpg gas truck, skid lpg gas filling plant, lpg gas bobtail vehicle, lpg gas dispensing truck, etc. And recently, our company lpg gas pressure vessesl products have passed ASME. That is to say, our lpg pressure vessels can be exported to USA, Europe, etc.
More information, please feel free to contact with Ms. Anita Deng. Please send email to truck0011@163.com.
The main parameters of hot sale 10m3 skid lpg gas plant as below
|
10 CBM LPG SKID STATION DIMENSIONS |
|||
|
Volume of Tank |
10 CBM |
||
|
Filling Weight |
4000 kg |
||
|
Tank Weight |
2950 kg |
||
|
Thickness of Shell (mm) |
10 mm |
||
|
Thickness of Endplate (mm) |
10 mm |
||
|
Tank Diameter (mm) |
1600 mm |
||
|
External Dimensions (mm) (length x width x height) |
5260x 1620 x 2210 mm |
||
|
Material of Tank and Main Pressure Parts |
Carbon Steel Q345R |
||
|
Filling Medium |
Liquefied Petroleum Gas ( Propane) |
||
|
Design Pressure |
1.77 MPa |
||
|
Corrosion Allowance |
1 mm |
||
|
Medium Density |
500 kg/ cbm |
||
|
Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China. |
|||
|
Main parts of LPG Tank |
|||
|
Item |
Specification |
Quantity |
|
|
Discharge Pipe |
DN50 |
1 |
|
|
Inflow Pipe |
DN50 |
1 |
|
|
Outlet |
DN50 |
1 |
|
|
Gas phase balance pipes |
DN50 |
2 |
|
|
Manhole |
DN450 |
1 |
|
|
Drain Hole |
DN50 |
1 |
|
|
Electronic LPG Filling Machine |
Can fill 0.5kg to 150kg gas cylinder with receipt printing |
1 |
|
|
Main accessories: Cut-off Valve, Needle Valve, Safety Valve, Liquid level meter, Pressure gauge, Temperature Gauge. Skid Parts List will be show in separated page below. |
|||
The spare parts for the LPG Skid-station
|
|
Model Number |
Quantity |
|
Tank |
10CBM |
|
|
Cut-off Valve |
DN50 |
6 Pieces |
|
Cut-off Valve |
DN25 |
2 Pieces |
|
Cut-off Valve |
DN50 |
1 Pieces |
|
Needle Valve |
J24W, M20×1.5 |
1 Pieces |
|
Safety Valve |
DN50 |
1 Pieces |
|
Magnetic reversible level gauge |
UZFAL-2.5RF2640-0.50 |
1 Pieces |
|
Pressure gauge |
M20×1.5 1.5Level 0～4MPA |
1 Pieces |
|
Thermometer |
M33×2 2.5Level |
1 Pieces |
|
Accessory |
Quantity |
|
Cut-off Valve |
9Pieces |
|
Shock-absorbing Tube |
1 Set |
|
Filling pump machine |
2 Pieces |
|
Discharge Pipe |
5 Miters/set, 2sets |
|
Anti static electric motor |
1 Piece |
|
Bottom Base |
1 Unit |
|
Compressor |
1.5MPa( choose to install, used to fill lpg gas truck) |
|
Freight |
To Shanghai Port
|

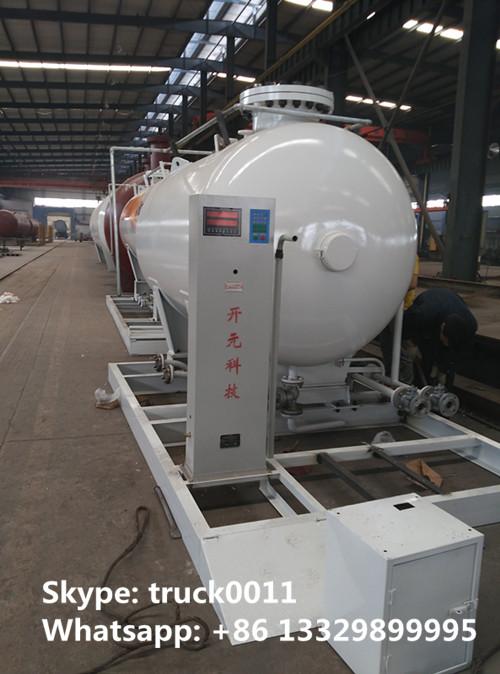

More pictures of hot sale mobile 10m3 skid lpg gas refilling stations manufactured by Chengli Special Automobile Co., Ltd. as below
best price hot sale skid lpg gas plant
best price CLW brand 10m3 skid lpg gas plant for sale
