ASME standard 20m3 skid-mounted lpg gas plant, hot sale best price 8 metric tons mobile skid-mounted lpg gas station
ASME standard 20m3 skid-mounted lpg gas plant, hot sale best price 8 metric tons mobile skid-mounted lpg gas station
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of lpg gas pressure vessels in China. With many years’ development, Chengli can manufacture and sell surface/underground lpg gas storage tanks, lpg gas tank semitrailer, lpg gas truck, lpg gas bobtail vehicle, skid lpg gas refilling station, etc.And last year, our CLW brand lpg gas pressure vessels have passed USA ASME standard. That is to say, our CLW brand lpg gas storage tanks can be esxported to USA, European countries.
Welcome more and more clients all over the world to visit our CLW Group and purchase our CLW brand high quality and best price lpg gas pressure vessels.
If you're interested in our skid lpg gas station, please feel free to send email to truck0011@163.com or talk to Anita directly by whatsapp/wechat/Mob.:+86 13329899995.
The main parameters of hot sale 20m3 mobile skid lpg gas refilling station for gas cylinders as below
|
20 CBM LPG TANK DIMENSIONS |
|||
|
Volume of Tank |
20 CBM |
||
|
Filling Weight |
8,000 kg |
||
|
Tank Weight |
5050 kg |
||
|
Thickness of Shell (mm) |
12 mm |
||
|
Thickness of Endplate (mm) |
12 mm |
||
|
Tank Diameter (mm) |
2000 mm |
||
|
External Dimensions (mm) (length x width x height) |
6724 x 2024 x 2614 mm |
||
|
Material of Tank and Main Pressure Parts |
Carbon Steel Q345R |
||
|
Filling Medium |
Liquefied Petroleum Gas ( Propane) |
||
|
Design Pressure |
1.77 MPa |
||
|
Corrosion Allowance |
1 mm |
||
|
Medium Density |
500 kg/ cbm |
||
|
Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China. |
|||
|
Main parts of LPG Tank |
|||
|
Item |
Specification |
Quantity |
|
|
Discharge Pipe |
DN50 |
1 |
|
|
Inflow Pipe |
DN50 |
1 |
|
|
Outlet |
DN50 |
1 |
|
|
Gas phase balance pipes |
DN50 |
2 |
|
|
Manhole |
DN450 |
1 |
|
|
Drain Hole |
DN50 |
1 |
|
|
Electronic LPG Filling Machine |
Can fill 0.5kg to 150kg gas cylinder with receipt printing |
1 |
|
|
Main accessories: Cut-off Valve, Needle Valve, Safety Valve, Liquid level meter, Pressure gauge, Temperature Gauge. Skid Parts List will be show in separated page below. |
|||
The spare parts for the LPG Skid-station
|
|
Model Number |
Quantity |
|
Tank |
20CBM |
|
|
Cut-off Valve |
DN50 |
6 Pieces |
|
Cut-off Valve |
DN25 |
2 Pieces |
|
Cut-off Valve |
DN80 |
1 Pieces |
|
Needle Valve |
J24W, M20×1.5 |
1 Pieces |
|
Safety Valve |
DN80 |
1 Pieces |
|
Magnetic reversible level gauge |
UZFAL-2.5RF2640-0.50 |
1 Pieces |
|
Pressure gauge |
M20×1.5 1.5Level 0～4MPA |
1 Pieces |
|
Thermometer |
M33×2 2.5Level |
1 Pieces |
|
Accessory |
Quantity |
|
Cut-off Valve |
9Pieces |
|
|
|
|
Shock-absorbing Tube |
1 Set |
|
Filling pump machine |
2 Pieces |
|
Discharge Pipe |
5 Miters/set, 2sets |
|
Anti static electric motor |
1 Piece |
|
Bottom Base |
1 Unit |
|
Compressor |
1.5MPa( choose to install, used to fill lpg gas truck, etc. ) |
|
Freight |
To Shanghai Port |
More pictures of hot sale 20m3 skid mounted lpg gas refilling plant as below

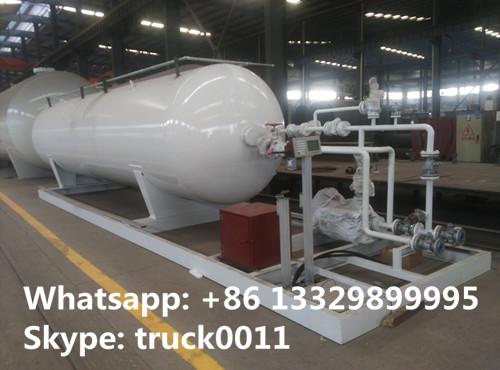

hot sale 20,000L mobile skid lpg gas refilling station

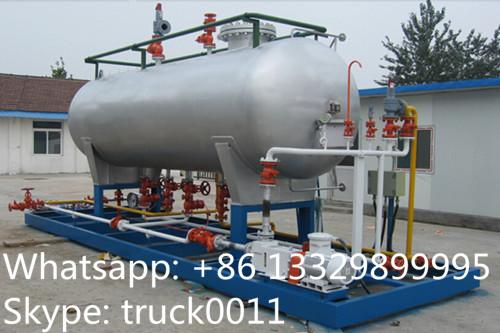

CLW brand 20m3 lpg gas refilling station wit single one electronic scale and filling nozzle for sale

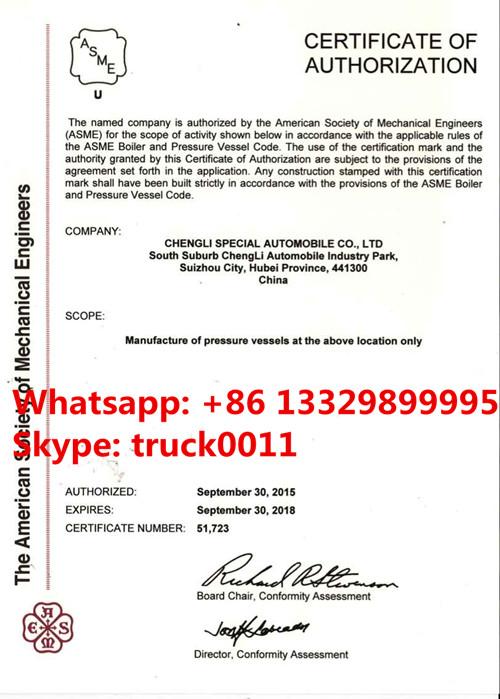

CLW brand lpg gas pressure vessels passed US ASME standard
More information, please feel free to contact with Ms. Anita Deng.
Whatsapp/wechat: +86 13329899995
Skype: truck0011
QQ: 504873236
