6MT skid mounted lpg propane gas refilling plant for filling gas cylinders for sale, mobile skid lpg gas refilling plant
6MT skid mounted lpg propane gas refilling plant for filling gas cylinders for sale, mobile skid lpg gas refilling plant for sale
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of bulk lpg gas storage tanks, lpg gas trailer, lpg gas delivery trucks, etc. in China since 2004s. With many years'development, OUR CLW brand pressure vessels have been exported to so many countries all over the world. Recently our CLW brand pressure vessels products pass the ASME certificate, and then our CLW lpg gas tank and lpg gas trailers could been exported to USA, Europe, Taiwan, etc. More information, please feel free to contact with Ms. Anita Deng.
Recently, we Chengli Special Automobile Co., Ltd. received an order of 10m3 skid mounted propane gas filling plant. However, this is not the first time for our company to design and manufacture the skid lpg gas filling plant. Last year, our company had designed and produced a 40,000L skid mounted lpg gas filling plant for Nigeria client. So our company have the full experience to manufacture that kind of lpg gas pressure vessels. And also last year, our CLW brand lpg gas pressure vessels had passed US ASME certificate.
If you're interested, please feel free to send email to truck0011@163.com or talk to Anita directly by whatsapp/wechat/Mob.: +86 13329899995.
We can design and manufactured the lpg gas pressure vessels accordance with Chinese GB standard and also US ASME standard.
|
12 CBM LPG SKID STATION DIMENSIONS |
|||
|
Volume of Tank |
12 CBM |
||
|
Filling Weight |
4488 kg |
||
|
Tank Weight |
3360 kg |
||
|
Thickness of Shell (mm) |
10 mm |
||
|
Thickness of Endplate (mm) |
12 mm |
||
|
Tank Diameter (mm) |
1800 mm |
||
|
External Dimensions (mm) (length x width x height) |
5034x 1820 x 2410 mm |
||
|
Material of Tank and Main Pressure Parts |
Carbon Steel Q345R |
||
|
Filling Medium |
Liquefied Petroleum Gas ( Propane) |
||
|
Design Pressure |
1.77 MPa |
||
|
Corrosion Allowance |
1 mm |
||
|
Medium Density |
420 kg/ cbm |
||
|
Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China. |
|||
|
Main parts of LPG Tank |
|||
|
Item |
Specification |
Quantity |
|
|
Discharge Pipe |
DN50 |
1 |
|
|
Inflow Pipe |
DN50 |
1 |
|
|
Outlet |
DN50 |
1 |
|
|
Gas phase balance pipes |
DN50 |
2 |
|
|
Manhole |
DN450 |
1 |
|
|
Drain Hole |
DN50 |
1 |
|
|
Electronic LPG Filling Machine |
Can fill 0.5kg to 150kg gas cylinder with receipt printing |
1 |
|
|
Main accessories: Cut-off Valve, Needle Valve, Safety Valve, Liquid level meter, Pressure gauge, Temperature Gauge. Skid Parts List will be show in separated page below. |
|||
The spare parts for the LPG Skid-station
|
|
Model Number |
Quantity |
|
Tank |
10CBM |
|
|
Cut-off Valve |
DN50 |
6 Pieces |
|
Cut-off Valve |
DN25 |
2 Pieces |
|
Cut-off Valve |
DN50 |
1 Pieces |
|
Needle Valve |
J24W, M20×1.5 |
1 Pieces |
|
Safety Valve |
DN50 |
1 Pieces |
|
Magnetic reversible level gauge |
UZFAL-2.5RF2640-0.50 |
1 Pieces |
|
Pressure gauge |
M20×1.5 1.5Level 0～4MPA |
1 Pieces |
|
Thermometer |
M33×2 2.5Level |
1 Pieces |
|
Accessory |
Quantity |
|
Cut-off Valve |
9Pieces |
|
Shock-absorbing Tube |
1 Set |
|
Filling pump machine |
2 Pieces |
|
Discharge Pipe |
5 Miters/set, 2sets |
|
Anti static electric motor |
1 Piece |
|
Bottom Base |
1 Unit |

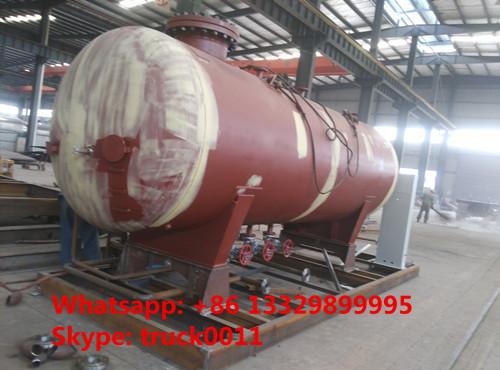

More pictures of hot sale skid lpg gas refilling plant as below
More pictures of hot sale 12m3 skid mounted lpg gas filling plant as below.
More information, please feel free to contact with Ms. Anita deng.
Skype: truck0011;
Whatsapp/wechat: +86 13329899995
QQ: 504873236
