ASME standard mobile skid-mounted propane gas refilling tank station for gas cylinders, factory sale skid lpg gas plant
ASME standard mobile skid-mounted propane gas refilling tank station for gas cylinders, factory sale skid lpg gas plant
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of lpg gas pressure vessels in China. With many years’ development, Chengli can manufacture and sell surface/underground lpg gas storage tanks, lpg gas tank semitrailer, lpg gas truck, lpg gas bobtail vehicle, skid lpg gas refilling station, etc.And last year, our CLW brand lpg gas pressure vessels have passed USA ASME standard. That is to say, our CLW brand lpg gas storage tanks can be esxported to USA, European countries.
Welcome more and more clients all over the world to visit our CLW Group and purchase our CLW brand high quality and best price lpg gas pressure vessels.
If you're interested in our skid lpg gas station, please feel free to send email to truck0011@163.com or talk to Anita directly by whatsapp/wechat/Mob.: +86 13329899995.
The detailed technical parameters of 12m3 and 12m3 skid lpg gas filling plant for refilling gas bottles as below.
|
Design parameter |
Volume (m³) |
Nomidal Diameter(mm) |
Thickness(mm) |
Weight(KG) |
External Dimensions (Length×Width×Height) |
||
|
Shell |
Head |
Tank |
Filling |
||||
|
Filling Medium:Liquefied Petroleum Gas Design Pressure:1.77MPa |
10 |
1600 |
10 |
10 |
2950 |
3950 |
5260*1620*2210 |
|
12 |
1800 |
10 |
12 |
3360 |
4788 |
5034*1820*2410 |
|
|
Main part of Tank |
Item |
Specification |
Quantity(pc) |
||||
|
Drain hole |
DN50 |
1 |
|||||
|
Liquid inlet |
DN50 |
1 |
|||||
|
Liquid outlet |
DN50 |
1 |
|||||
|
Manhole |
DN450 |
1 |
|||||
|
Empty valve |
DN50 |
1 |
|||||
|
Gas line |
DN50 |
2 |
|||||
|
Safe valve |
DN80 |
2 |
|||||
|
Thermometer |
M33x2 |
2 |
|||||
|
Level meter |
DN25 |
1 |
|||||
|
Pressure gauge |
M20x1.5 |
2 |
|||||
|
Equipment |
1, Explosion-proof Motor 2, Compactor(ZW0.8/10-16) 3, Hydraulic Pump 4, Filling machine(JQ-060L-A-1G single filling gun /JQ-060L-B-2G double filling gun) |
||||||
|
Material of Tank and Main Pressure Parts |
Q345R/Q370R |
||||||
|
Carried Standard |
Pressure vessels,Supervision Regulation on Safety Technology for Stationary Vessels |
||||||
|
Safety Valve of Selection Fitting |
Safety valve,Column magnetic reversible level meter,Pressure gauge,Thermometer,Cut-off valve |
||||||
Features:
1.Factory direct sale with the high workmanship, reasonable price.
2.Capacity:5m3, 8m3, 10m3, 12m3, 15m3, 20m3, 25m3, 32m3, 50m3, 60m3, 65m3, 80m3, 100m3, 120m3
3.New design:Attractive appearance and safety in usage
4.Certificate ISO9001 and 3C, ASME.
LPG series products:
1.LPG storage tank of all kinds of size(5m3, 8m3, 10m3, 12m3, 15m3, 20m3, 25m3, 32m3, 50m3, 60m3, 65m3, 80m3, 100m3, 120m3)
2.LPG truck/LPG tanker truck/LPG tank truck
3.LPG semi-trailer
More information, please feel free to contact with Ms. Deng.
Whatsapp: +86 13329899995
SKype: truck0011
QQ: 504873236
More pictures of hot sale mini lpg gas propane skid filling plant as below.

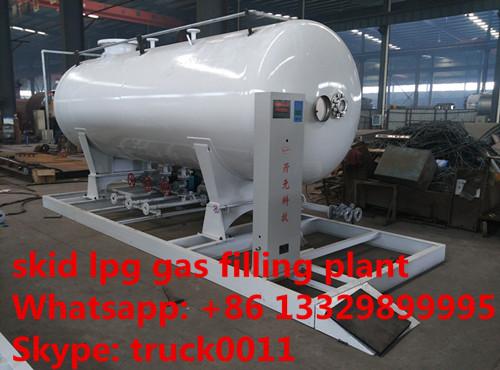

factory sale skid lpg gas plant for sale
skid lpg gas filling plant for sale

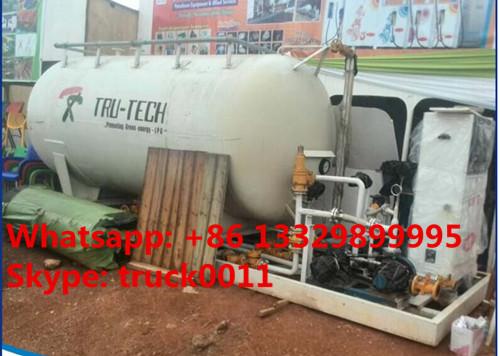

best price skid lpg gas refilling station for sale
More information, please feel free to contact with Ms. Anita Deng.
Whatsapp/wechat: +86 13329899995
Skype: truck0011
QQ: 504873236
