China cheapest price 25m3 skid lpg gas refilling station for sale,hot sale 25000L skid gas cylinder filling plant
China cheapest price 25m3 skid lpg gas refilling station for sale,hot sale best price 25000L skid propane gas cylinder filling plant
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of bulk lpg gas storage tanks, lpg gas trailer, lpg gas delivery trucks, etc. in China since 2004s. With many years'development, OUR CLW brand pressure vessels have been exported to so many countries all over the world. Recently our CLW brand pressure vessels products pass the ASME certificate, and then our CLW lpg gas tank and lpg gas trailers could been exported to USA, Europ, Taiwan, etc. More information, please feel free to contact with Ms. Anita Deng.
The LPG Skid-Mounted station manufactured by Chengli Special Automobile Co., Ltd. has the following functions.
*Feeding gas to gas vehicles: high quality dispenser is equipped and its measurement is accurate and stable.
*Unloading: The LPG tank car can unload the medium to the storage tank on the skid-mounted plant smoothly
*Drainage: The sundries like water-logging in the storage tank will e drained through the drain outlet.
*Emptying:The residual pressure in storage tank can be released through the emptying port during overgauling.
*Alternative Pumps: Under fault condition, gas filling pump and unloading pump can be mutually alternative.
*Reverse unloading:The liquid on the storage tank can be unloaded to the gas tank car and delivered.
*Emergency cut-off :Air-operated emergency cut-off valve is installed a the liquid outlet on the storage tank, by which the emergency cut-off under abnormal conditions can be achieved.
*Leakage Alarm: Leakage probes are installed in the key positons of the skid-mounted gas station, so as to dect the equipment's security status.
*LIquid Level Alarm: Upper and lower liquid level limit switch are installed. Therefore, it has liquid alarm and control function.
If you're interested in our skid lpg gas station, please feel free to send email to truck0011@163.com or talk to Anita directly by Whatsapp/wechat/Mob.: +86 13329899995.
main parameters of hot sale 25m3 mobile skid-mounted lpg gas station with digital scale as below
|
25 CBM skid-mounted lpg gas filling plant DIMENSIONS |
|||
|
Volume of Tank |
25 CBM |
||
|
Filling Weight |
10000 kg |
||
|
Tank Weight |
5970 kg |
||
|
Thickness of Shell (mm) |
12 mm |
||
|
Thickness of Endplate (mm) |
12 mm |
||
|
Tank Diameter (mm) |
2400 mm |
||
|
External Dimensions (mm) (length x width x height) |
6700 x 2400 x 3800 mm |
||
|
Material of Tank and Main Pressure Parts |
Carbon Steel Q345R |
||
|
Filling Medium |
Liquefied Petroleum Gas ( Propane) |
||
|
Design Pressure |
1.77 MPa |
||
|
Corrosion Allowance |
1 mm |
||
|
Medium Density |
420 kg/ cbm |
||
|
Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China. |
|||
|
Main parts of LPG Tank |
|||
|
Item |
Specification |
Quantity |
|
|
Discharge Pipe |
DN50 |
1 |
|
|
Inflow Pipe |
DN50 |
1 |
|
|
Outlet |
DN50 |
1 |
|
|
Gas phase balance pipes |
DN50 |
2 |
|
|
Manhole |
DN450 |
1 |
|
|
Drain Hole |
DN50 |
1 |
|
|
Electronic LPG Filling Machine |
Can fill 3kg to 150kg gas cylinder with receipt printing |
1 |
|
|
Main accessories: Cut-off Valve, Needle Valve, Safety Valve, Liquid level meter, Pressure gauge, Temperature Gauge. Skid Parts List will be show in separated page below. |
|||
The spare parts for the LPG Skid-station
|
|
Model Number |
Quantity |
|
Tank |
25CBM |
|
|
Cut-off Valve |
DN50 |
6 Pieces |
|
Cut-off Valve |
DN25 |
2 Pieces |
|
Cut-off Valve |
DN80 |
1 Pieces |
|
Needle Valve |
J24W, M20×1.5 |
1 Pieces |
|
Safety Valve |
DN80 |
1 Pieces |
|
Magnetic reversible level gauge |
UZFAL-2.5RF2640-0.50 |
1 Pieces |
|
Pressure gauge |
M20×1.5 1.5Level 0～4MPA |
1 Pieces |
|
Thermometer |
M33×2 2.5Level |
1 Pieces |
|
Accessory |
Quantity |
|
Cut-off Valve |
9Pieces |
|
Compressor |
1.5MPa |
|
Shock-absorbing Tube |
1 Set |
|
Filling pump machine |
2 Pieces |
|
Discharge Pipe |
5 Miters/set, 2sets |
|
Anti static electric motor |
1 Piece |
|
Bottom Base |
1 Unit |
|
Freight |
To Shanghai Port |
More pictures of hot sale mobile skid lpg gas plant as below

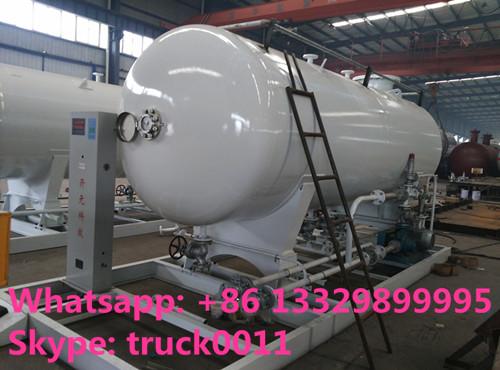

high quality skid lpg gas plant with automatic dispenser for sale

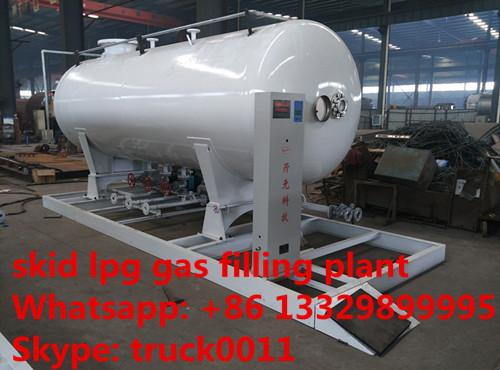

25,000L skid lpg gas refilling plant with digital scale for gas cylinders

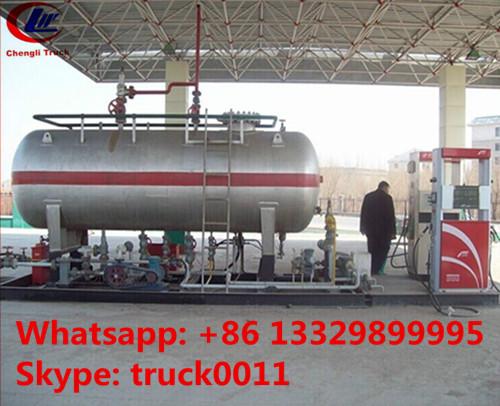

hot sale skid lpg station
More information, please feel free to contact with Ms. Anita Deng.
