32m3 skid mobile lpg gas station, CLW brand best price 16tons skid lpg gas filling plant for automobiles for sale
32m3 skid mobile lpg gas propane station for gas cylinder, CLW brand best price 32m3 skid mounted lpg gas filling plant for automobiles

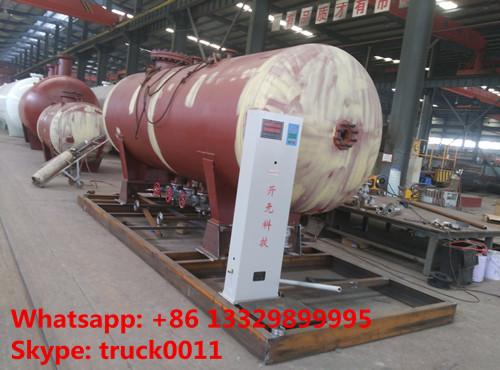

32,000L LPG Skid-Mounted station with LPG tank, dispensers, valves, pumps and skid, etc.
The skid mobile lpg gas propane station is mainly included bulk lpg gas tank, lpg gas pump, cut-off valve, motor, lpg gas disperser machine, filling scale, safety valve, etc.
This kind of integrative skid lpg gas filling station finishing discharging and filling by the pressure inside the tanker, and the working principles similar to the big size lpg gas filling station at home. The layouts of pipelines, such as inlet, outlet and gas phrase, etc. are reasonable, Practical, and artistic, etc.
If you're intertested in our lpg gas pressure vessels, please feel free to send email to truck0011@163.com or talk to Anita directly by whatsapp/wechat/Mob.: +86 13329899995.
32cbm skid-mounted lpg gas station
|
Item |
Unit |
Main parameters |
|
Product name |
|
LPG gas storage tank(32000L) |
|
Product model |
|
CLG2300-32 |
|
Loading medium |
|
LPG gas (propane) |
|
Overall dimension(L*W*H) |
mm |
8158*2324*2914 |
|
Tank dimension(inner diameter*thickness*length) |
mm |
DN2300*12*8158 |
|
Tank volume |
m3 |
32 |
|
Tank thickness |
mm |
12 |
|
End heads thickness |
mm |
14 |
|
Curb mass |
kg |
7110 |
|
Rated mass |
Kg |
12768 |
|
Designed pressure |
Mpa |
1.77 |
|
Working pressure |
Mpa |
≤1.6 |
|
Working temperature |
℃ |
≤50 |
|
Hydraulic test pressure |
Mpa |
2.22 |
|
Air tight test pressure |
Mpa |
1.77 |
|
Tank and main Material pressure components |
Q345R,16Mnlll |
|
|
Standard |
<<GB150steel pressure vessel>>,<<Supervision Regulation on Safety Technology for Pressure Vessel>>
|
|
|
Chosen assembly |
Safety valve, magic level gauge, pressure gauge, temperature gauge, cut-off valve, etc.
|
|
|
Main parts of LPG Tank |
||
|
Item |
Specification |
Quantity |
|
Discharge Pipe |
DN50 |
1 |
|
Inflow Pipe |
DN50 |
1 |
|
Outlet |
DN50 |
1 |
|
Gas phase balance pipes |
DN50 |
2 |
|
Manhole |
DN450 |
1 |
|
Drain Hole |
DN50 |
1 |
|
Electronic LPG Filling Machine |
Can fill 0.5kg to 150kg gas cylinder with receipt printing |
1 |
|
Main accessories: Cut-off Valve, Needle Valve, Safety Valve, Liquid level meter, Pressure gauge, Temperature Gauge. Skid Parts List will be show in separated page below. |
||
The spare parts for the LPG Skid-station
|
|
Model Number |
Quantity |
|
Tank |
32CBM |
|
|
Cut-off Valve |
DN50 |
6 Pieces |
|
Cut-off Valve |
DN25 |
2 Pieces |
|
Cut-off Valve |
DN80 |
1 Pieces |
|
Needle Valve |
J24W, M20×1.5 |
1 Pieces |
|
Safety Valve |
DN80 |
1 Pieces |
|
Magnetic reversible level gauge |
UZFAL-2.5RF2640-0.50 |
1 Pieces |
|
Pressure gauge |
M20×1.5 1.5Level 0～4MPA |
1 Pieces |
|
Thermometer |
M33×2 2.5Level |
1 Pieces |
|
Accessory |
Quantity |
|
Cut-off Valve |
9Pieces |
|
Compressor |
1.5MPa |
|
Shock-absorbing Tube |
1 Set |
|
Filling pump machine |
2 Pieces |
|
Discharge Pipe |
5 Miters/set, 2sets |
|
Anti static electric motor |
1 Piece |
|
Bottom Base |
1 Unit |
|
Freight |
To Shanghai Port |

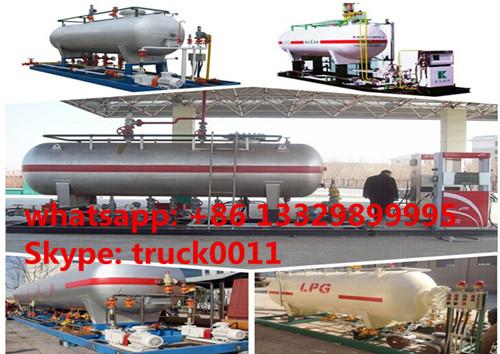

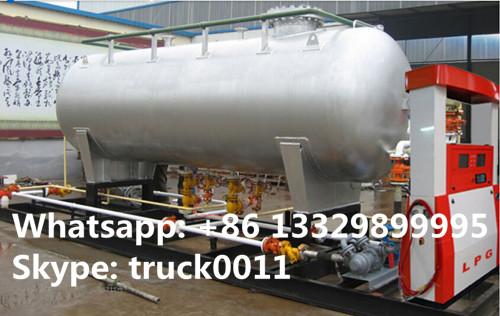

More pictures of hot sale 32M3 skid lpg gas tank with lpg gas tank, dispenser, valves, pump, etc.
|
Main parts of LPG Tank |
||
|
Item |
Specification |
Quantity |
|
Discharge Pipe |
DN50 |
1 |
|
Inflow Pipe |
DN50 |
1 |
|
Outlet |
DN50 |
1 |
|
Gas phase balance pipes |
DN50 |
2 |
|
Manhole |
DN450 |
1 |
|
Drain Hole |
DN50 |
1 |
|
Electronic LPG Filling Machine |
Can fill 0.5kg to 150kg gas cylinder with receipt printing |
1 |
|
Main accessories: Cut-off Valve, Needle Valve, Safety Valve, Liquid level meter, Pressure gauge, Temperature Gauge. Skid Parts List will be show in separated page below. |
||
The spare parts for the LPG Skid-station
|
|
Model Number |
Quantity |
|
Tank |
32CBM |
|
|
Cut-off Valve |
DN50 |
6 Pieces |
|
Cut-off Valve |
DN25 |
2 Pieces |
|
Cut-off Valve |
DN80 |
1 Pieces |
|
Needle Valve |
J24W, M20×1.5 |
1 Pieces |
|
Safety Valve |
DN80 |
1 Pieces |
|
Magnetic reversible level gauge |
UZFAL-2.5RF2640-0.50 |
1 Pieces |
|
Pressure gauge |
M20×1.5 1.5Level 0～4MPA |
1 Pieces |
|
Thermometer |
M33×2 2.5Level |
1 Pieces |
|
Accessory |
Quantity |
|
Cut-off Valve |
9Pieces |
|
Compressor |
1.5MPa |
|
Shock-absorbing Tube |
1 Set |
|
Filling pump machine |
2 Pieces |
|
Discharge Pipe |
5 Miters/set, 2sets |
|
Anti static electric motor |
1 Piece |
|
Bottom Base |
1 Unit |
|
Freight |
To Shanghai Port |
