45,000L lpg skid-mounted filling station with gas dispenser, 45m3 lpg mounted skid refilling station for gas cylinders
45,000L lpg skid-mounted filling station with gas dispenser, 45m3 lpg mounted skid refilling station for gas cylinders for sale
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of lpg gas pressure vessels, such as bulk lpg tank, lpg gas trailer, lpg gas truck, skid lpg gas filling plant, lpg gas bobtail vehicle, lpg gas dispensing truck, etc. And recently, our company lpg gas pressure vessesl products have passed ASME. That is to say, our lpg pressure vessels can be exported to USA, Europe, etc.
> LPG storage tank with capacity of 5cbm up to 120cbm
> Color : as per customer request
> Dispenser:one gun or two gun dispenser available
> LPG Filling pump with motor
> LPG discharging pump with motor
> LPG hose assembly and quick connector
> Safety Valve+Liquid Level Indication + Pressure Gauge + Thermometer etc
> Other valves and necessary accessories for the operation of lpg filling station
The skid mobile lpg gas propane station is mainly included bulk lpg gas tank, lpg gas pump, cut-off valve, motor, lpg gas disperser machine, filling scale, safety valve, etc.
This kind of integrative skid lpg gas filling station finishing discharging and filling by the pressure inside the tanker, and the working principles similar to the big size lpg gas filling station at home. The layouts of pipelines, such as inlet, outlet and gas phrase, etc. are reasonable, Practical, and artistic, etc.
If you're interested in our skid lpg gas station, please feel free to send email to truck0011@163.com or talk to Anita directly by whatsapp/wechat/Mob.: +86 13329899995.
The main parameters of 45,000L skid lpg gas refilling plant as below
|
45 CBM LPG TANK DIMENSIONS |
|||
|
Volume of Tank |
45 CBM |
||
|
Filling Weight |
17,955 kg |
||
|
Tank Weight |
10,220 kg |
||
|
Thickness of Shell (mm) |
14 mm |
||
|
Thickness of Endplate (mm) |
16 mm |
||
|
Tank Diameter (mm) |
2700 mm |
||
|
External Dimensions (mm) (length x width x height) |
8372 x 2728 x 3318 mm |
||
|
Material of Tank and Main Pressure Parts |
Carbon Steel Q345R |
||
|
Filling Medium |
Liquefied Petroleum Gas ( Propane) |
||
|
Design Pressure |
1.77 MPa |
||
|
Corrosion Allowance |
1 mm |
||
|
Medium Density |
0.42 kg/ cbm |
||
|
Working pressure |
≤1.6Mpa |
||
|
Working temperature |
≤50 |
||
|
Hydraulic test pressure |
2.22 |
||
|
Air tight test pressure |
1.77 |
||
|
Filling ratio |
0.95 |
||
|
Heat treatment |
Stress relief |
||
|
Service time |
15 years |
||
|
Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China. |
|||
|
Main parts of LPG Tank |
|||
|
Item |
Specification |
Quantity |
|
|
Discharge Pipe |
DN50 |
1 |
|
|
Inflow Pipe |
DN50 |
1 |
|
|
Outlet |
DN50 |
1 |
|
|
Gas phase balance pipes |
DN50 |
2 |
|
|
Manhole |
DN450 |
1 |
|
|
Drain Hole |
DN50 |
1 |
|
|
Electronic LPG Filling Machine |
Can fill 0.5kg to 150kg gas cylinder with receipt printing |
1 |
|
|
Main accessories: Cut-off Valve, Needle Valve, Safety Valve, Liquid level meter, Pressure gauge, Temperature Gauge. Skid Parts List will be show in separated page below. |
|||
The spare parts for the LPG Skid-station
|
|
Model Number |
Quantity |
|
Tank |
45CBM |
|
|
Cut-off Valve |
DN50 |
6 Pieces |
|
Cut-off Valve |
DN25 |
2 Pieces |
|
Cut-off Valve |
DN80 |
1 Pieces |
|
Needle Valve |
J24W, M20×1.5 |
1 Pieces |
|
Safety Valve |
DN80 |
1 Pieces |
|
Magnetic reversible level gauge |
UZFAL-2.5RF2640-0.50 |
1 Pieces |
|
Pressure gauge |
M20×1.5 1.5Level 0～4MPA |
1 Pieces |
|
Thermometer |
M33×2 2.5Level |
1 Pieces |
|
Accessory |
Quantity |
|
Cut-off Valve |
9Pieces |
|
Compressor |
1.5MPa |
|
Shock-absorbing Tube |
1 Set |
|
Filling pump machine |
2 Pieces |
|
Discharge Pipe |
5 Miters/set, 2sets |
|
Anti static electric motor |
1 Piece |
|
Bottom Base |
1 Unit |
|
Freight |
To Shanghai Port |
45,000 liter skid lpg gas station
|
Item |
Unit |
Specification |
|
|
Loading object |
|
CLW45-2700 |
|
|
Material |
|
Propane Gas |
|
|
Designed loading Parameter |
Option |
Q345R, 16MnIII, Q370R |
|
|
Kg/m3 |
420~ 500 |
||
|
Dimension |
mm |
8342*2728*3318 |
|
|
Loading capacity |
Kg |
17,955 |
|
|
Designed Pressure |
Mpa |
1.77 |
|
|
Max Working Pressure |
Mpa |
<=1.6 |
|
|
Designed Temperature |
C |
-20~50 |
|
|
Volume |
m3 |
45cbm |
|
|
Body thick |
mm |
14 |
|
|
End head thick |
mm |
16 |
|
|
Man Hole |
mm |
450 |
|
|
Top Safety Valve Port |
mm |
80 |
|
|
Life Year |
Year |
10 |
|
|
Input and output |
|||
|
Liquid input Port |
mm |
DN50 ( 2 Inch) |
2.5Mpa |
|
Liquid Output Port |
mm |
DN50 (2 Inch) |
2.5Mpa |
|
Bottom Air gas input Port |
mm |
DN50 (2 Inch) |
2.5Mpa |
|
Waste Liquid Output Port |
mm |
DN50 (3 Inch) |
2.5Mpa |
|
Top Gas Let Out Port |
mm |
DN50 (3 Inch) |
2.5Mpa |
|
Liquid Level Indicator Port |
mm |
DN20 |
2.5Mpa |
|
Essential Device for option |
|||
|
Safety Valve, Temperature Gague, Pressure Gauge |
|||
|
Option~ flange |
|||
|
Production Standard |
|||
|
China GB 150 Pressure Vessel Manufacturer Standard, Or ASME Standard |
|||
|
Designed Valid Year, at least 10 year |
|||

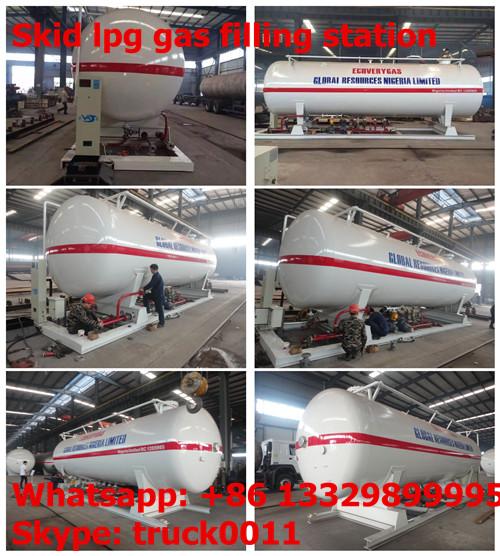

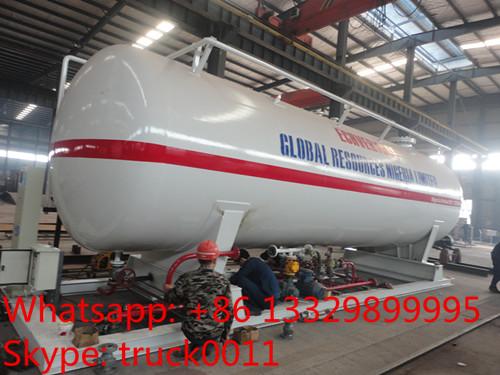

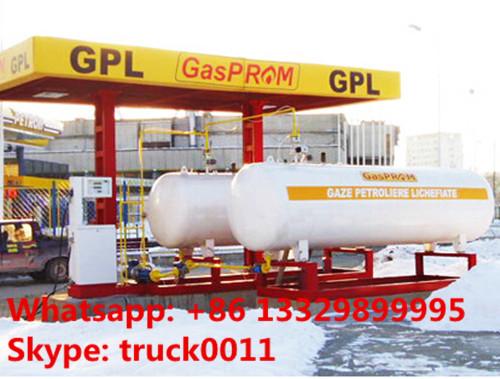

More pictures of hot sale 45m3 skid lpg gasa filling plant as below.
More information, please feel free to contact with Ms. Anita Deng.
Whatsapp/wechat: +86 13329899995
Skype: truck0011
QQ: 504873236
