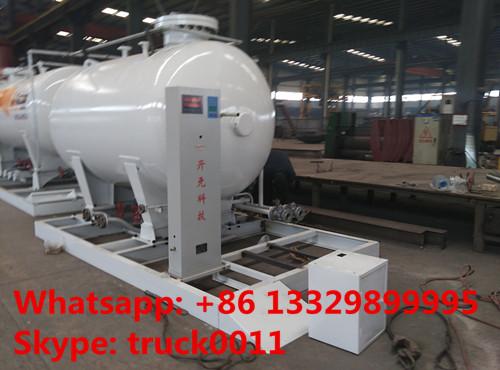

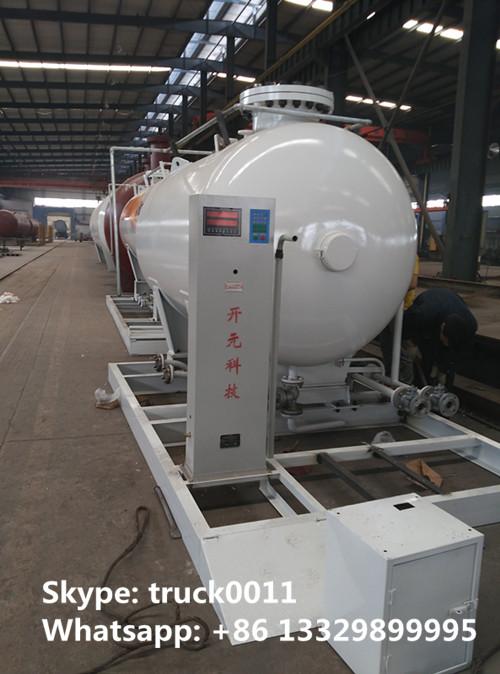

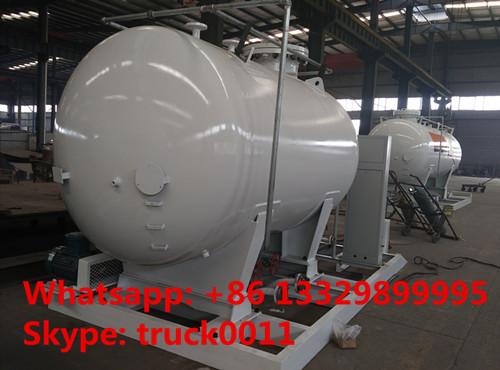

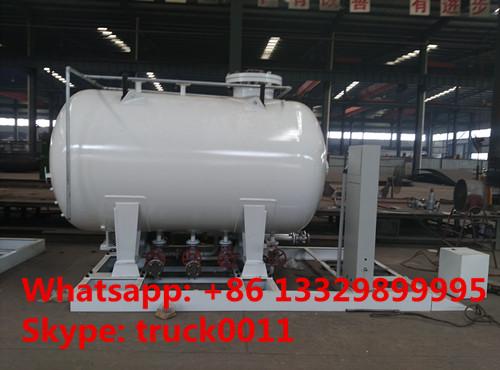

8,000Liters mobile skide mounted lpg gas propane filling station for gas cylinder for sale, skid lpg gas plant for sale

8 CBM LPG SKID STATION DIMENSIONS

Volume of Tank

8,000L

Filling Weight

3192 kg

Tank Weight

2540 kg

Thickness of Shell (mm)

10 mm

Thickness of Endplate (mm)

10 mm

Tank Diameter (mm)

1600 mm

External Dimensions (mm) (length x width x height)

5070x 1650 x 2910 mm

Material of Tank and Main Pressure Parts

Carbon Steel Q345R

Filling Medium

Liquefied Petroleum Gas ( Propane)

Design Pressure

1.77 MPa

Corrosion Allowance

1 mm

Medium Density

420 kg/ cbm

Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China.

Main parts of LPG Tank

Item

Specification

Quantity

Discharge Pipe

DN50

1

Inflow Pipe

DN50

1

Outlet

DN50

1

Gas phase balance pipes

DN50

2

Manhole

DN450

1

Drain Hole

DN50

1

Electronic LPG Filling Machine

Can fill 0.5kg to 150kg gas cylinder

with receipt printing

1

Main accessories: Cut-off Valve, Needle Valve, Safety Valve, Liquid level meter,

Pressure gauge, Temperature Gauge.

Skid Parts List will be show in separated page below.

Model Number

Quantity

Tank

10CBM

Cut-off Valve

DN50

6 Pieces

Cut-off Valve

DN25

2 Pieces

Cut-off Valve

DN50

1 Pieces

Needle Valve

J24W, M20×1.5

1 Pieces

Safety Valve

DN50

1 Pieces

Magnetic reversible level gauge

UZFAL-2.5RF2640-0.50

1 Pieces

Pressure gauge

M20×1.5 1.5Level 0～4MPA

1 Pieces

Thermometer

M33×2 2.5Level

1 Pieces

Accessory

Quantity

Cut-off Valve

9Pieces

Shock-absorbing Tube

1 Set

Filling pump machine

2 Pieces

Discharge Pipe

5 Miters/set, 2sets

Anti static electric motor

1 Piece

Bottom Base

1 Unit
