mini CLW brand mobile skid mounted lpg gas station for refilling 1-150kgs gas cylinders, mini CLW skid lpg gas plant
mini CLW brand mobile skid mounted lpg gas station for refilling 1-150kgs gas cylinders, mini CLW skid lpg gas plant
We Chengli Special Automobile Co., Ltd. can offer complete LPG Station skid with dual option of Auto vehicle filling and domestic cylinder filling, this station can be on wheels for remote filling or fixed type at site. More information, please feel free to contact with Ms. Anita Deng.
Skid lpg gas station is also called lpg skid-mounted filling station LPG GAS dispenser, Mobile Skid LPG Gas Station,]lpg mounted skid refilling station, LPG FILLING SKID STATION, lpg filling station skid-mounted moving, lpg propane skid station, LPG skid station gas station, lpg skid-mounted filling station, LPG Skid-Mounted station with LPG tank, dispensers, valves, pumps and skid, etc.
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of lpg gas pressure vessels, such as bulk lpg tank, lpg gas trailer, lpg gas truck, skid lpg gas filling plant, lpg gas bobtail vehicle, lpg gas dispensing truck, etc. And recently, our company lpg gas pressure vessesl products have passed ASME. That is to say, our lpg pressure vessels can be exported to USA, Europe, etc.
> LPG storage tank with capacity of 5cbm up to 120cbm
> Color : as per customer request
> Dispenser:one gun or two gun dispenser available
> LPG Filling pump with motor
> LPG discharging pump with motor
> LPG hose assembly and quick connector
> Safety Valve+Liquid Level Indication + Pressure Gauge + Thermometer etc
> Other valves and necessary accessories for the operation of lpg filling station.
If you're interested in our skid lpg gas station, please feel free to send email to truck0011@163.com or talk to Anita by whatsapp/wechat/Mob.: +86 13329899995.
mobile skid lpg gas refilling station for sale
Main parameters of hot sale mini mobile skid lpg gas station as below
| Product | skid-mounted lpg gas filling station for sale |
| Structural form | Integral type, separated type |
| Install Method | Above-ground, under-ground |
| System Approach | Double pump system, single pump system |
| Storage Tank Volume(M³) | 5, 8,10, 15, 20, 25, 30, 32, 40, 45, etc. |
| Design pressure of storage tank | 1.77Mpa |
| Design pressure of pipe | 2.5Mpa |
| Turn on pressure of safety valve | 1.75Mpa |
| Ambient Temperature | -40-55℃ |
| Ambint Humidity | 10~95% |
| Dimension of skid-mounted body | Up to customer's requirement |
| Volume: | 5000L-120,000L |
| Tank material: | Q345R |
| Tank diameter: | 1600mm |
| Tank thickness: | 10mm |
| Tank length: | 3059mm |
| Filling gas | Propane(LPG) |
| Design Pressure: | 1.61Mpa |
| Filling parts | |
| Lpg gas Pump | 1 |
| LPG gas Dispenser | 1 |
| Reel Pipeline | 15m |
| Filling nozzle | Suitable for different kinds of gas cylinders. |
| Accessory | |
| Manhole | 1 |
| Safety Valve | 1 |
| Tool Box | 1 |
| Valve Box | 1 |
| Thermometer | 1 |
| Pressure Gauge | 1 |
| Emergency Valve | 1 |
| Fender | Steel |
| Fire Extinguisher | 2 |
| Anti-static Tape | 1 |
| Paint | As required |
| Standard | |
| Pressure vessels, Supervision Regulation on Safety Technology for Pressure Vessels | |

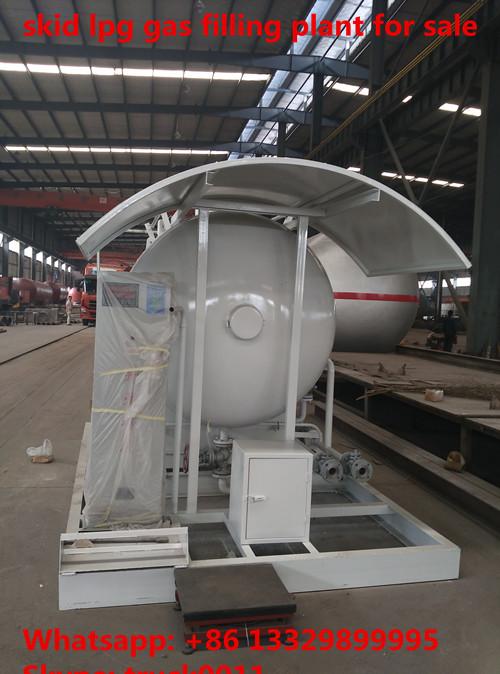

More pictures of hot sale skid lpg gas plant as below

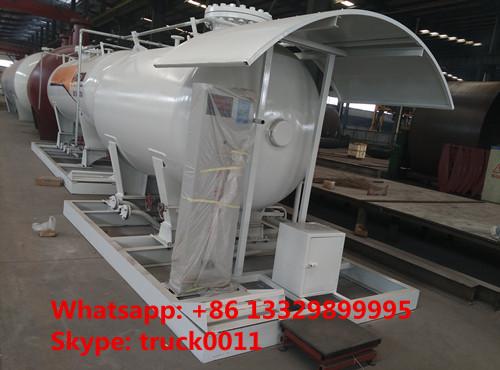

mini skid lpg gas plant for sale
More information, please feel free to contact with Ms. Anita.
Whatsapp/wechat: +86 13329899995
