20cubic meters LPG Skid-Mounted station with LPG tank, dispensers, valves, pumps and skid; hot sale skid lpg gas plant
20cubic meters LPG Skid-Mounted station with LPG tank, dispensers, valves, pumps and skid; hot sale best price skid lpg gas plant
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of lpg gas pressure vessels, such as bulk lpg tank, lpg gas trailer, lpg gas truck, skid lpg gas filling plant, lpg gas bobtail vehicle, lpg gas dispensing truck, etc. And recently, our company lpg gas pressure vessesl products have passed ASME. That is to say, our lpg pressure vessels can be exported to USA, Europe, etc.
> LPG storage tank with capacity of 5cbm up to 120cbm
> Color : as per customer request
> Dispenser:one gun or two gun dispenser available
> LPG Filling pump with motor
> LPG discharging pump with motor
> LPG hose assembly and quick connector
> Safety Valve+Liquid Level Indication + Pressure Gauge + Thermometer etc
> Other valves and necessary accessories for the operation of lpg filling station.
If you're interested in our 20,000Liters skid lpg gas station, please feel free to send email to truck0011@163.com or talk to Anita directly by whatsapp/wechat/Mob.: +86 13329899995.
Main parameters of hot sale 20m3 skid lpg gas plant as below
|
20 CBM LPG TANK DIMENSIONS |
|||
|
Volume of Tank |
20 CBM |
||
|
Filling Weight |
8,000 kg |
||
|
Tank Weight |
5050 kg |
||
|
Thickness of Shell (mm) |
12 mm |
||
|
Thickness of Endplate (mm) |
12 mm |
||
|
Tank Diameter (mm) |
2100 mm |
||
|
External Dimensions (mm) (length x width x height) |
7500 x 2024 x 3450 mm |
||
|
Material of Tank and Main Pressure Parts |
Carbon Steel Q345R |
||
|
Filling Medium |
Liquefied Petroleum Gas ( Propane) |
||
|
Design Pressure |
1.77 MPa |
||
|
Corrosion Allowance |
1 mm |
||
|
Medium Density |
420 kg/ cbm |
||
|
Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China. |
|||
|
Main parts of LPG Tank |
|||
|
Item |
Specification |
Quantity |
|
|
Discharge Pipe |
DN50 |
1 |
|
|
Inflow Pipe |
DN50 |
1 |
|
|
Outlet |
DN50 |
1 |
|
|
Gas phase balance pipes |
DN50 |
2 |
|
|
Manhole |
DN450 |
1 |
|
|
Drain Hole |
DN50 |
1 |
|
|
Electronic LPG Filling Machine |
Can fill 0.5kg to 150kg gas cylinder with receipt printing |
1 |
|
|
Main accessories: Cut-off Valve, Needle Valve, Safety Valve, Liquid level meter, Pressure gauge, Temperature Gauge. Skid Parts List will be show in separated page below. |
|||
The spare parts for the LPG Skid-station
|
|
Model Number |
Quantity |
|
Tank |
20CBM |
|
|
Cut-off Valve |
DN50 |
6 Pieces |
|
Cut-off Valve |
DN25 |
2 Pieces |
|
Cut-off Valve |
DN80 |
1 Pieces |
|
Needle Valve |
J24W, M20×1.5 |
1 Pieces |
|
Safety Valve |
DN80 |
1 Pieces |
|
Magnetic reversible level gauge |
UZFAL-2.5RF2640-0.50 |
1 Pieces |
|
Pressure gauge |
M20×1.5 1.5Level 0～4MPA |
1 Pieces |
|
Thermometer |
M33×2 2.5Level |
1 Pieces |
|
Accessory |
Quantity |
|
Cut-off Valve |
9Pieces |
|
|
|
|
Shock-absorbing Tube |
1 Set |
|
Filling pump machine |
2 Pieces |
|
Discharge Pipe |
5 Miters/set, 2sets |
|
Anti static electric motor |
1 Piece |
|
Bottom Base |
1 Unit |
|
Compressor |
1.5MPa (choose to install, used to fill lpg gas truck, etc.) |

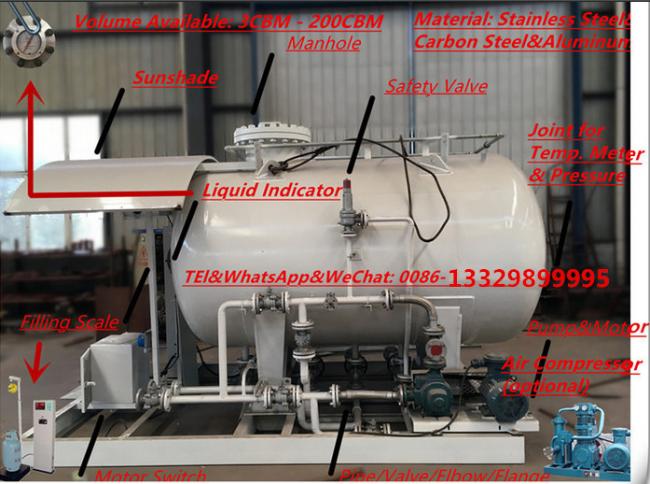

More pictures of hot sale lpg gas skid-mounted station with lpg gas tank, dispenser, valves, pumps, motor, and skid, etc. as below.

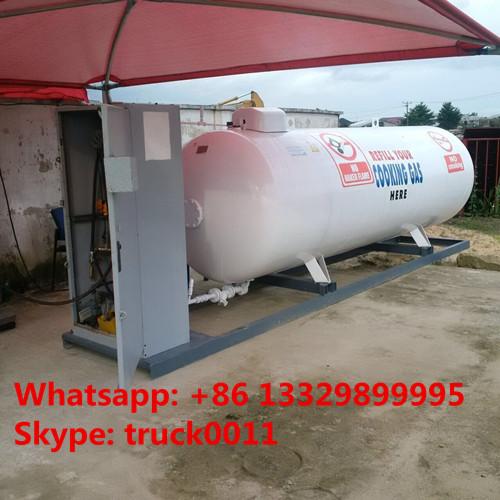

hot sale skid lpg gas plant

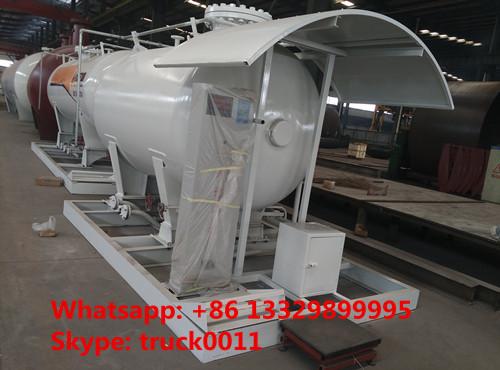

CLW brand best price skid lpg gas filling plant for sale
Best price CLW Brand mobile skid-mounted lpg gas station for sale
More information, please feel free to contact with Ms. Anita Deng.
Whatsapp/wechat: +86 13329899995;
Skype: truck0011;
QQ: 504873236
