best price 90,000L skid lpg gas plant with electronic scale, pump, motor, and skid for sale; skid lpg station for sale
best price 90,000L skid lpg gas plant with electronic scale, pump, motor, and skid for sale; skid lpg station for sale
We Chengli Special Automobile Co., Ltd. can offer complete LPG Station skid with dual option of Auto vehicle filling and domestic cylinder filling, this station can be on wheels for remote filling or fixed type at site. More information, please feel free to contact with Ms. Anita Deng.
Lpg gas skid station, is also called skid system lpg station, propane lpg skid-mounted filling station, lpg mounted skid refilling station, mobile lpg filling station, lpg skid station with dispenser and weight scale, lpg gas cylinder filling station, etc.
If you're interested in our skid lpg gas station, please feel free to send email to truck0011@163.com or talk to Anita directly by whatsapp/wechat/Mob.: +86 13329899995.

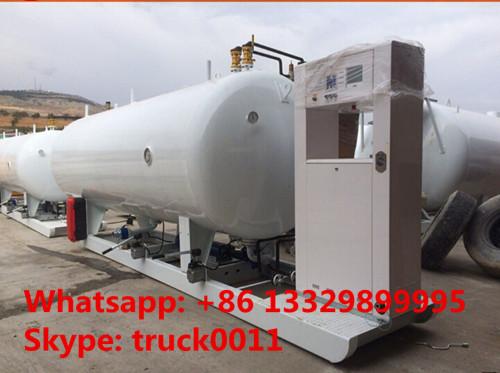

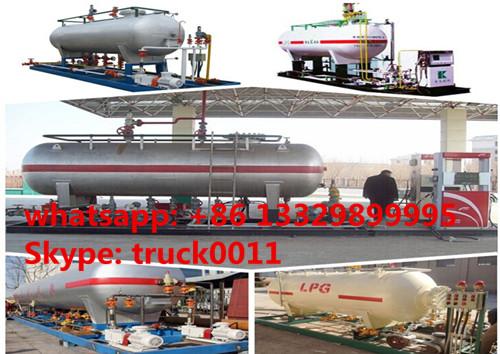

More pictures of hot sale 90,000L mobile skid-mpounted lpg gas refilling plant as below.
90,000L mobile skid-mounted lpg gas refilling plant as below
|
Item |
Unit |
Main parameters |
|
Product name |
|
LPG gas storage tank(90,000L) |
|
Product model |
|
CLG3100-90 |
|
Loading medium |
|
LPG gas (propane) |
|
Overall dimension(L*W*H) |
mm |
12,482*3,182*3,722 |
|
Tank dimension(inner diameter*thickness*length) |
mm |
DN3100*16*12,482 |
|
Tank volume |
m3 |
90 |
|
Tank thickness |
mm |
16 |
|
End heads thickness |
mm |
18 |
|
Curb mass |
kg |
18,840 |
|
Loading capacity |
Kg |
35,910 |
|
Designed pressure |
Mpa |
1.77 |
|
Working pressure |
Mpa |
≤1.6 |
|
Working temperature |
℃ |
≤50 |
|
Hydraulic test pressure |
Mpa |
2.22 |
|
Air tight test pressure |
Mpa |
1.77 |
|
Tank and main Material pressure components |
Q345R,16Mnlll |
|
|
Standard |
<<GB150steel pressure vessel>>,<<Supervision Regulation on Safety Technology for Pressure Vessel>>
|
|
|
Chosen assembly |
Safety valve, magic level gauge, pressure gauge, temperature gauge, cut-off valve, etc.
|
|
|
Main parts of LPG Tank |
||
|
Item |
Specification |
Quantity |
|
Discharge Pipe |
DN50 |
1 |
|
Inflow Pipe |
DN50 |
1 |
|
Outlet |
DN50 |
1 |
|
Gas phase balance pipes |
DN50 |
2 |
|
Manhole |
DN450 |
1 |
|
Drain Hole |
DN50 |
1 |
|
Electronic LPG Filling Machine |
Can fill 0.5kg to 150kg gas cylinder |
1 |
|
Main accessories: Cut-off Valve, Needle Valve, Safety Valve, Liquid level meter, Pressure gauge, Temperature Gauge. Skid Parts List will be show in separated page below. |
||
The spare parts for the LPG Skid-station
|
|
Model Number |
Quantity |
|
Tank |
90,000L |
|
|
Cut-off Valve |
DN50 |
6 Pieces |
|
Cut-off Valve |
DN25 |
2 Pieces |
|
Cut-off Valve |
DN80 |
1 Pieces |
|
Needle Valve |
J24W, M20×1.5 |
1 Pieces |
|
Safety Valve |
DN80 |
1 Pieces |
|
Magnetic reversible level gauge |
UZFAL-2.5RF2640-0.50 |
1 Pieces |
|
Pressure gauge |
M20×1.5 1.5Level 0～4MPA |
1 Pieces |
|
Thermometer |
M33×2 2.5Level |
1 Pieces |
|
Accessory |
Quantity |
|
Cut-off Valve |
9Pieces |
|
Shock-absorbing Tube |
1 Set |
|
Filling pump machine |
2 Pieces |
|
Discharge Pipe |
5 Miters/set, 2sets |
|
Anti static electric motor |
1 Piece |
|
Bottom Base |
1 Unit |
|
Compressor |
1.5MPa( choose to install, used to fill lpg gas truck) |
|
Freight |
To Shanghai Port |
|
Item |
Unit |
Main parameters |
|
Product name |
|
LPG gas storage tank(90,000L) |
|
Product model |
|
CLG3100-90 |
|
Loading medium |
|
LPG gas (propane) |
|
Overall dimension(L*W*H) |
mm |
12,482*3,182*3,722 |
|
Tank dimension(inner diameter*thickness*length) |
mm |
DN3100*16*12,482 |
|
Tank volume |
m3 |
90 |
|
Tank thickness |
mm |
16 |
|
End heads thickness |
mm |
18 |
|
Curb mass |
kg |
18,840 |
|
Loading capacity |
Kg |
35,910 |
|
Designed pressure |
Mpa |
1.77 |
|
Working pressure |
Mpa |
≤1.6 |
|
Working temperature |
℃ |
≤50 |
|
Hydraulic test pressure |
Mpa |
2.22 |
|
Air tight test pressure |
Mpa |
1.77 |
|
Tank and main Material pressure components |
Q345R,16Mnlll |
|
|
Standard |
<<GB150steel pressure vessel>>,<<Supervision Regulation on Safety Technology for Pressure Vessel>>
|
|
|
Chosen assembly |
Safety valve, magic level gauge, pressure gauge, temperature gauge, cut-off valve, etc.
|
|
|
Main parts of LPG Tank |
||
|
Item |
Specification |
Quantity |
|
Discharge Pipe |
DN50 |
1 |
|
Inflow Pipe |
DN50 |
1 |
|
Outlet |
DN50 |
1 |
|
Gas phase balance pipes |
DN50 |
2 |
|
Manhole |
DN450 |
1 |
|
Drain Hole |
DN50 |
1 |
|
Electronic LPG Filling Machine |
Can fill 0.5kg to 150kg gas cylinder |
1 |
|
Main accessories: Cut-off Valve, Needle Valve, Safety Valve, Liquid level meter, Pressure gauge, Temperature Gauge. Skid Parts List will be show in separated page below. |
||
The spare parts for the LPG Skid-station
|
|
Model Number |
Quantity |
|
Tank |
90,000L |
|
|
Cut-off Valve |
DN50 |
6 Pieces |
|
Cut-off Valve |
DN25 |
2 Pieces |
|
Cut-off Valve |
DN80 |
1 Pieces |
|
Needle Valve |
J24W, M20×1.5 |
1 Pieces |
|
Safety Valve |
DN80 |
1 Pieces |
|
Magnetic reversible level gauge |
UZFAL-2.5RF2640-0.50 |
1 Pieces |
|
Pressure gauge |
M20×1.5 1.5Level 0～4MPA |
1 Pieces |
|
Thermometer |
M33×2 2.5Level |
1 Pieces |
|
Accessory |
Quantity |
|
Cut-off Valve |
9Pieces |
|
Shock-absorbing Tube |
1 Set |
|
Filling pump machine |
2 Pieces |
|
Discharge Pipe |
5 Miters/set, 2sets |
|
Anti static electric motor |
1 Piece |
|
Bottom Base |
1 Unit |
|
Compressor |
1.5MPa( choose to install, used to fill lpg gas truck) |
|
Freight |
To Shanghai Port |
More information, please feel free to contact with Ms. Anita.
Whatsapp/wechat: +86 13329899995
Skype: truck0011
QQ: 504873236
