120,000L mobile skid-mounted lpg gas refilling plant for 1-150kgs steel gas cylinders, skid lpg gas station for sale
120,000L mobile skid-mounted lpg gas refilling plant for 1-150kgs steel gas cylinders, skid lpg gas station for sale
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of lpg gas pressure vessels in China, such as surface lpg gas tank, underground lpg gas tank, lpg gas trailer, lpg gas truck, lpg gas dispensing truck, skid lpg gas refilling station, etc.
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of lpg gas pressure vessels in China. With many years’ development, Chengli can manufacture and sell surface/underground lpg gas storage tanks, lpg gas tank semitrailer, lpg gas truck, lpg gas bobtail vehicle, skid lpg gas refilling station, etc.And last year, our CLW brand lpg gas pressure vessels have passed USA ASME standard. That is to say, our CLW brand lpg gas storage tanks can be esxported to USA, European countries.
Welcome more and more clients all over the world to visit our CLW Group and purchase our CLW brand high quality and best price lpg gas pressure vessels.
If you're interested in our skid lpg gas station, please feel free to send email to truck0011@163.com or talk to Anita directly by whatsapp/wechat/MoB.: +86 13329899995.
the main parameters of hot sale 120,000L mobile skid lpg gas refilling station as below.
|
Item |
Unit |
Main parameters |
|
Product name |
|
LPG gas storage tank(120,000L) |
|
Product model |
|
CLG3400-120 |
|
Loading medium |
|
LPG gas (propane) |
|
Overall dimension(L*W*H) |
mm |
13820*3,436*3,722 |
|
Tank dimension(inner diameter*thickness*length) |
mm |
DN3400*18*13820 |
|
Tank volume |
m3 |
120 |
|
Tank thickness |
mm |
18 |
|
End heads thickness |
mm |
20 |
|
Curb mass |
kg |
24,960 |
|
Loading capacity |
Kg |
47880 |
|
Designed pressure |
Mpa |
1.77 |
|
Working pressure |
Mpa |
≤1.6 |
|
Working temperature |
℃ |
≤50 |
|
Hydraulic test pressure |
Mpa |
2.22 |
|
Air tight test pressure |
Mpa |
1.77 |
|
Tank and main Material pressure components |
Q345R,16Mnlll |
|
|
Standard |
<<GB150steel pressure vessel>>,<<Supervision Regulation on Safety Technology for Pressure Vessel>>
|
|
|
Main parts of LPG Tank |
||
|
Item |
Specification |
Quantity |
|
Discharge Pipe |
DN50 |
1 |
|
Inflow Pipe |
DN50 |
1 |
|
Outlet |
DN50 |
1 |
|
Gas phase balance pipes |
DN50 |
2 |
|
Manhole |
DN450 |
1 |
|
Drain Hole |
DN50 |
1 |
|
Electronic scale with refilling nozzle (electronic scale with receipt printing is optional) |
Can fill 0.5kg to 150kg gas cylinders |
1 |
|

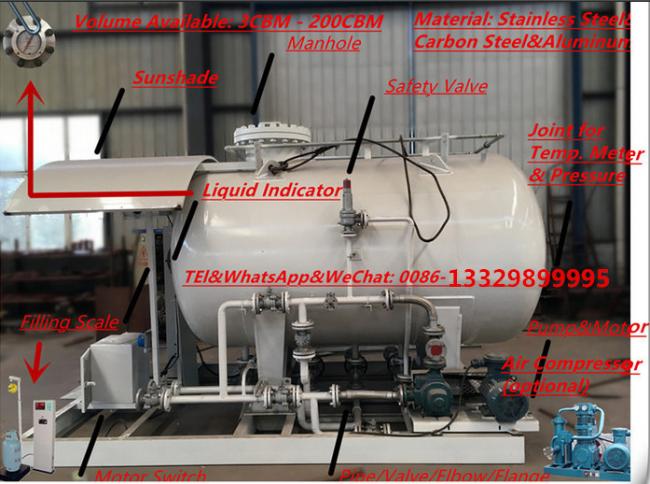

Main accessories:Cut-off Valve, Needle Valve, Safety Valve, Liquid level meter, Pressure gauge, Temperature Gauge. Skid Parts List will be show in separated page below. |
||
The spare parts for the LPG Skid-station
|
|
Model Number |
Quantity |
|
Tank |
120,000L |
|
|
Cut-off Valve |
DN50 |
6 Pieces |
|
Cut-off Valve |
DN25 |
2 Pieces |
|
Cut-off Valve |
DN80 |
1 Pieces |
|
Needle Valve |
J24W, M20×1.5 |
1 Pieces |
|
Safety Valve |
DN80 |
1 Pieces |
|
Magnetic reversible level gauge |
UZFAL-2.5RF2640-0.50 |
1 Pieces |
|
Pressure gauge |
M20×1.5 1.5Level 0～4MPA |
1 Pieces |
|
Thermometer |
M33×2 2.5Level |
1 Pieces |
|
Accessory |
Quantity |
|
Cut-off Valve |
9Pieces |
|
Shock-absorbing Tube |
1 Set |
|
Filling pump machine |
2 Pieces |
|
Discharge Pipe |
5 Miters/set, 2sets |
|
Anti static electric motor |
1 Piece |
|
Bottom Base |
1 Unit |

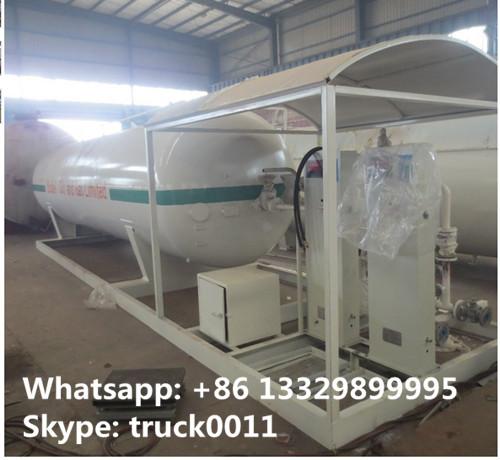

More pictures of hot sale 12m3 skid lpg gas refilling station as below
CLW brand skid lpg gas refilling station for sale
