China best price 2-60tons mobile skid lpg gas refilling plant with double electronic scales and nozzles for sale
China best price 2-60tons mobile skid lpg gas refilling plant with double electronic scales and nozzles for sale
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of lpg gas pressure vessels in China. Our CLW lpg gas pressure vessels(lpg gas storage tank, lpg gas trailer, lpg gas truck, lpg gas dispensing truck, skid lpg gas filling plant) have been exported to so many countries all over the world. And to meet the needs of the international market, Chengli Special Automoile Co., Ltd. lpg gas pressure vessel factory design and manufacture lpg gas dispensing truck and skid lpg gas filling plant. And last year, we design and produce the first skid lpg gas filling plant for Nigerian client with 40,000L. The client was satisified with the skid lpg gas tank for refilling gas cylinders.
If you're interested in our skid lpg gas station with double digital scales, please feel free to send email to truck0011@163.com or talk to Anita directly by Whatsapp/wechat/Mob.: +86 13329899995.
Main Technical features of the LPG gas skid-mounted filling station:
| Product | skid-mounted lpg gas filling station for sale |
| Structural form | Integral type, separated type |
| Install Method | Above-ground, under-ground |
| System Approach | Double pump system, single pump system |
| Storage Tank Volume(M³) | 5, 10,15,20, 50, 100, 120, etc. |
| Design pressure of storage tank | 1.77Mpa |
| Design pressure of pipe | 2.5Mpa |
| Turn on pressure of safety valve | 1.75Mpa |
| Ambient Temperature | -40-55℃ |
| Ambint Humidity | 10~95% |
| Dimension of skid-mounted body | Up to customer's requirement |
The LPG Skid-Mounted station has the following functions.
*Feeding gas to gas vehicles: high quality dispenser is equipped and its measurement is accurate and stable.
*Unloading: The LPG tank car can unload the medium to the storage tank on the skid-mounted plant smoothly
*Drainage: The sundries like water-logging in the storage tank will e drained through the drain outlet.
*Emptying:The residual pressure in storage tank can be released through the emptying port during overgauling.
*Alternative Pumps: Under fault condition, gas filling pump and unloading pump can be mutually alternative.
*Reverse unloading:The liquid on the storage tank can be unloaded to the gas tank car and delivered.
*Emergency cut-off :Air-operated emergency cut-off valve is installed a the liquid outlet on the storage tank, by which the emergency cut-off under abnormal conditions can be achieved.
*Leakage Alarm: Leakage probes are installed in the key positons of the skid-mounted gas station, so as to dect the equipment's security status.
*LIquid Level Alarm: Upper and lower liquid level limit switch are installed. Therefore, it has liquid alarm and control function.
We Chengli Special Automobile Co., Ltd. can offer complete LPG Station skid with dual option of Auto vehicle filling and domestic cylinder filling, this station can be on wheels for remote filling or fixed type at site. More information, please feel free to contact with Ms. Anita Deng.
Lpg gas skid station, is also called skid system lpg station, propane lpg skid-mounted filling station, lpg mounted skid refilling station, mobile lpg filling station, lpg skid station with dispenser and weight scale, lpg gas cylinder filling station, etc.
Whatsapp/Wechat: +86 13329899995
Skype: truck0011
QQ: 504873236

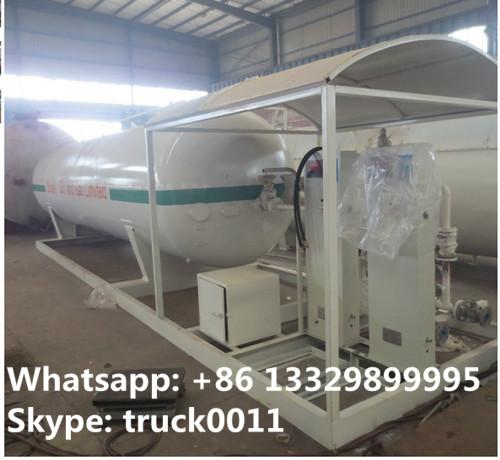

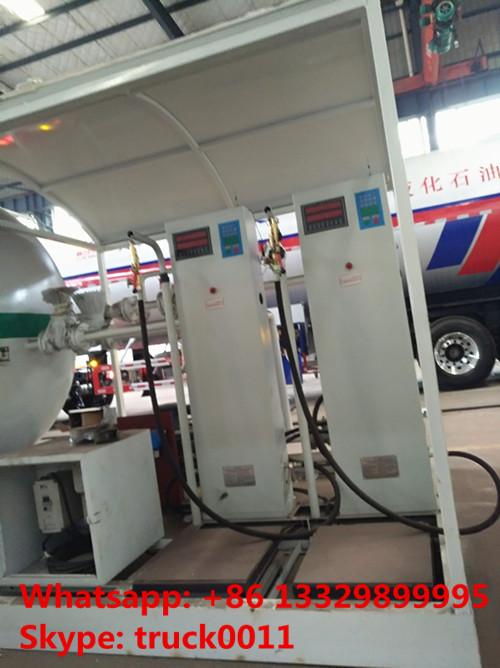

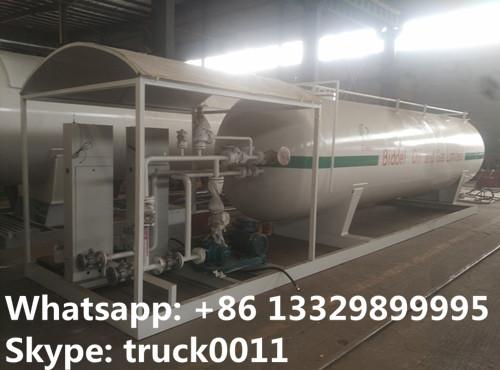

More pictures of hot sale skid lpg gas station with double digital scales for domestic gas cylinders as below
hot sale skid lpg gas station with double digital scales for filling domestic gas cylinders
