60,000L mobile skid lpg gas filling plant with pump and electronic scale, best price 60m3 skid lpg gas refilling station
60 cubic meters mobile skid lpg gas filling plant for sale, factory direct sale best price 60m3 skid lpg gas station
we supply 5-120m3 lpg tank, lpg storage tank, lpg transport tank, lpg tanker trailers, propane transport trailers for sale, propane tanker trailers for sale, 50m3 lpg skid filling station, 50m3 lpg filling skid station, gas filling station, lpg skid-mounted filling station. Top safety 50cbm LPG gas filling cylinder cooking gas station.
If you're interested in our skid lpg gas station, please feel free to send email to truck0011@163.com or talk to Anita directly by whatsapp/wechat/Mob.: +86 13329899995.
Main parameters of hot sale 60m3 skid lpg gas plant as below
|
Item |
Unit |
Main parameters |
|
Product name |
|
LPG gas storage tank(60000L) |
|
Product model |
|
CLG2700-60 |
|
Loading medium |
|
LPG gas (propane) |
|
Overall dimension(L*W*H) |
mm |
13000*2700*3800 |
|
Tank dimension(inner diameter*thickness*length) |
mm |
DN2700*14*13000 |
|
Tank volume |
m3 |
60 |
|
Tank thickness |
mm |
14 |
|
End heads thickness |
mm |
16 |
|
Curb mass |
kg |
12750 |
|
Rated mass |
Kg |
23940 |
|
Designed pressure |
Mpa |
1.77 |
|
Working pressure |
Mpa |
≤1.6 |
|
Working temperature |
℃ |
≤50 |
|
Hydraulic test pressure |
Mpa |
2.22 |
|
Air tight test pressure |
Mpa |
1.77 |
|
Filling ratio |
|
0.95 |
|
Corrosion allowance |
|
1mm |
|
Heat treatment |
|
Stress relief |
|
Propane density |
Ton/cubic meters |
0.42(50℃) |
|
Service time |
Years |
15 |
|
Tank and main Material pressure components |
Q345R,16Mnlll |
|
|
Standard |
<<GB150steel pressure vessel>>,<<Supervision Regulation on Safety Technology for Pressure Vessel>>
|
|
|
Chosen assembly |
Safety valve, magic level gauge, pressure gauge, temperature gauge, cut-off valve, etc.
|
|
|
Main parts of LPG Tank |
||
|
Item |
Specification |
Quantity |
|
Discharge Pipe |
DN50 |
1 |
|
Inflow Pipe |
DN50 |
1 |
|
Outlet |
DN50 |
1 |
|
Gas phase balance pipes |
DN50 |
2 |
|
Manhole |
DN450 |
1 |
|
Drain Hole |
DN50 |
1 |
|
Electronic LPG Filling Machine |
Can fill 0.5kg to 150kg gas cylinder with receipt printing |
1 |
|
Main accessories: Cut-off Valve, Needle Valve, Safety Valve, Liquid level meter, Pressure gauge, Temperature Gauge. Skid Parts List will be show in separated page below. |
||
The spare parts for the LPG Skid-station
|
|
Model Number |
Quantity |
|
Tank |
50CBM |
|
|
Cut-off Valve |
DN50 |
6 Pieces |
|
Cut-off Valve |
DN25 |
2 Pieces |
|
Cut-off Valve |
DN80 |
1 Pieces |
|
Needle Valve |
J24W, M20×1.5 |
1 Pieces |
|
Safety Valve |
DN80 |
1 Pieces |
|
Magnetic reversible level gauge |
UZFAL-2.5RF2640-0.50 |
1 Pieces |
|
Pressure gauge |
M20×1.5 1.5Level 0～4MPA |
1 Pieces |
|
Thermometer |
M33×2 2.5Level |
1 Pieces |
|
Accessory |
Quantity |
|
Cut-off Valve |
9Pieces |
|
Compressor |
1.5MPa |
|
Shock-absorbing Tube |
1 Set |
|
Filling pump machine |
2 Pieces |
|
Discharge Pipe |
5 Miters/set, 2sets |
|
Anti static electric motor |
1 Piece |
|
Bottom Base |
1 Unit |
|
Freight |
To Shanghai Port |
More pictures of hot sale 60,000L skid lpg gas filling plant as below.
]

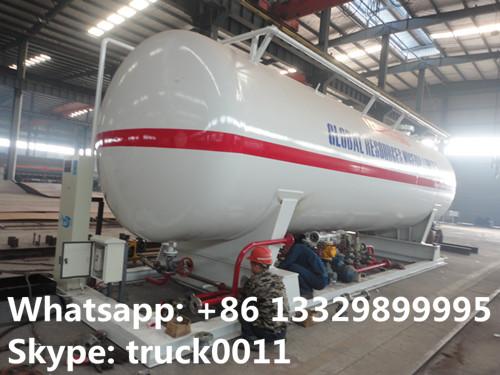

60,000L skid lpg gas filling station for sale
best price 60,000L skid lpg gas refilling plant for sale
CLW brand mobile skid-mounted lpg gas plant for refilling gas cylinders for sale
More information, please feel free to contact with Ms. Anita Deng.
Whatsapp/wechat: +86 13329899995
QQ: 504873236
Skype: truck0011
