26ton skid-mounted lpg gas filling plant, hot sale 26metric tons skid lpg filling station with automatic lpg dispensers
26tons skid-mounted lpg gas filling plant, hot sale 26metric tons skid lpg filling station, 65,000L skid system lpg gas filling station for gas cylinders for sale
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of lpg gas pressure vessels, such as bulk lpg tank, lpg gas trailer, lpg gas truck, skid lpg gas filling plant, lpg gas bobtail vehicle, lpg gas dispensing truck, etc. And recently, our company lpg gas pressure vessesl products have passed ASME. That is to say, our lpg pressure vessels can be exported to USA, Europe, etc.
> LPG storage tank with capacity of 5cbm up to 120cbm
>Color : as per customer request
>Dispenser:one gun or two gun dispenser available
>LPG Filling pump with motor
>LPG discharging pump with motor
>LPG hose assembly and quick connector
>Safety Valve+Liquid Level Indication + Pressure Gauge + Thermometer etc
>Other valves and necessary accessories for the operation of lpg filling station
Following is the main technical parameters of 50m3 LPG tank, 50m3 lpg storage tank, 50m3 lpg transport tank ,50000L lpg gas fiiling stations is just for your reference, we aslo do customized products. special requirements, please feel free to contact with Ms. Anita. Please send email to truck0011@163.com.
Skype: truck0011
QQ: 504873236
Whatsapp/wechat: +86 13329899995
The main parameters of hot sale 65m3 mobile skid lpg gas refilling plant as below
|
Item |
Unit |
Main parameters |
|
Product name |
|
LPG gas storage tank(65000L) |
|
Product model |
|
CLG2700-65 |
|
Loading medium |
|
LPG gas (propane) |
|
Overall dimension(L*W*H) |
mm |
11832*2728*3318 |
|
Tank dimension(inner diameter*thickness*length) |
mm |
DN2700*14*11832 |
|
Tank volume |
m3 |
65 |
|
Tank thickness |
mm |
14 |
|
End heads thickness |
mm |
16 |
|
Curb mass |
kg |
13590 |
|
Rated mass |
Kg |
25935 |
|
Designed pressure |
Mpa |
1.77 |
|
Working pressure |
Mpa |
≤1.6 |
|
Working temperature |
℃ |
≤50 |
|
Hydraulic test pressure |
Mpa |
2.22 |
|
Air tight test pressure |
Mpa |
1.77 |
|
Tank and main Material pressure components |
Q345R,16Mnlll |
|
|
Standard |
<<GB150steel pressure vessel>>,<<Supervision Regulation on Safety Technology for Pressure Vessel>>
|
|
|
Chosen assembly |
Safety valve, magic level gauge, pressure gauge, temperature gauge, cut-off valve, etc.
|
|
|
Main parts of LPG Tank |
||
|
Item |
Specification |
Quantity |
|
Discharge Pipe |
DN50 |
1 |
|
Inflow Pipe |
DN50 |
1 |
|
Outlet |
DN50 |
1 |
|
Gas phase balance pipes |
DN50 |
2 |
|
Manhole |
DN450 |
1 |
|
Drain Hole |
DN50 |
1 |
|
Electronic LPG Filling Machine |
Can fill 0.5kg to 150kg gas cylinder with receipt printing |
1 |
|
Main accessories: Cut-off Valve, Needle Valve, Safety Valve, Liquid level meter, Pressure gauge, Temperature Gauge. Skid Parts List will be show in separated page below. |
||

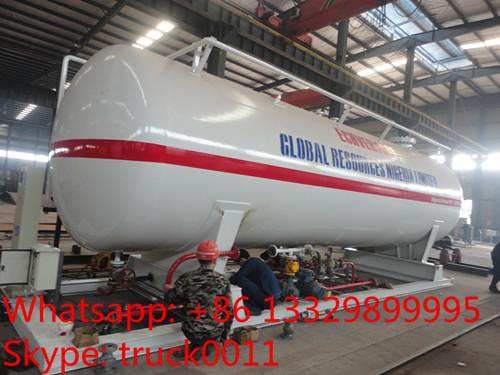

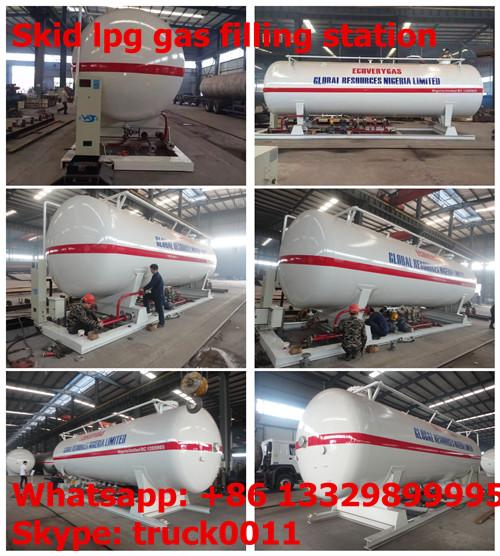

More pictures of hot sale skid lpg gas plants manufactured by Chengli Special Automobile Co., Ltd. as below
CLW brand skid lpg gas plant for sale
best price mobile skid lpg gas refilling station for sale
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of bulk lpg gas storage tanks, lpg gas trailer, lpg gas delivery trucks, etc. in China since 2004s. With many years'development, OUR CLW brand pressure vessels have been exported to so many countries all over the world. Recently our CLW brand pressure vessels products pass the ASME certificate, and then our CLW lpg gas tank and lpg gas trailers could been exported to USA, Europe, Taiwan, etc. More information, please feel free to contact with Ms. Anita Deng.
