Hot sale 5metric tons lpg gas tank with refilling system for gas cylidners filling, 5MT skid lpg gas refilling plant
Hot sale 5metric tons lpg gas tank with refilling system for gas cylidners filling, 5MT skid lpg gas refilling plant
the mobile skid mounted lpg gas plants are very popular in Africa market. The mobile skid-mounted lpg gas plant is complete with surface lpg gas storage tank, lpg gas dispensing machine with filling nozzle, pump and motor, accessories, pipelines, etc. The clients can use it for filling gas cylinders after fetching it.
If you're interested in our skid lpg gas station, please feel free to send email to truck0011@163.com or talk to Anita directly by Whatsapp/Wechat/Mob.: +86 13329899995.
Parameter of 5MT lpg mounted filling station cooking gas filling skid station
|
5MT lpg mounted filling station cooking gas filling skid station |
|||
|
Volume of Tank |
10 CBM |
||
|
Filling Weight |
5000 kg |
||
|
Tank Weight |
2950 kg |
||
|
Thickness of Shell (mm) |
10 mm |
||
|
Thickness of Endplate (mm) |
10 mm |
||
|
Tank Diameter (mm) |
1600 mm |
||
|
Tank Dimensions (mm) |
5260 x 1620 x 2210 mm |
||
|
Material of Tank and Main Pressure Parts |
Carbon Steel Q345R |
||
|
Filling Medium |
Liquefied Petroleum Gas ( Propane) |
||
|
Design Pressure |
1.77 MPa, 17.7 Bar |
||
|
Corrosion Allowance |
1 mm |
||
|
Medium Density |
500-570 kg/ cbm |
||
|
Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China. |
|||
|
Main parts of LPG Tank |
|||
|
Item |
Specification |
Quantity |
|
|
Discharge Pipe |
DN80 |
1 |
|
|
Inflow Pipe |
DN80 |
1 |
|
|
Outlet |
DN50 |
1 |
|
|
Gas phase balance pipes |
DN50 |
2 |
|
|
Manhole |
DN500 |
1 |
|
|
Drain Hole |
DN50 |
||
More pictures of hot sale 5MT skid mounted cooking gas refilling tank plant for sale as below.

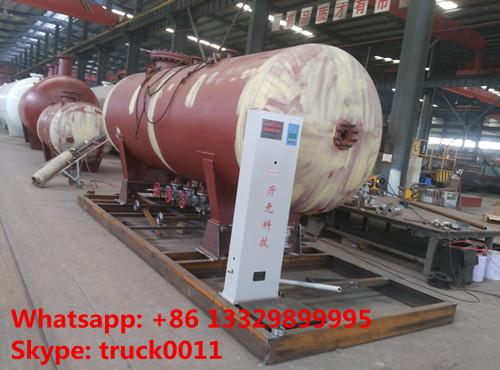

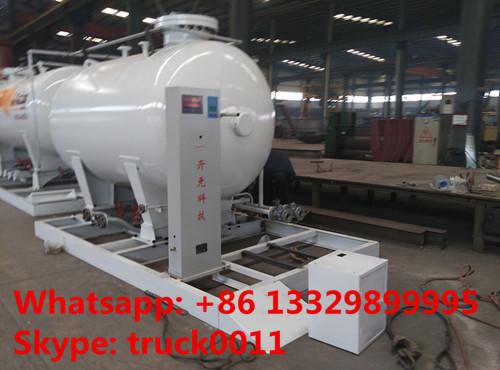

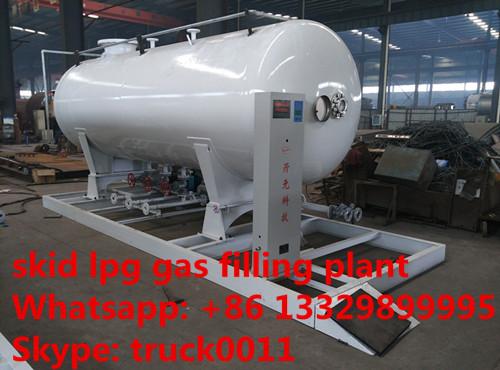

5mt mobile skid lpg gas refilling plant for sale

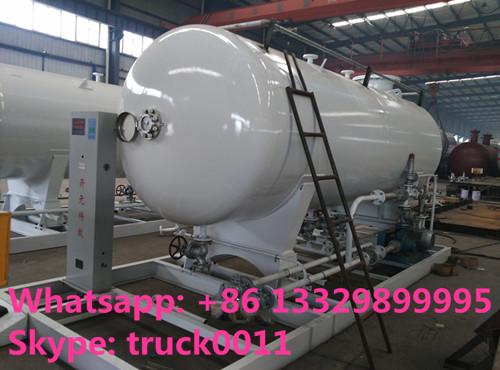

10,000L skid lpg gas refilling plant for sale
Chengli Special Automobile Co.,Ltd, a famous manufacturter in China. Pressure vessel factory is a very important part of all the factories. Pressure vessel factory is professional in LPG tank manufacturing in China, our products fully passed ISO9001-2000 international quality system and Certificate for China Compulsory Product Certification. We can produce various kinds of LPG Truck, LPG Semi-trailer, LPG Storage Tank, LPG skid station and LPG tank container.
1. We have cooperation with many famous chassis company, like FAW, DONGFENG, SINOTRUK, FOTON etc. The LPG truck's valid volume is from 5 CBM to 35.5 CBM.
2. The LPG trailer's valid volume is from 40.5 CBM to 59.52 CBM. All the safety accessories: safety valve, thermometer, pressure guage, level gauge, emergency cut-off valve etc.
3. Our LPG storage tank is ranged from 10cbm to 100cbm, both ground and underground.
4.Material: Q345R & Q370R.
More information, please feel free to contact with Ms. Anita Deng.
Whatsapp/wechat: +86 13329899995
Skype: truck0011
QQ: 504873236
