hot sale 40,000L mobile skid lpg gas station for refilling gas bottles, skid lpg gas tank with refilling system for sale
hot sale 40,000L mobile skid lpg gas station for refilling gas bottles, skid lpg gas tank with refilling system for sale
Skid lpg gas station is also called lpg skid-mounted filling station LPG GAS dispenser, Mobile Skid LPG Gas Station,]lpg mounted skid refilling station, LPG FILLING SKID STATION, lpg filling station skid-mounted moving, lpg propane skid station, LPG skid station gas station, lpg skid-mounted filling station, LPG Skid-Mounted station with LPG tank, dispensers, valves, pumps and skid, etc.
If you're itnerested in our skid lpg gas station, please feel free to send email to truck0011@163.com or talk to Anita directly by whatsapp/wechat/Mob.: +86 13329899995.
Main parameters of hot sale 40m3 skid lpg gas plant as below
| Item | Unit | Specification | |
| Loading object | CLW40-2300 | ||
| Material | Propane Gas | ||
| Designed loading Parameter | Option | Q345R, 16MnIII, Q370R | |
| Kg/m3 | 420~ 500 | ||
| Dimension | mm | 10040*2324*2914 | |
| Net Weight | Kg | 15960 | |
| Designed Pressure | Mpa | 1.77 | |
| Max Working Pressure | Mpa | <=1.6 | |
| Designed Temperature | C | -20~50 | |
| Volume | m3 | 40 | |
| Body thick | mm | 12 | |
| End head | mm | 14 | |
| Man Hole | mm | 450 | |
| Top Safety Valve Port | mm | 80 | |
| Life Year | Year | 10 | |
| Input and output | |||
| Liquid input Port | mm | DN50 ( 2 Inch) | 2.5Mpa |
| Liquid Output Port | mm | DN50 (2 Inch) | 2.5Mpa |
| Bottom Air gas input Port | mm | DN50 (2 Inch) | 2.5Mpa |
| Waste Liquid Output Port | mm | DN50 (3 Inch) | 2.5Mpa |
| Top Gas Let Out Port | mm | DN50 (3 Inch) | 2.5Mpa |
| Liquid Level Indicator Port | mm | DN20 | 2.5Mpa |
| Essential Device for option | |||
| Safety Valve, Temperature Gague, Pressure Gauge | |||
| Option~ flange | |||
| Production Standard | |||
| China GB 150 Pressure Vessel Manufacturer Standard, Or ASME Standard | |||
| Designed Valid Year, at least 10 year | |||
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of pressure vessels in China. With many years’ experience in developing, Chengli Special Automobile Co., Ltd. could supply lpg gas tank, lpg gas trailer, bulk lpg gas delivery truck, skid lpg gas station, lpg gas dispenser truck, etc. More information, please feel free to contact with Ms. Anita Deng.

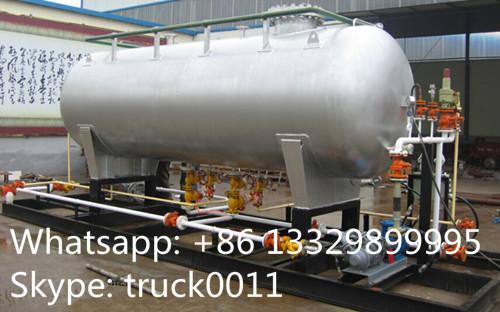

More pictures of 40cbm skid lpg gas station as below.

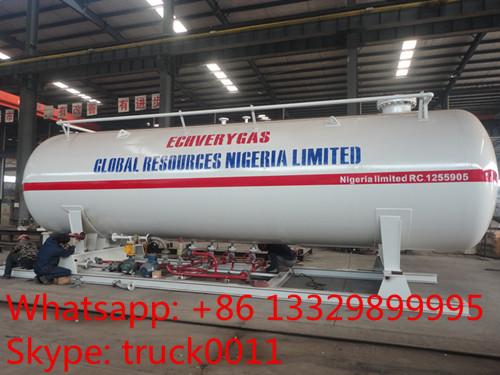

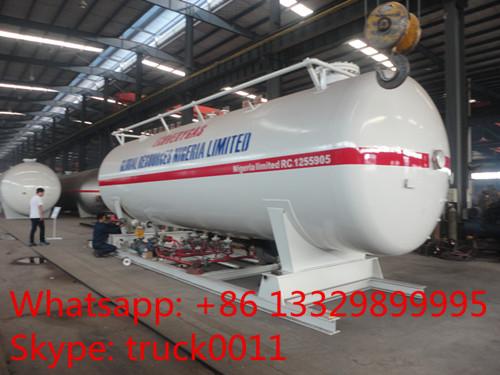

40m3 skid lpg gas plant for Nigeria clients
best price mobile skid lpg gas refilling plant for sale
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of bulk lpg gas storage tanks, lpg gas trailer, lpg gas delivery trucks, etc. in China since 2004s. With many years'development, OUR CLW brand pressure vessels have been exported to so many countries all over the world. Recently our CLW brand pressure vessels products pass the ASME certificate, and then our CLW lpg gas tank and lpg gas trailers could been exported to USA, Europe, Taiwan, etc. More information, please feel free to contact with Ms. Deng.
