CLW brand triples BPW/FUWA axles 25tons bulk lpg gas tank trailer for sale, ASME standard cooking gas trailer for sale
CLW brand triples BPW/FUWA axles 25tons bulk lpg gas tank trailer for sale, ASME standard triples axles 25metric tons cooking gas tank trailer, factory direct sale 25Mt bulk road transported lpg gas tank
The standard devices are single outlet, double side loading and unloading, double valves boxes, double toolboxes, safety valve, temperature gauge, pressure gauge, cut off valves, 3 axles 13ton BPW bridges(FUHUA bridge), 12 sets12.00 vacuum tyres and 1 set spare tyre, JOST outriggers, JOST traction pin, one extinguisher bottle, steel flippers, with ABS, etc.
The LPG tanker semi-trailer is line with the GB150-1998, <<Supervision Regulation On Safety Technology for Pressure Vessel>>, <<Regulation of Safety Supervision for Liquefied Gas Tank Car>>.
The data above is for your reference, we reserve the right of technical alteration/change for better improvement without prior notice. The detail is line with the contract.
More information, please send email to truck0011@163.com; whatsapp/wechat: +86 13329899995
main technical parameters of hot sale triple 25tons lpg gas trailer as below
| Technical Parameter of Tri-axle 25ton LPG Tanker Trailer | ||||||
| Item | Unit | Data | ||||
| Semi-trailer | Curb weight | kg | 15000 | |||
| payload | kg | 25000 | ||||
| Gross vehicle weight | kg | 40000 | ||||
| capacity | M3 | 59.52 | ||||
| Pressure of leak test | Mpa | 1.77 | ||||
| Vehicle dimensions(L*W*H) | 13000*25000*3990 | |||||
| Full load | Fifth wheel load | kn | 15970 | |||
| Rear axle load | kn | 23980 | ||||
| Max. Vehicle roll angle | ≥350 | |||||
| Designed limited velocity | Straight road | Km/h | 80 | |||
| Turning | Km/h | 20 | ||||
| Tank | Designed pressure | Mpa | 1.61 | |||
| Designed temperature | ℃ | 50 | ||||
| Filling medium | Propane gas | |||||
| Tank material | Q370R,Q345R | |||||
| Corrosion allowance | mm | 1.0 | ||||
| Tank mass | kg | 10720 | ||||
| Hydraulic test pressure | Mpa | 2.66 | ||||
|
External dimensions (Diameter*thickness*length) |
mm | 2475*11.5*12840 | ||||
| Vessel's sort | The third kind | |||||
| Service years | Ten years | |||||
| Urgent discount device | Type | Mpa | QCY43-2.5 | |||
| Nominal pressure | PN2.5 | |||||
| Nominal diameter | Gas phase | mm | 25 | |||
| Liquid phase | mm | 25 | ||||
| Operation way | Hydraulic type | |||||
| Closing time | sec | less than 10 | ||||
| Melting switch temperature | ℃ | 65~75 | ||||
| Safety valve | type | A412F-2.5-16 | ||||
| model | Inner full lift | |||||
| Nominal pressure | Mpa | PN2.5 | ||||
| Nominal diameter | mm | 80 | ||||
| Opening pressure | Mpa | 1.86~1.94 | ||||
| Closing pressure | Mpa | 1.49~1.55 | ||||
| Complete opening pressure | Mpa | <2.12 | ||||
|
Indicator Gauge |
type | ZGM2.42/2.5 | ||||
| Model | Rotary type | |||||
| Nominal pressure | Mpa | 2.5 | ||||
| Surveying range | mm | 0~2400 | ||||
| precision | 2.5 grade | |||||
| Loading & unloading valve | Valve type |
YKAG-3.3-6 YKAG-3.3-7 |
||||
| model | Quick tie-in | |||||
| Nominal diameter | gas phase | mm | 25 | |||
| Liquid phase | mm | 50 | ||||

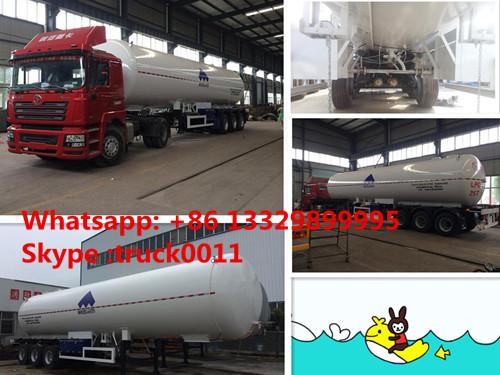

More pictures of hot sale 25tons bulk lpg propane gas trailer as below

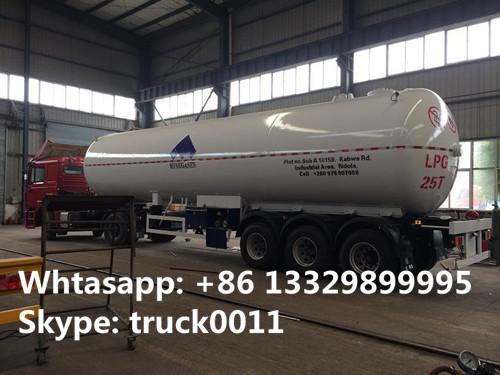

hot sale cooking gas transported tank

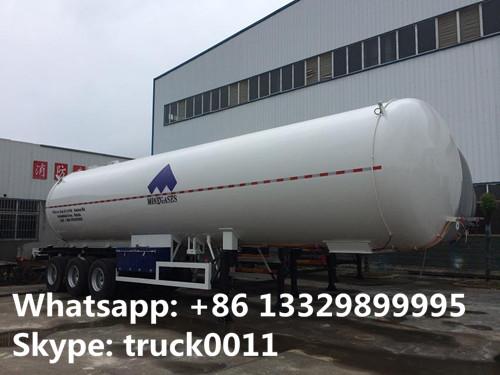

25tons bulk propane gas tank trailer for sale
