hot sale CLW brand best price 5000Liters lpg gas dispensing truck, CLW brand 95hp 2ton mini cooking gas dispensing truck
dongfeng 3300wheelbase LPG dispenser is one kind included transportation liquid gas and refulling gas characteristic.
We are manufacture , we use all kind chassis , and mounted quality Q345R material LPG tank on it , and install auto dispenser on it , the dispenser controlled by computer , you can put into how many liters you want to filling , it can be filling gas to car , or other vehicle any time , any where (safety).
If you're interested in our lpg gas dispensing truck, please feel free to send email to truck0011@163.com or talk to Anita directly by whatsapp/wechat/Mob.: +86 13329899995.
main technical parameters of CLW Brand 5500L lpg gas dispensing truck as below
| CLW 5,000L LPG gas dispensing truck | ||||
| Overall dimension (L*W*H) | 5900×2045×2600(mm) | |||
| Tank dimension(inner diameter*wall thickness*length) | 1620*8*3059(mm) | |||
| Real loading capacity | 5,000 L | |||
| Total Mass | 7495(Kg) | |||
| Loading capacity | 2100(Kg) | |||
| Curb weight | 4990(Kg) | |||
| Engine | Model/Rated Power | CY4102-C3F | ||
| Displacement/ power | 3856L/70kw | |||
| Emission Standard | Euro 2 | |||
| Manufacturer | Chaochai | |||
| Diesel 4-cylnder in line with water cooling, turbo charging EGR | ||||
| Chassis | ||||
| driving type | 4*2 LHD | |||
| Steering Type | Power Steering | |||
| Type & Size of Tyre | 7.00-16 | |||
| Tread( front/rear) | 1586/1530 | |||
| Wheel Base | 3300mm | |||
| Number of leaf spring of suspension | 8/9+5 | |||
| Max Speed | 88 Km/h | |||
| Gearbox | 5 speed gearbox | |||
| Driver cab | single row driver cab without air-conditioner | |||
| Storage battery | Camel brand | |||
| Electron extinction | Yes | |||
| ;lpg gas tanker | ||||
| Volume: | 5000L-5,500L | |||
| Tank material: | Q345R | |||
| Tank diameter: | 1600mm | |||
| Tank thickness: | 8mm | |||
| Tank length: | 3059mm | |||
| Filling gas | Propane(LPG) | |||
| Design Pressure: | 1.61Mpa | |||
| Filling parts | ||||
| Lpg gas Pump | 1 | |||
| Dispenser | Jinda brand, computer controlled, | |||
| Reel Pipeline | 15m | |||
| Filling nozzle | Suitable for different kinds of gas cylinders. | |||
| Accessory | ||||
| Manhole | 1 | |||
| Safety Valve | 1 | |||
| Tool Box | 1 | |||
| Valve Box | 1 | |||
| Thermometer | 1 | |||
| Pressure Gauge | 1 | |||
| Emergency Valve | 1 | |||
| Fender | Steel | |||
| Fire Extinguisher | 2 | |||
| Anti-static Tape | 1 | |||
| Paint | As required | |||
| Remark | 5,000L lpg gas dispensing truck with the loading capacity of 2100kgs can refill 168sets of 12.5kgs gas cylinders. | |||

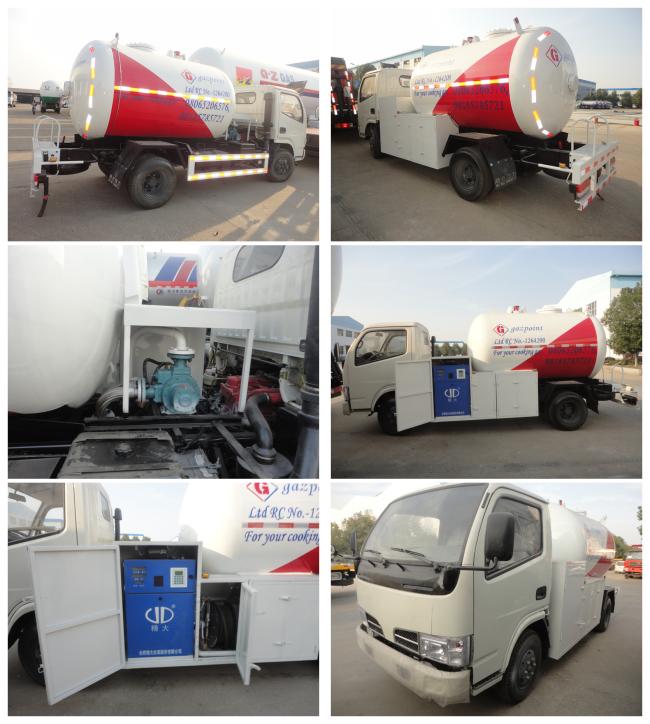

More pictures of hot sale 5,500L cooking gas dispensing truck for mobile sale as below.

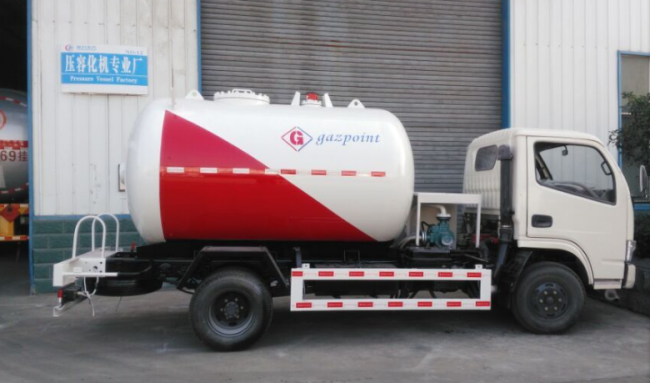

CLW brand 5,000L lpg gas dispensing truck for sale
Tanker volume L: 5,500-5,000L
Tanker thickness mm 10 (Q345R material )
Tanker DD 1600
Configuration: 1:safety valve
2:level gauge
3:pressure gauge
4:thermometer
5:emergency shut-off valve
6:valve boxes
7:fire extinguishers
8:fire star cover
9:anti-static grounding tape
10:fencing
11: tire fenders
Cheng Liliquefied gas carriers Features 1: anti-corrosion coating surface treatment are used sand-blasting, spraying, blowing, and other advanced technology.
2: safety of high-quality domestic and imported accessories,
3: rigorous science of advanced construction technology to ensure the lowest in the low temperature contraction rate, the highest dimensional stability.
Main Features
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .
More pictures of details
Machine Parts

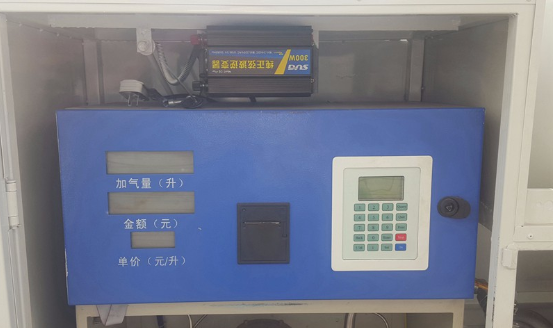

Name: dispenser
Brand: china
Original: china
this kind dispenser controlled by computer

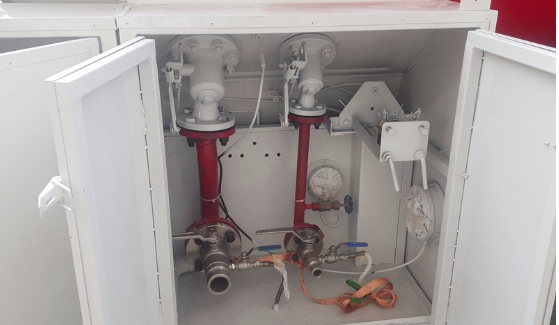

Main FeaturesName: input and output mouth
Brand: clw
Original: china
we produce china stand input and out put mouth, the joint mouth size you can choose different . according with your request .
Machine Parts
Name: LPG tank
Brand: CLW
Original: china
We use Q345R carbon steel make the tank , the tanker pressure is 1.77Mpa .
The tanker welding line passed 100% X-ray test .
The tanker all passed more than 12 kinds test , then mounted on our chassis .
Main Features

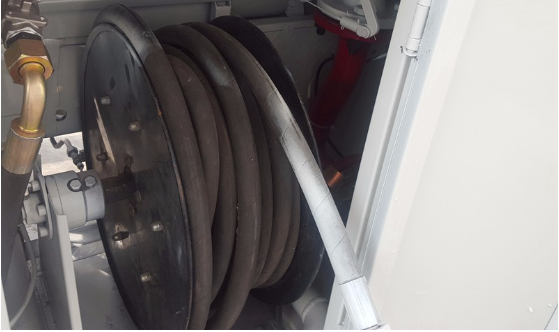

Name: roll and gun
Brand: clw
Original: china
This is long hose , it must be use roll collect long hose , and we use dispensing gun filling gas to car or other vechile .
