4 axles carbon steel fuel tank trailer 50000 liters fuel tank semi trailer fuel tank semi trailer for sale
oil tanker carbon steel 4 axles 50m3 50000 liters fuel tank semi trailer, 4 axles 50m3 carbon steel/alunibum alloy fuel tank trailer for sale
specially for carrying oil/fuel, like diesel or AGO,petrol or PMS,Jet fuel or DPK,kerosene or DPK 50000 liters fuel tank semi trailer
safety guaranteed 50000 liters fuel tank semi trailer
more than 60 years experence of making special trucks and various trailers for exporting
Volume of 50000 liters fuel tank semi trailer 30,000L~55,000L are available!
API standard 50000 liters fuel tank semi trailer
NNPC 50000 liters fuel tank semi trailer
Carbon steel Aluminum alloy 50000 liters fuel tank semi trailer
ASME DOT Saso Saudi arabia Aramco 50000 liters fuel tank semi trailer
If you're interested in our fuel tank trailer, please feel free to send email to truck0011@163.com or talk to Anita directly by Whatsapp/Wechat/Mob.: +86 13329899995
Website: www.trucksinchina.com
1 Applied carbon steel sheet Q235-A; Stainless steel; Aluminium alloy that in accordance with the international standard. Thickness is 5-10mm.
2 Apply the famous pump.
3 The main parts implements automatic welding, while the accessories apply carbon dioxide welding to ensure the tank in good performance.
4 Sub crossbeam apply rectangle steel sheet that thickness more than 5mm, stick out in one time.
5 Fire extinguisher replaced on the back of the truck for the emergency.
6 Painting held more tolerance and coherence, can make sure the tank in good situation more than 5 years.
7 According to customer's needs:
A> The pump can be designed to pump in and out throw meter, or not through meter, self-flow through or not through meter.
B> The tank can be designed as a single compartment or several compartments.
C> You can choose to install heating pipes, insulation layer. The Insulation material is generally 50-100 mm thickness, insulation can be used rockwool, glasswool, polyurethane foam, aluminum silicate. The cladding can be used 1.8-2mm thick white (RAL9003) glass reinforced plastic, 1.2mm cold carbon steel, 1.00mm stainless steel sub-mirror or matter board.
D> At the end or side of tank, It can be installed 1-3 self-flow valve.
E> You can chosse the type of the inlet and outlet (Europ standard or normally

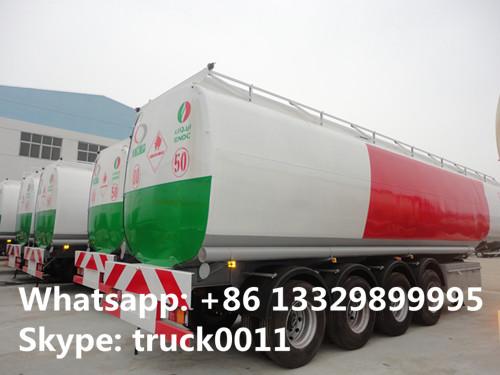

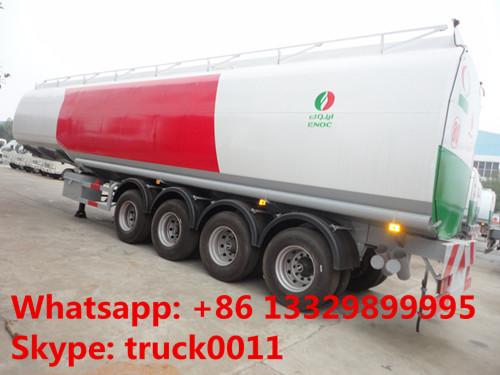

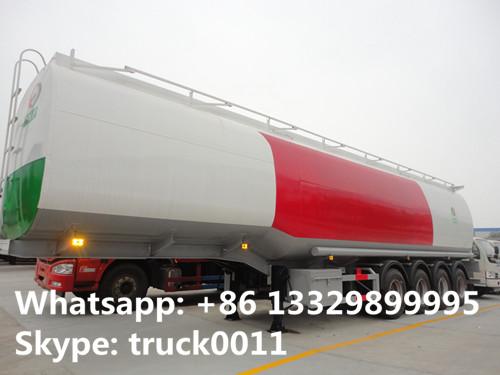

More pictures of hot sale 4 axles 50cubic meters fuel tank trailer as below.
More information, please feel free to contact with Ms. Anita Deng.
Whatsapp/wechat: +86 13329899995
Skype: truck0011
QQ: 504873236
| Main Dimensions | ||
| Overall Length | 12540mm | |
| Overall Height | 3100mm | |
| Tare Weight | 1100kg | |
| Loading Capacity | 50 m3 | |
| Photo only for reference, final product can be made according to exact requirements | ||
| Tank Body | ||
| Shape | Mono block Cylinder | |
| Total Volume(m3) | 50 | |
| Tanker Body Material | carbon steel | |
| End plate | carbon steel | |
| Manhole cover | Aluminum alloy API manhole cover, 7sets with7 breather valves | |
| Bottom Valve | 7 sets of carbon steel API Pneumatic Bottom Valve | |
| Discharging valve | 7set discharging valves | |
| No.of Compartment | 7 | |
| Discharging Pipe | 4"rubber hose, 2 pcs, 6m long | |
| Chassis | ||
| Main Beams |
Special design I beam, connected by bolts and nuts with tanker body, removable from tanker body for separate transportation; |
|
| Axle | 3 axles | |
| L1 13 Ton, BPW, FUWA Brand is optional. | ||
| Landing Gear | JOST brand Two-speed, manual operating, heavy duty landing gear | |
| King Pin | JOST brand 2" bolt-in king pin | |
| Suspension | German design heavy duty mechanical suspension | |
| Pneumatic Braking System | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks. | |
| Wheel rim | 9.25R22.5 wheel rim, 13 pieces | |
| Tire | 12R22.5 tubeless tire with one spare tire, 13 pieces | |
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint | |
| Accessories | One standard tool box | |
