CLW brand new designing 4 axles 60m3 oil tank trailer for sale, hot sale 4 axles new 60cbm bulk diesel tank trailer
CLW brand new designing 4 axles 60m3 oil tank trailer for sale, hot sale 4 axles 60cbm bulk diesel tank trailer
1 Applied carbon steel sheet Q235-A; Stainless steel; Aluminium alloy that in accordance with the international standard. Thickness is 5-10mm.
2 Apply the famous pump.
3 The main parts implements automatic welding, while the accessories apply carbon dioxide welding to ensure the tank in good performance.
4 Sub crossbeam apply rectangle steel sheet that thickness more than 5mm, stick out in one time.
5 Fire extinguisher replaced on the back of the truck for the emergency.
6 Painting held more tolerance and coherence, can make sure the tank in good situation more than 5 years.
7 According to customer's needs:
A> The pump can be designed to pump in and out throw meter, or not through meter, self-flow through or not through meter.
B> The tank can be designed as a single compartment or several compartments.
C> You can choose to install heating pipes, insulation layer. The Insulation material is generally 50-100 mm thickness, insulation can be used rockwool, glasswool, polyurethane foam, aluminum silicate. The cladding can be used 1.8-2mm thick white (RAL9003) glass reinforced plastic, 1.2mm cold carbon steel, 1.00mm stainless steel sub-mirror or matter board.
D> At the end or side of tank, It can be installed 1-3 self-flow valve.
E> You can chosse the type of the inlet and outlet (Europ standard or normally.
If you're interested in our fuel tank trailer, please feel free to send email to truck0011@163.com or talk to Anita directly by Whatsapp/Wechat/Mob.: +86 13329899995
Website:www.trucksinchina.com

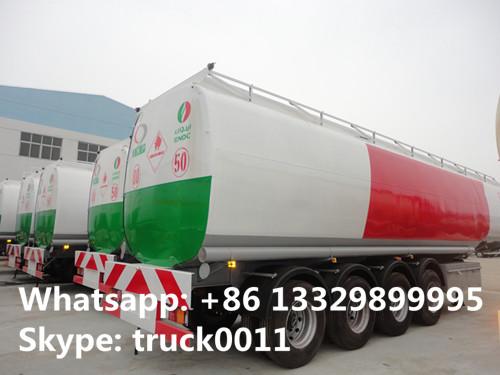

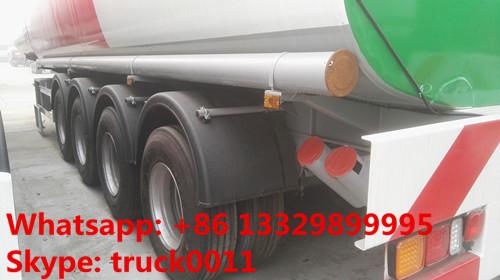

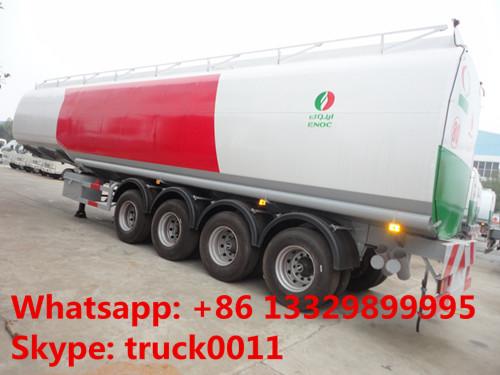

More pictures of CLW brand hot sale 60,000L oil tank trailer as below.
More information, please feel free to contact with us.
Whatsapp/wechat: +86 13329899995
Skype: truck0011
QQ: 504873236
The main technical parameters of CLW brand 4 axles 60,000L fuel tank trailer as below.
| Main Dimensions | ||
| Overall Length | 12540mm | |
| Overall Height | 3100mm | |
| Tare Weight | 1100kg | |
| Loading Capacity | 60 m3 | |
| Photo only for reference, final product can be made according to exact requirements | ||
| Tank Body | ||
| Shape | Mono block Cylinder | |
| Total Volume(m3) | 60 | |
| Tanker Body Material | carbon steel | |
| End plate | carbon steel | |
| Manhole cover | Aluminum alloy API manhole cover, 7sets with7 breather valves | |
| Bottom Valve | 7 sets of carbon steel API Pneumatic Bottom Valve | |
| Discharging valve | 7set discharging valves | |
| No.of Compartment | 7 | |
| Discharging Pipe | 4"rubber hose, 2 pcs, 6m long | |
| Chassis | ||
| Main Beams |
Special design I beam, connected by bolts and nuts with tanker body, removable from tanker body for separate transportation; |
|
| Axle | 3 axles | |
| L1 13 Ton, BPW, FUWA Brand is optional. | ||
| Landing Gear | JOST brand Two-speed, manual operating, heavy duty landing gear | |
| King Pin | JOST brand 2" bolt-in king pin | |
| Suspension | German design heavy duty mechanical suspension | |
| Pneumatic Braking System | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks. | |
| Wheel rim | 9.25R22.5 wheel rim, 13 pieces | |
| Tire | 12R22.5 tubeless tire with one spare tire, 13 pieces | |
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint | |
| Accessories | One standard tool box | |
