good price Biggest volume 40cbm refrigerated truck for sale, Customized FOTON 7.6M length frozen van box vehicle
Customized FOTON AUMARK 4*2 40cbm length refrigerated truck for sale
Customized FOTON AUMARK 4*2 LHD 7.6m length refrigerated truck, adopts FOTON AUMARK EST-M 2020mm width LHD one row and a half driver cab, 5750mm wheelbase, ISB220 40 Euro 4 diesel engine, fastgear 8 speed manual gearbox, 5.5T front axle/10T rear axle, 10.00R20 rail tires, air cut braking, manual air conditioner, etc.
The dimension(L*W*H) of refrigerated van box is 7600*2300*2300(mm)’ while the overall dimension(L*W*H) of FOTON AUMARK 220hp diesel refrigerated truck is 99995×2470,2520×3830(mm), Clients choose to install USA CARRIER brand or THERMO KING brand refrigerated truck, the lowest temperature is up to -15 degree.
Exterior and interior with FRP(Fiber Reinforced Plastic), and the middle with PU slices with vacuum negative pressure one-formed casting as the insulation layer, approved the related Ministry of Health of food grade requirements, etc. just like sandwich structure. Baseboard adopts anti-skipping diamond board, which assuring the insulation ability and the compact resistance of the baseboard. double rear door opened. Choose high quality USA imported CARRIER or THERMO KING self-powered frozen refrigerating reefer , the lowest temperature is up to -18℃. And the reefer can be adjusted at the driver cab.
If you're interested in our refrigerated truck, please send email to truck0011@163.com or talk to Anita by Whatsapp: 0086 13329899995.
Website: www.trucksinchina.com

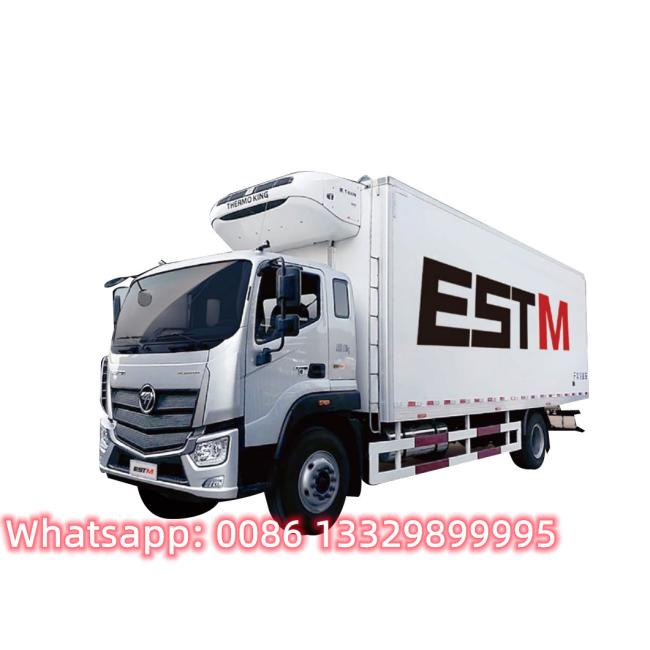

More pictures of FOTON 40CBM refrigerated truck is as below.
The main technical parameters of FOTON 7.6m length refrigerated truck is as below.
| Items | Descriptions | Specifications and Types |
| General | Truck Name | FOTON AUMARK 4*2 LHD diesel refrigerated truck for sale |
| Drive Type | 4*2 LHD | |
| Total mass(kgs) | 15795 | |
| Curb mass(kgs) | 7995 | |
| Rated mass(kgs) | 7605 | |
| Real Loading capacity(kgs) | 10T-15T | |
| Overall Dimensions (mm) | 9995×2470,2520×3830(mm) (mm) | |
| Driver cab | FOTON AUMARK 2020mm width one row and a half driver cab with 3 seats(driver cab included) | |
| Engine | Engine Model | ISB 220 40 |
| Engine Brand | DONGFENG CUMMINS | |
| Fuel Type | Diesel | |
| Rated power(KW/hp) | 162KW/220hp | |
| Cylinders nos. | 6 cylinders | |
| Maximum rotational speed(r/min) | 2500 | |
| Emission Standard | Euro 4 | |
| Capacity (cc) | 5900 | |
| Chassis | Chassis Brand | FOTON |
| Tire Specification | 10.00R20 (RADIAL) | |
| Wheelbase (mm) | 5150 | |
| Axle No. | 2 | |
| Front/Rear axle | 5.5ton front axle/10ton rear axle | |
| Steering Wheel | Left hand drive | |
| Gear Box | Fastgear 8 speed gearbox, manual | |
| Brake | Air brake with power steering | |
| Air-conditioner | Manual air conditioner | |
| Cold Room | Box inner dimension(mm) | 7600*2300*2300 |
| Box Side | Exterior and interior with FRP(fiber Reinforced Plastic), and the middle with 80mm PU slices with vacuum negative pressure one-formed casting as the insulation layer, approved the related Ministry of Health of food grade requirements, etc. just like sandwich structure. | |
| Box Floor | Baseboard adopts aluminum alloy anti-skipping diamond board, which assuring the insulation ability and the compact resistance of the baseboard. | |
| Doors |
Frame of standard rear double doors adopts the stainless steel structure frame with light mass and perfect corrosive resistance, etc. The door edgings frames are sealed with the imported high quality epdm rubber, making sure the van insulation stability. Door edgings, door locks and accessories use stainless steel materials. |
|
| Refrigerator Unit | Refrigeration unit | Choose high quality USA Carrier brand/THERMO KING vehicle-powered reefer unit (reefer unit model: C-700), the lowest temperature up to -15 degree, adjusted at the driver cab). |
Chengli Special Automobile Co., Ltd manufactures refrigerator trucks since 2004s in China. With so many years’ experience in manufacturing, we Chengli Special Automobile Co. Ltd could manufacture and sell vaccine delivery vehicle, meat hook refrigerated truck, fruit and vegetables refrigerated truck, milk food transport refrigerator truck, insulation van truck, van refrigerated truck, freezer minibus, small refrigerated truck, medium freezer van truck, big refrigerated truck, refrigerator semi-trailer, freezer refrigerated vehicles, dongfeng brand cold room truck, ISUZU brand refrigerated truck, FAW refrigerated truck, FOTON refrigerated truck, Chang’an freezer van truck, Yuejin refrigerated truck, JMC refrigerated truck, CMAC refrigerator truck, Aoling refrigerated truck, the smallest refrigerated truck, etc. More information, please feel free to contact with Ms. Anita. The hot sale line is 0086 13329899995.
