3 axle good price new 30000L fuel tank trailer for Zimbabwe, 3 axles 30m3 bulk road transported oil tank for sale
Zimbabwe hot item oil diesel petroleum road tanker semi trailer 3 axle tri-axle 30000L fuel tank trailer for Zimbabwe, 3 axles 30m3 bulk road transported oil tank for sale
specially for carrying oil/fuel, like diesel or AGO,petrol or PMS,Jet fuel or DPK,kerosene or DPK fuel tank trailer for Zimbabwe
safety guaranteed fuel tank trailer for Zimbabwe
more than 60 years experence of making special trucks and various trailers for exporting
Volume of fuel tank trailer for Zambia 30,000L~55,000L are available!
API standard fuel tank trailer for Zimbabwe
NNPC fuel tank trailer for Zimbabwe
Carbon steel Aluminum alloy fuel tank trailer for Zimbabwe
ASME DOT Saso Saudi arabia Aramco fuel tank trailer for Zimbabwe
fuel tank trailer for Zimbabwe
1 Applied carbon steel sheet Q235-A; Stainless steel; Aluminium alloy that in accordance with the international standard. Thickness is 5-10mm.
2 Apply the famous pump.
3 The main parts implements automatic welding, while the accessories apply carbon dioxide welding to ensure the tank in good performance.
4 Sub crossbeam apply rectangle steel sheet that thickness more than 5mm, stick out in one time.
5 Fire extinguisher replaced on the back of the truck for the emergency.
6 Painting held more tolerance and coherence, can make sure the tank in good situation more than 5 years.
7 According to customer's needs:
A> The pump can be designed to pump in and out throw meter, or not through meter, self-flow through or not through meter.
B> The tank can be designed as a single compartment or several compartments.
C> You can choose to install heating pipes, insulation layer. The Insulation material is generally 50-100 mm thickness, insulation can be used rockwool, glasswool, polyurethane foam, aluminum silicate. The cladding can be used 1.8-2mm thick white (RAL9003) glass reinforced plastic, 1.2mm cold carbon steel, 1.00mm stainless steel sub-mirror or matter board.
D> At the end or side of tank, It can be installed 1-3 self-flow valve.
E> You can chosse the type of the inlet and outlet (Europ standard or normally

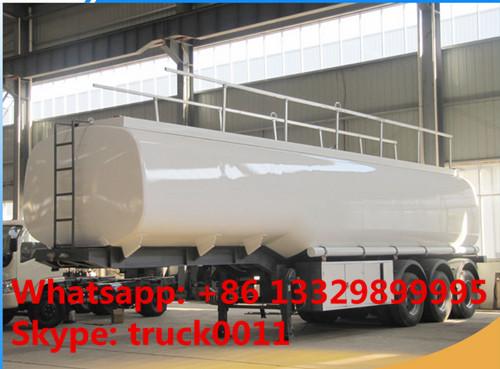

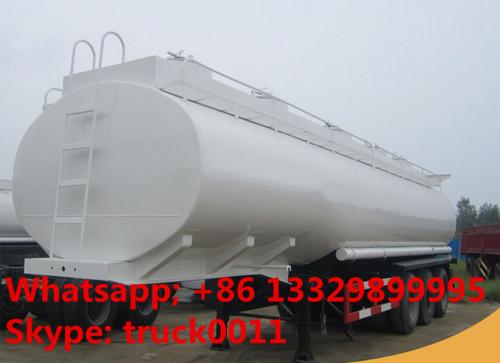

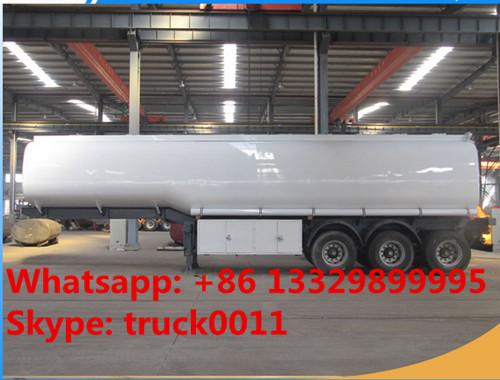

More pictures of hot sale 30m3 fuel tank trailers manufactured by Chengli Automobile Co., Ltd. as below.
Fuel tank mainly used for oil derivatives’s (gasoline, diesel, crude oil, lubricating oil and coal tar oil) transport and storage. Chengli special automobile co.,ltd. ,which is a famous manufacturer producing all kinds of special trucks.it can offer many kinds of oil tank trucks from 2000 liters to 40000 liters. Such as oil tank truck, fuel tanker truck, heavy oil tank truck, fuel oil tank truck,liquid tanker truck, gallon fuel tank truck,diesel oil tank truck,oil transportation tank truck,fuel tank cap truck, etc. And also support Customized. Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of fuel tank in China since 2004s. With many years' development, Chengli Special Automobile Co., Ltd. could supply Dongfeng fuel tank, ISUZU refueler truck, HOWO oil truck, Forland fuel dispenser truck, etc. More information, please feel free to contact with Ms. Anita.
Whatsapp/wechat: +86 13329899995
Skype: truck0011
QQ: 504873236
More technical parameters of hot sale CLW Brand fuel tank trailer as below
| Main Dimensions | ||
| Overall Length | 10240mm | |
| Overall Height | 2800mm | |
| Tare Weight | 6800KGS | |
| Loading Capacity | 30 m3 | |
| Photo only for reference, final product can be made according to exact requirements | ||
| Tank Body | ||
| Shape | Mono block Cylinder | |
| Total Volume(m3) | 30 | |
| Tanker Body Material | carbon steel | |
| End plate | carbon steel | |
| Manhole cover | Aluminum alloy API manhole cover, 7sets with7 breather valves | |
| Bottom Valve | 7 sets of carbon steel API Pneumatic Bottom Valve | |
| Discharging valve | 7set discharging valves | |
| No.of Compartment | 7 | |
| Discharging Pipe | 4"rubber hose, 2 pcs, 6m long | |
| Chassis | ||
| Main Beams |
Special design I beam, connected by bolts and nuts with tanker body, removable from tanker body for separate transportation; |
|
| Axle | 3 axles | |
| L1 13 Ton, BPW, FUWA Brand is optional. | ||
| Landing Gear | JOST brand Two-speed, manual operating, heavy duty landing gear | |
| King Pin | JOST brand 2" bolt-in king pin | |
| Suspension | German design heavy duty mechanical suspension | |
| Pneumatic Braking System | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks. | |
| Wheel rim | 9.25R22.5 wheel rim, 13 pieces | |
| Tire | 12R22.5 tubeless tire with one spare tire, 13 pieces | |
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint | |
| Accessories | One standard tool box | |
