SINO TRUK HOWO 6*4 RHD 8m3 cement mixer truck for sale, new Euro 2 diesel 336HP 8m3 HOWO concrete mixer truck for sale
SINO TRUK HOWO 6*4 RHD 8m3 cement mixer truck for sale, new Euro 2 diesel 336HP 8m3 HOWO concrete mixer truck for sale
concrete mixer truck is also called concrete truck mixer, concrete mix truck, ready mix concrete trucks, cement mixer truck,concrete agitator,etc.
The concrete mixer truck for saleadopts Euro modern style, featuring attractive appearance, rational
structure and stable performance. The capacity ranges from 3 to 16m3, meeting customers' various
needs.
Our mixer concrete truck is mainly used in cement mixing station, construction field and other place.
It is can loading and unloading by itself. After discharging the concrete, the mixer drum will be cleaning automatically by its water suppling system. Our concrete mixer truck consists of seven main parts. They are hydraulic pump, reducer, mixing drum, operation system, water supply system, feed hopper, outlet hopper.
Main feature of Chengli factory supply concrete mixer truck
1. Mixer drum turn smoothly, no segregation.
2.High quality mixer drum, no leakage.
3.Reinforced truck frame, no vibration during transportation.
4.Large slumps, good flowability, easy to discharge
Structure drawing of concrete cement mixer truck
The cement mix truck is consisted of chassis, hydraulic system, mixing concrete drum, concrete feeding and discharging system, cleaning system, etc.

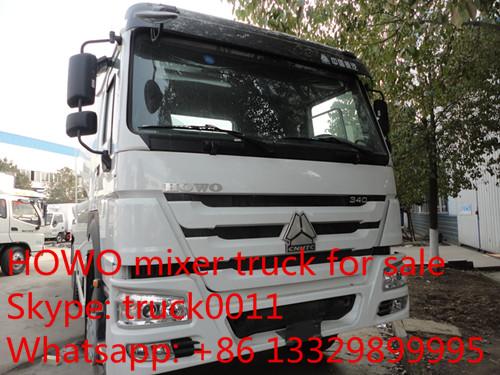

8 cubic meters HOWO RHD concrete mixer truck for sale

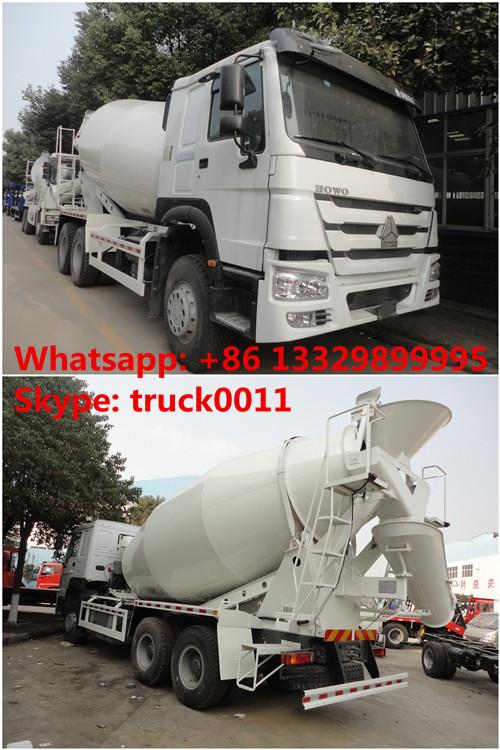

More pictures as below.
More information, please feel free to contact with Ms. Anita.
Whatsapp/wechat: +86 13329899995
Skype: truck0011
QQ: 504873236
Website: www.trucksinchina.com
The main technical parameters of HOWO mixer truck as below
| Items | Descriptions | Specifications and Types |
| General | Truck Name | Concrete mixer truck |
| Drive Type | 6*4 | |
| Gross Vehicle Weight(kg) | 25000 | |
| Curb Weight (kg) | 13100 | |
| Overall Dimensions (mm) | 9115×2496×3850 | |
| Engine Brand | SINOTRUK | |
| Fuel Type | Diesel | |
| Power | 247kw/336HP | |
| Emission Standard | Euro II | |
| Displacement(ml) | 9726 | |
| Engine Type | 6 cylinders in line,water cooling, turbo-charged diesel engine,inter-cooling | |
| Chassis | Chassis Brand | HOWO |
| Cabin | Flat roof, one row with single sleeper, with ac | |
| Tire No. | 10 | |
| Tire Specification | 12.00R20 Steel tire | |
| Axle No. | 3 | |
| Front Axle | 9 tons axle | |
| Rear Axle | Double HOWO 16ton axles | |
| Steering Wheel | Right hand drive with power-assisted | |
| Gear Box | HOWO 10 speed forward with 2 reverse,manual | |
| Brake | Air brake | |
| Clutch | 430 single dry clutch | |
| Superstructure | Valid mixing volume | 8m³ |
| Mixing drum | Pyriform Structure,Q345 | |
| PTO Type | Full power take off | |
| Hydraulic reducer | Shijiazhuang or Chongqing | |
| Hydraulic motor/pump | SUNNY | |
| Water tank volume | 400 liter |
