best quality factory sale 6*4 Dongfeng 5- cubic meters concrete mixer truck, dongfeng 6m3 concrete mixer truck
factory direct sale 4*2 Dongfeng 4-5m3 concrete mixer truck capacity,
concrete mixer truck capacity, is also called concrete mixing truck, mainly used in transporting mixed concrete, cement, etc.
Product Notes:
1. Adopt imported Italy or USA or China hydraulic equipment;
2. New design dongfeng 4*2 Chassis with Yuchai 140hp , mixing volume: 4-5m3
3. Factory direct sale, ensure reliable quality and competitive price
The basic advantages of the mixer truck from Chengli Special Automobile Co., Ltd. are as below:
First, large volume design for the mixing drum, making the mixing drum with large loading space and mixing space, etc. avoiding the leakage when climbing.
Second, the mixer blades are manufactured by the high strength and abrasion-resisting alloy steel QSTE420TM, the abrasion ability is about 40Mn to 48Mn, one-formed casting.
Third, the mixing drum adopts integrated automatic welding( making sure the welding quality); the mixer drum adopts shot blasting and anti-rusty treatment, long the mixer truck lifetime; the mixer drum is processed by the large lathe(making sure the concentricity, and discharging evenly, the resident is zero).
Fourth, inlet bucket and the movable outlet bucket installed chute liners, improves the lifetime.
Fifth, the mixer truck with low center of gravity, making the mixer truck driving safe and reliable.
Main Parameter of factory direct sale 4*2 Dongfeng 4-5m3 concrete mixer truck capacity:
| Vehicle Main Dimensions | Cab type | flat proof, single sleeper, air conditioning |
| Overall dimension(L×W×H)(mm) | 6655×2500×3500 | |
| Axle number | 2 | |
| Drive type | 4*2 | |
| Steering type | LHD or RHD with hydraulic power steering | |
| Max. Drive Speed (km/h) | 90 | |
| Curb weight (kg) | Approx 7550 | |
| Chassis parameter | Chassis Model | EQ5140 |
| Chassis brand: | Dongfeng | |
| Transmission | Manual ,5 speed forward and 1 reverse | |
| Brakes | air brake, breathe brake,drum type | |
| Tire | 8.25R20 or 8.25-20 (radial tire) with 1 Spare tire |
|
| Engine parameter | Engine Brand | GUANGXI YUCHAI |
| Model | YC6J140-42(6 cylinder in line, turbocharged and intercooled, electrical controlled monomer pump, SCR) | |
| Fuel type | Diesel | |
| Horse Power(kw)/(hp) | 103(140hp) | |
| Displacement(ml) | 6500 | |
| Emission Standard | Euro 4/3 | |
| Superstructure Parameter | Effective volume(m3) | 4-5 |
| Tanker body material: | 5 mm Q345, tanker head: 5mm Q345 | |
| Standard configuration | Chinese brand hydraulic pump, hydraulic motor, speed reducer, | |
| Supply water system | Air pressure water supply,400Liter water tank |

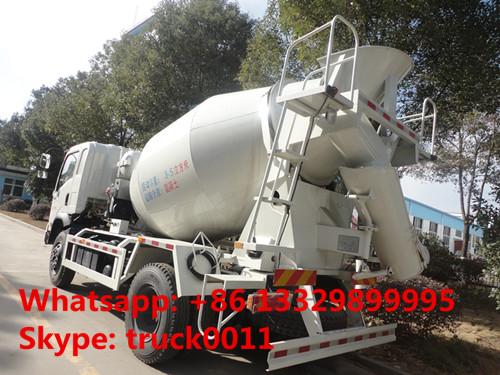

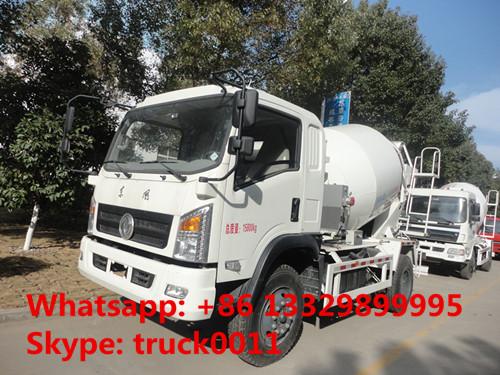

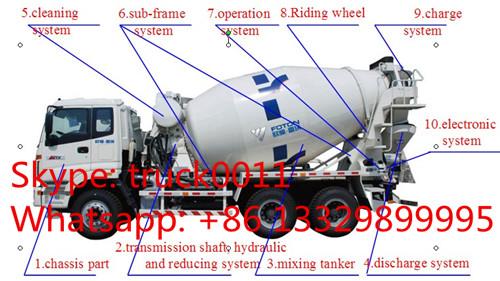

More pictures of hot sale dongfeng 5cbm mixer truck for sale
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of cement mixer trucks in China. With many years' development, Chengli Special Automobile Co., Ltd. could offer 3cbm-16cbm concrete mixer trucks, such as dongfeng brand mixer truck, HOWO brand cement mixer truck, FAW brand mixer truck, Foton Auman mixer truck, JAC mixer truck, etc. More information, please feel free to contact with Ms. Anita Deng.
Website: www.truckdf.com
Whatsapp/wechat: +86 13329899995
Skype: truck0011
QQ: 504873236
