Customized cheap price 56,000L 14560 gallon 23ton bulk lpg gas trailer for sale, bulk propane gas trailer for sale
Customized cheap price tri axle 56cbm 56m3 56000L 14560 gallon 23ton bulk lpg gas trailer for sale, factory sale propane gas traler with cheapest price
Chengli Special Automobile Co., Ltd. is a famous professional LPG gas pressure vessels manufacturer in China,and also is the earliest engaged in PRESSURE VESSEL production-manufacturing in Suizhou city,which known as the SPEICAL AUTOMOBILE CAPTIAL OF CHINA,we specialize in this field for several years with good quality and reasonable price.Our registered label CLW is a famous trademark in China. Our products fully passed and 3C authentication and US ASME certificate. Our CLW brand lpg gas pressure vessles have been exported to so many countries all over the world. More and more clients come to our factory to check and buy our lpg gas pressure vessels. Welcome clients overseas to visit our factory.
More information, please send email to truck0011@163.com; or talk to Anita directly by whatsapp/wechat: +86 13329899995.

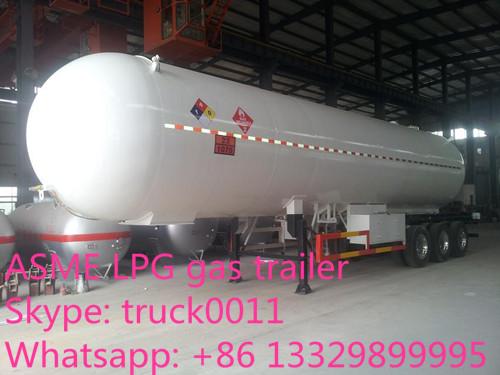

More pictures of 56,000L bulk lpg gas trailer as below.
More information, please feel free to contact with Ms. Anita.
Moreover,pls be noted that:
1,We have the biggest LPG truck in China,and the valid volume is 35.5CBM.
2,We have the biggest LPG semi-trailer in China,and the valid volume is 60CBM, low transportation cost,bring more profit.
3,We can also provide LPG storage tank ranged from 5CBM to 120CBM,both on the floor ones and in the ground ones.
Cheng Li functional characteristics of liquefied petroleum gas tank:
1, pressure components of the product materials, dimensions and weld quality, operation quality, installation quality,safety devices and accessories within the strict qualification
2, conventional tank materials on physical and chemical tests such as: mechanical properties and chemical composition.Their welded joints, weld, tank head, the pressure of the geometric location of each component through rigorous X-ray non- destructive testing and magnetic particle testing inspection.
3, seal on the product, pressure, and those who can affect the operation of product safety testing various technical indicators.
4, A,B Class 100% ray weld inspection, II level qualified, C, D Class welds 100% magnetic particle inspection, I level qualified.
Main technical parameters of Customized cheap price tri axle 56cbm 56m3 56000L 14560 gallon 23ton high pressure lpg storage tank trailer.

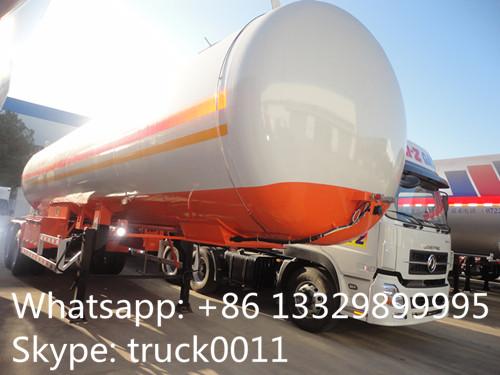

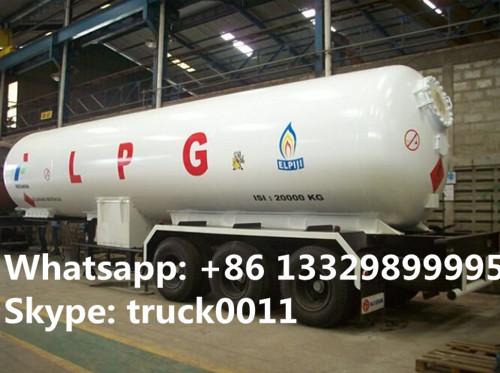

More pictures of hot sale road transported lpg gas tank as below
main parameters of hot sale lpg gas tank trailer as below
| Basic information | ||
| Truck trailer model | CLW9390GYQ | |
| Wheelbase | mm | 6865+1310+1310 |
| Front track | mm | - |
| Rear track | mm | 1840/1840/1840 |
| Total mass | T | 40 |
| Truck size | m | 12700x2500x3975 |
| Curb weight | T | 15.4 |
| Loading mass | T | 23.5 |
| Steel spring NO | Pcs | -/7/7/7 |
| Axles information | ||
| Axles brand | / | BPW |
| Axles NO | Pcs | 3 |
| Axles loading | kg | 13000*3 |
| Legs information | ||
| Legs brand | / | Jost |
| Legs loading | kg | 28000 |
| Tyre information | ||
| Tyres No | Pcs | 12+1 |
| Tyre type | / | 12 tubeless |
| Truck LPG tanker information | ||
| Tanker volume | L | 56000 |
| Tanker material | / | Carbon steel Q345R or Q370R |
| Tanker thickness | mm | 12 |
| Tanker diameter | mm | 2500 |
| Tanker design pressure | Mpa | 1.61 |
| Working pressure | Mpa | 1.61Mpa |
| Tanker temprature | -19 to 50 | |
| Twist Lock | No locks | |
| Pneumatic Braking System | Two unit of WABCO RE 6 relay valve; Four units of double air-chamber, two unit of single air-chamber, two unit of air tank. | |
| Electrical System | 7-pin ISO sockets; Tail lamp with turn signal, brake light & reflector, Side lamp etc.One set of 7-pin standard Cable. | |
| Painting |
Sand blasting processing clean rust,1 coat of anticorrosive primer, 2 coats of finish paint, Color as customer choice |
|
| Accessories | One tooling box with a set of standard trailer tool | |
| Twist Lock | No locks | |
| Others | Single out the solution, Bilateral Handing, Double valve box, Single kit, Safety valve, Thermometer, Pressure gauge, Emergency shut-off valve, Fire extinguishers, Anti-static grounding tape. | |
