CLW brand mini 2tons mobile skid lpg gas plant for sale, factory direct sale smallest skid mounted lpg propane station
factory direct sale CLW brand mini 2tons mobile skid lpg gas refilling station, smallest 2tons mobile skid propane gas refilling plant for sale
The lpg filling station is also called lpg station, lpg gas station, lpg filling plant, portable lpg station, lpg refuel station, mobile gas station, etc. The lpg skid station is usually used for lpg cylinder filling.
The lpg filling stations is consisted of lpg tank, lpg transfer pump, lpg filling scale, explosion proof motor, lpg gas dispenser with gun, pressure relief valve, thermometer, pressure gage, etc. The lpg tank is made of special material Q345R and the lpg filling scale is explosion proof type.
As a professional lpg filling stations manufacturer in China, we have the aptitude to design and manufacture A2 type of pressure vessel, C2 type of lpg tank truck, C3 type of LPG tank container. The lpg storage tank we produce are horizontal lpg tank, vertical lpg tank.
The lpg tank we produce is from 5 cubic meter to 120 cubic meter.
The manufacturing processing of lpg skid tank is complex and strict. All the lpg gas tanks must do nondestructive examination, air tight test, hydrostatic test and any other inspections.
If you're interested in our skid lpg gas station, please feel free to send email to truck0011@163.com or talk to Anita directly by whatsapp/wechat/Mob.: +86 13329899995.
| 5 CBM LPG TANK DIMENSIONS | |||
| Volume of Tank | 5 CBM | ||
| Filling Weight | 2500kg | ||
| Tank Weight | 2030 kg | ||
| Thickness of Shell (mm) | 10 mm | ||
| Thickness of Endplate (mm) | 10mm | ||
| Tank Diameter (mm) | 1600 mm | ||
| Tank Dimensions (mm) (length x width x height) | 3070x1620x2210 mm | ||
| External Dimensions (mm) (length x width x height) | To be designed to be loaded in a 40’HQ container mm | ||
| Material of Tank | Carbon Steel Q345R | ||
| Filling Medium | Liquefied Petroleum Gas ( Propane) | ||
| Design Pressure | 1.77 MPa | ||
| Corrosion Allowance | 1 mm | ||
| Medium Density | 420-590 kg/ cbm | ||
| Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China. | |||
| Main parts of LPG Tank | |||
| Item | Specification/ mm | Quantity | |
| Discharge Pipe | DN50 | 1 | |
| Inflow Pipe | DN50 | 1 | |
| Outlet | DN50 | 1 | |
| Gas phase balance pipes | DN50 | 2 | |
| Manhole | DN450 | 1 | |
| Drain Hole | DN50 | 1 | |
| Other accessories:Cut-off Valve, Needle Valve, Safety Valve, Liquid level meter, Pressure gauge, Temperature Gauge. | |||
| LPG Skid Part list | ||||
| Item | Model Number | Quantity | ||
| LPG Tanker | 5,000L | 1 piece | ||
| Pump | 2" inlet & 2" outlet | 1 Piece | ||
| Explosive-proof Motor | 380V with 220V adapter | 1 Piece | ||
| Weighting Scale | Can fill 0.5kg to 150kg LPG cylinder | 1 Piece | ||
| Pipes | / | 1 Sets | ||
| Cut-off Valve | J41N-40 DN50 | 25 Pieces | ||
| J41N-40 DN15 | 10 Pieces | |||
| Safety Valve | A42F-25 DN50 | 1 Piece | ||
| Pipe Safety Valve | A21F-25 DN15 | 1 Piece | ||
| Level Gauge | Float ball type | 1 Unit | ||
| Discharging pipe | L=4M DN50/DN25 | 1 Piece | ||
| Shock-absorbing Tube | L=500mm DN50 | 2 Pieces | ||
| Flange | 2.5MPaDN15 | 20 Pieces | ||
| LPG Pump & Motor Specification | ||||
| Pump Brand | Chinese brand | |||
| Model | YQB15-5 | |||
| Medium | Liquid petroleum gas | |||
| Working pressure differential | ≤0.5Mpa | |||
| Flow Speed | 15.5M3/H | |||
| Applied Power | 5.5kw | |||
| Inlet & Outlet Flange | 2”NPT / 2" NPT | |||
| Motor | Chinese brand | |||
| Specification |
7.5HP(5.5KW), Explosive Proof, Dual Frequency 220V to 690V, 50Hz and 60Hz supplies applicable |
|||
| LPG Cylinder Filling Machine Specification | ||||
|
|
Brand | Kaiyuan | ||
| Model | BCS-150 | |||
| Electricity Voltage | AC220V | |||
| Power | 40W | |||
| Maximum Weighing | 150kg | |||
| Measurement Precision | ±0.5% | |||
| Rated Working Pressure | 1.6Mpa | |||
| Working Temperature | -40℃~+40℃ | |||
| Anti-explosion Rate |
Exhibit II BT4 |
|||

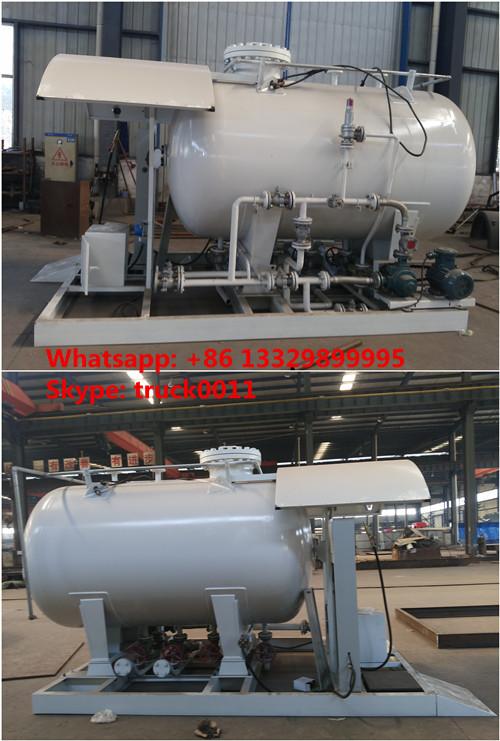

More pictures of hot sale mini 2tons skid lpg gas plant as below.

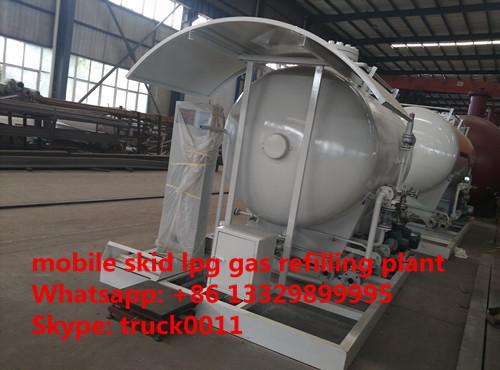

mini 2tons skid lpg gas plant for sale

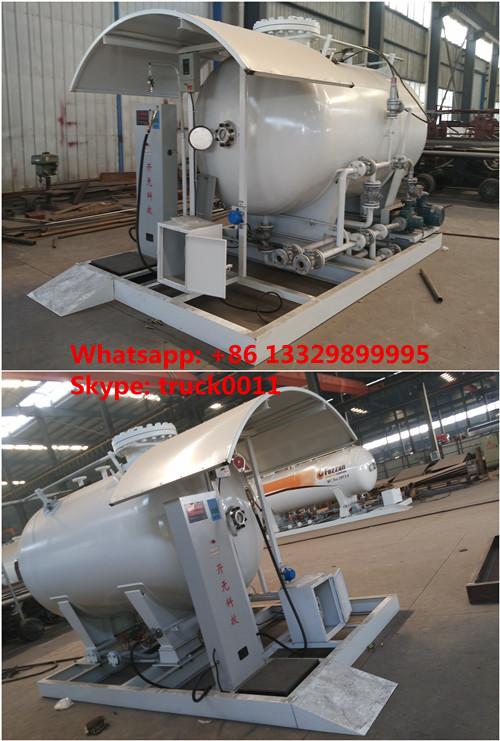

CLW brand 2Metric tons mobile skid lpg gas plant for sale
best quality and competitive price 5,000L skid lpg gas plant for refilling gas cylinders
More information, please feel free to contact with Ms. Anita.
Whatsapp/wechat: +86 13329899995
Skype: truck0011
QQ: 504873236
