CLW brand 10MT mobile skid lpg gas refilling station, ASME standard 10MT skid mounted propane gas plant for gas cylinder
CLW brand 10MT mobile skid lpg gas refilling station, best quality and competitive price ASME standard 10tons skid mounted lpg gas palnt for sale
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of lpg gas pressure vessels in China, such as surface lpg gas tank, underground lpg gas tank, lpg gas trailer, lpg gas truck, lpg gas dispensing truck, skid lpg gas refilling station, etc.
Chengli Special Automobile Co., Ltd. received an order of 10m3 skid mounted propane gas filling plant. However, this is not the first time for our company to design and manufacture the skid lpg gas filling plant. Last year, our company had designed and produced a 40,000L skid mounted lpg gas filling plant for Nigeria client. So our company have the full experience to manufacture that kind of lpg gas pressure vessels. And also last year, our CLW brand lpg gas pressure vessels had passed US ASME certificate.
We can design and manufactured the lpg gas pressure vessels accordance with Chinese GB standard and also US ASME standard.
Anyone interested in our CLW brand lpg gas pressure vessels, please feel free to contact with Ms. Anita. Please send email to truck0011@163.com or talk to Anita directly by whatsapp/wechat/Mob.: +86 13329899995.
The main technical parameters of 10MT mobile skid lpg gas plant as below
| 25 CBM skid-mounted lpg gas filling plant DIMENSIONS | |||
| Volume of Tank | 25 CBM | ||
| Loading capacity | 10000 kg | ||
| Tank Weight | 5970 kg | ||
| Thickness of Shell (mm) | 12 mm | ||
| Thickness of Endplate (mm) | 12 mm | ||
| Tank Diameter (mm) | 2400 mm | ||
| External Dimensions (mm) (length x width x height) | 6700 x 2400 x 3800 mm | ||
| Material of Tank and Main Pressure Parts | Carbon Steel Q345R | ||
| Filling Medium | Liquefied Petroleum Gas ( Propane) | ||
| Design Pressure | 1.77 MPa | ||
| Corrosion Allowance | 1 mm | ||
| Medium Density | 420 kg/ cbm | ||
| Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China. | |||
| Main parts of LPG Tank | |||
| Item | Specification | Quantity | |
| Discharge Pipe | DN50 | 1 | |
| Inflow Pipe | DN50 | 1 | |
| Outlet | DN50 | 1 | |
| Gas phase balance pipes | DN50 | 2 | |
| Manhole | DN450 | 1 | |
| Drain Hole | DN50 | 1 | |
| Electronic LPG Filling Machine | Can fill 3kg to 150kg gas cylinder | 1 | |
|
Main accessories: Cut-off Valve, Needle Valve, Safety Valve, Liquid level meter, Pressure gauge, Temperature Gauge. Skid Parts List will be show in separated page below. |
|||
The spare parts for the LPG Skid-station
| Model Number | Quantity | |
| Tank | 25CBM | |
| Cut-off Valve | DN50 | 6 Pieces |
| Cut-off Valve | DN25 | 2 Pieces |
| Cut-off Valve | DN80 | 1 Pieces |
| Needle Valve | J24W, M20×1.5 | 1 Pieces |
| Safety Valve | DN80 | 1 Pieces |
| Magnetic reversible level gauge | UZFAL-2.5RF2640-0.50 | 1 Pieces |
| Pressure gauge | M20×1.5 1.5Level 0～4MPA | 1 Pieces |
| Thermometer | M33×2 2.5Level | 1 Pieces |
| Accessory | Quantity |
| Cut-off Valve | 9Pieces |
| Shock-absorbing Tube | 1 Set |
| Filling pump machine | 2 Pieces |
| Discharge Pipe | 5 Miters/set, 2sets |
| Anti static electric motor | 1 Piece |
| Bottom Base | 1 Unit |
| Freight | To Shanghai Port |
More pictures of hot sale 10MT mobile skid lpg gas refilling plant as below.

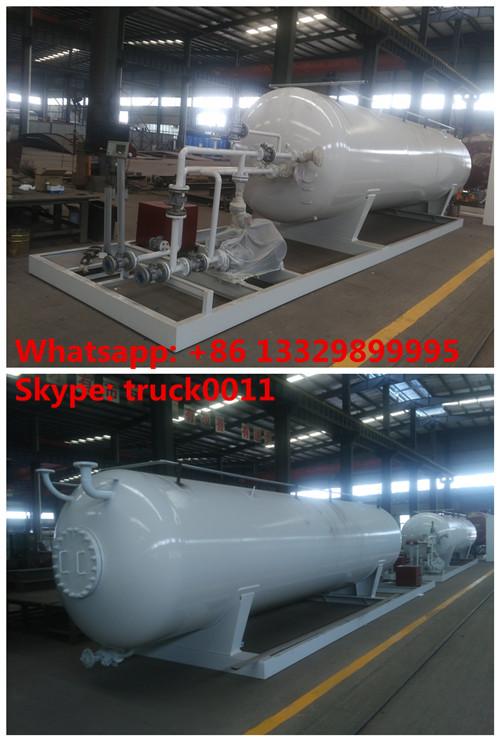

CLW brand 10MT skid lpg gas plant for sale
ASME standard 10MT mobile skid lpg gas filling station for sale
More information, please contact with Ms. Anita.
Whatsapp/wechat: +86 13329899995
Skype: truck0011
QQ: 504873236
