factory direct sale best quality CLW brand 3.2metric tons mobile skid lpg gas filling plant for refilling gas cylinders
factory direct sale CLW brand 3.2metric tons mobile skid lpg gas filling plant for refilling gas cylinders, 32000kgs skid lpg gas station for sale
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of lpg gas pressure vessels in China. Our CLW lpg gas pressure vessels(lpg gas storage tank, lpg gas trailer, lpg gas truck, lpg gas dispensing truck, skid lpg gas filling plant) have been exported to so many countries all over the world. And to meet the needs of the international market, Chengli Special Automoile Co., Ltd. lpg gas pressure vessel factory design and manufacture lpg gas dispensing truck and skid lpg gas filling plant. And last year, we design and produce the first skid lpg gas filling plant for Nigerian client with 40,000L. The client was satisified with the skid lpg gas tank for refilling gas cylinders.
If you're interested in our skid lpg gas station, please feel free to send email to truck0011@163.com or talk to Anita directly by whatsapp/wechat/Mob.: +86 13329899995.
More pictures of hot sale 3200kgs mobile skid lpg gas filling station as below.

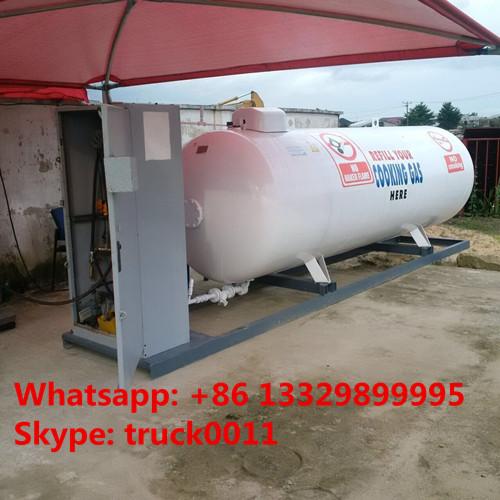

skid lpg gas plant with locker for electronic scales

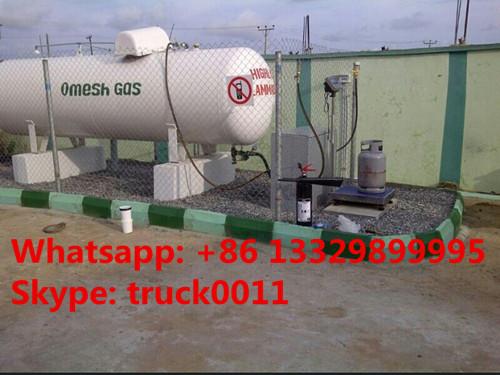

mobile skid lpg gas refilling plant for sale

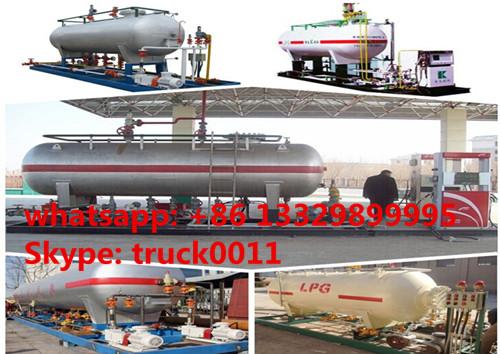

hot sale mobile skid lpg gas plant

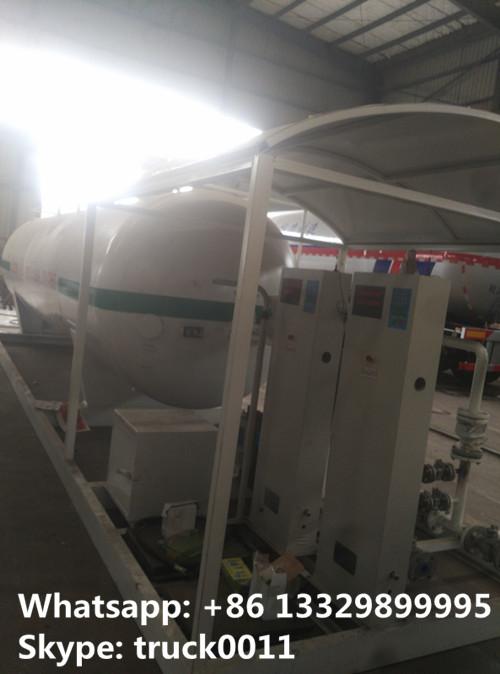

skid lpg gas filling plant with double electronic scales for sale
More information, please feel free to contact with Ms. Anita Deng.
The main technical parametes of 3200kgs skid lpg gas refilling station as below
| 3.2tons LPG SKID STATION DIMENSIONS | ||||
| Volume of Tank | 8,000L | |||
| Filling Weight | 3192 kgs | |||
| Tank Weight | 2540 kgs | |||
| Thickness of Shell (mm) | 10 mm | |||
| Thickness of Endplate (mm) | 10 mm | |||
| Tank Diameter (mm) | 1600 mm | |||
| External Dimensions (mm) (length x width x height) | 5070x 1650 x 2910 mm | |||
| Material of Tank and Main Pressure Parts | Carbon Steel Q345R | |||
| Filling Medium | Liquefied Petroleum Gas ( Propane) | |||
| Design Pressure | 1.77 MPa | |||
| Corrosion Allowance | 1 mm | |||
| Medium Density | 420 kg/ cbm | |||
| Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China. | ||||
| Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China. | ||||
| Main parts of LPG Tank | ||||
| Item | Specification/ mm | Quantity | ||
| Discharge Pipe | DN50 | 1 | ||
| Inflow Pipe | DN50 | 1 | ||
| Outlet | DN50 | 1 | ||
| Gas phase balance pipes | DN50 | 2 | ||
| Manhole | DN450 | 1 | ||
| Drain Hole | DN50 | 1 | ||
| Other accessories: Cut-off Valve, Needle Valve, Safety Valve, Liquid level meter, Pressure gauge, Temperature Gauge. | ||||
| LPG Skid Parts list | ||||
| Item | Model Number | Quantity | ||
| LPG Tanker | 8,000L | 1 piece | ||
| Pump | 2" inlet & 2" outlet | 1 Piece | ||
| Explosive-proof Motor | 380V with 220V adapter | 1 Piece | ||
| Electronic Weighting Scale with filling nozzles | Can fill 0.5kg to 150kg LPG cylinders | 3 pieces | ||
| Pipes | / | 1 Sets | ||
| Cut-off Valve | J41N-40 DN50 | 25 Pieces | ||
| J41N-40 DN15 | 10 Pieces | |||
| Safety Valve | A42F-25 DN50 | 1 Piece | ||
| Pipe Safety Valve | A21F-25 DN15 | 1 Piece | ||
| Level Gauge | Float ball type | 1 Unit | ||
| Discharging pipe | L=4M DN50/DN25 | 1 Piece | ||
| Shock-absorbing Tube | L=500mm DN50 | 2 Pieces | ||
| Flange | 2.5MPaDN15 | 20 Pieces | ||
| LPG Pump & Motor Specification | ||||
| Pump Brand | Chinese brand lpg gas pump | |||
| Model | YQB15-5 | |||
| Medium | Liquid petroleum gas | |||
| Working pressure differential | ≤0.5Mpa | |||
| Inlet pressure | ≤1.0Mpa | |||
| Flow Speed | 15.5m3/h | |||
| Applied Power | 5.5kw | |||
| Inlet & Outlet Flange | 2”NPT / 2" NPT | |||
|
Revolution
|
780r/min | |||
| mass | 166kgs | |||
| Motor | Chinese brand | |||
| Specification | 7.5HP(5.5KW), Explosive Proof, Dual Frequency 220V to 690V, 50Hz and 60Hz supplies applicable |
|||
| LPG Cylinder electronic Filling Machines Specification | ||||
| Brand | Chinese Kaiyuan Brand | |||
| Model | BCS-150 | |||
| Power supply available | 220V 50HZ | |||
| Rated power | 30W | |||
| Max weighting capacity | 150kg | |||
| Mini weighting capacity | 1kg | |||
| Measurement Precision | ±0.5% | |||
| Accuracy Level | Ⅲ | |||
| Certified Division value | 50g | |||
| Anti-explosion Rate | Exhibit II BT4 | |||
| Weighing station size | 535*425mm | |||
| Electronic scales No. | 1-3 sets | |||
More information, please feel free to contact with Ms. Anita.
Whatsapp/wechat: +86 13329899995
Skype: truck0011
QQ: 504873236
