best quality skid mounted propane gas filling plant for sale, double electronic scales skid lpg gas station for sale
factory direct sale CLW brand 6,000kgs mobile skid lpg gas filling plant for refilling lpg gas cylinders, 6MT skid lpg gas station for sale
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of lpg gas pressure vessels in China. Our CLW lpg gas pressure vessels(lpg gas storage tank, lpg gas trailer, lpg gas truck, lpg gas dispensing truck, skid lpg gas filling plant) have been exported to so many countries all over the world. And to meet the needs of the international market, Chengli Special Automoile Co., Ltd. lpg gas pressure vessel factory design and manufacture lpg gas dispensing truck and skid lpg gas filling plant. And last year, we design and produce the first skid lpg gas filling plant for Nigerian client with 40,000L. The client was satisified with the skid lpg gas tank for refilling gas cylinders.
We can design and manufactured the lpg gas pressure vessels accordance with Chinese GB standard and also US ASME standard.
Anyone interested in our CLW brand lpg gas pressure vessels, please feel free to contact with Ms. Anita.
We can customize skid lpg gas plants from 2tons to 50tons with single one electronic scale, double electronic scales, even three electronic scales, etc. More information, please feel free to contact with Ms. Anita.
If you're interested in oru mobile skid lpg gas refilling station, please send email to truck0011@163.com or talk to Anita by Whatsapp/Wechat: +86 13329899995.

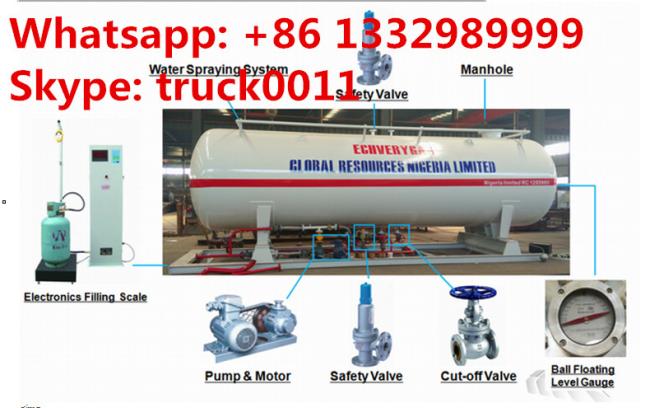

More pictures of hot sale 6,000kgs mobile skid mounted lpg gas filling station manufactured by Chengli Special Automobile Co., Ltd. as below.

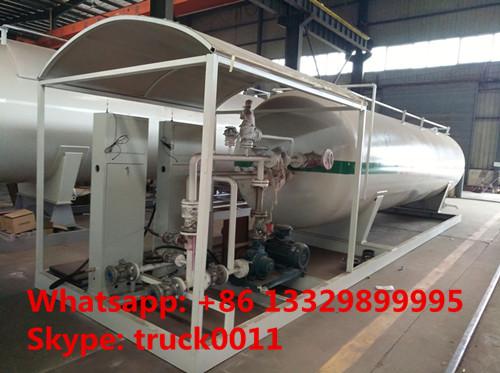

mobile skid lpg gas plant for sale

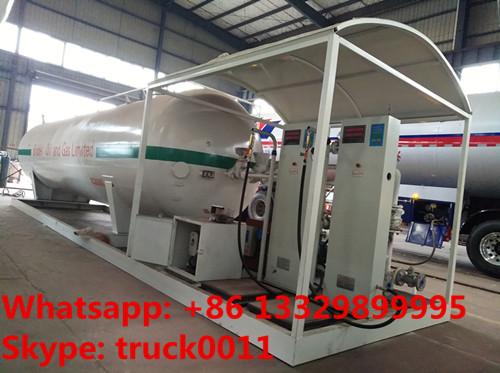

skid lpg gas plant with double electronic scales and filling nozzels for sale
6,000kgs skid propane gas refilling plant for gas cylidners
| 6tons LPG SKID STATION DIMENSIONS | ||||
| Volume of Tank | 15,000L | |||
| Filling Weight | 5985 kgs | |||
| Tank Weight | 3920 kgs | |||
| Thickness of Shell (mm) | 10 mm | |||
| Thickness of Endplate (mm) | 12 mm | |||
| Tank Diameter (mm) | 1800 mm | |||
| External Dimensions (mm) (length x width x height) | 6224x 1820 x 2410 mm | |||
| Material of Tank and Main Pressure Parts | Carbon Steel Q345R | |||
| Filling Medium | Liquefied Petroleum Gas ( Propane) | |||
| Design Pressure | 1.77 MPa | |||
| Corrosion Allowance | 1 mm | |||
| Medium Density | 420 kg/ cbm-520kg/cbm | |||
| Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China. | ||||
| Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China. | ||||
| Main parts of LPG Tank | ||||
| Item | Specification/ mm | Quantity | ||
| Discharge Pipe | DN50 | 1 | ||
| Inflow Pipe | DN50 | 1 | ||
| Outlet | DN50 | 1 | ||
| Gas phase balance pipes | DN50 | 2 | ||
| Manhole | DN450 | 1 | ||
| Drain Hole | DN50 | 1 | ||
| Other accessories: Cut-off Valve, Needle Valve, Safety Valve, Liquid level meter, Pressure gauge, Temperature Gauge. | ||||
| LPG Skid Parts list | ||||
| Item | Model Number | Quantity | ||
| LPG Tanker | 15,000L | 1 piece | ||
| Pump | 2" inlet & 2" outlet | 1 Piece | ||
| Explosive-proof Motor | 380V with 220V adapter | 1 Piece | ||
| Electronic Weighting Scale with filling nozzles | Can fill 1kg to 150kg LPG gas cylinders | 1-3 pieces | ||
| Pipes | / | 1 Sets | ||
| Cut-off Valve | J41N-40 DN50 | 25 Pieces | ||
| J41N-40 DN15 | 10 Pieces | |||
| Safety Valve | A42F-25 DN50 | 1 Piece | ||
| Pipe Safety Valve | A21F-25 DN15 | 1 Piece | ||
| Level Gauge | Float ball type | 1 Unit | ||
| Discharging pipe | L=4M DN50/DN25 | 1 Piece | ||
| Shock-absorbing Tube | L=500mm DN50 | 2 Pieces | ||
| Flange | 2.5MPaDN15 | 20 Pieces | ||
| LPG Pump & Motor Specification | ||||
| Pump Brand | Chinese brand lpg gas pump | |||
| Model | YQB15-5 | |||
| Medium | Liquid petroleum gas | |||
| Working pressure differential | ≤0.5Mpa | |||
| Inlet pressure | ≤1.0Mpa | |||
| Flow Speed | 15.5m3/h | |||
| Applied Power | 5.5kw | |||
| Inlet & Outlet Flange | 2”NPT / 2" NPT | |||
|
Revolution
|
780r/min | |||
| mass | 166kgs | |||
| Motor | Chinese brand | |||
| Specification | 7.5HP(5.5KW), Explosive Proof, Dual Frequency 220V to 690V, 50Hz and 60Hz supplies applicable |
|||
| LPG Cylinder electronic Filling Machines Specification | ||||
| Brand | Chinese Kaiyuan Brand | |||
| Model | BCS-150 | |||
| Power supply available | 220V 50HZ | |||
| Rated power | 30W | |||
| Max weighting capacity | 150kg | |||
| Mini weighting capacity | 1kg | |||
| Measurement Precision | ±0.5% | |||
| Accuracy Level | Ⅲ | |||
| Certified Division value | 50g | |||
| Anti-explosion Rate | Exhibit II BT4 | |||
| Weighing station size | 535*425mm | |||
| Electronic scales No. | 1-3 sets | |||
More information, please feel free to contact with Ms. Anita.
Whatsapp/wechat: +86 13329899995
Skype: truck0011
QQ: 504873236
