8MT mobile skid mounted lpg gas filling plant with two electronic scales and filling nozzles, skid propane gas plant
8MT mobile skid mounted lpg gas filling plant with two electronic scales and filling nozzles, skid propane gas plant
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of lpg gas pressure vessels in China since 2004s. With many years’ development, we could offer lpg gas tank, lpg gas trailer, lpg gas truck, lpg gas dispenser vehicle, mobile skid lpg gas filling station, etc.
If you're interested in our skid lpg gas station, please feel free to send email to truck0011@163.com or talk to Anita directly by whatsapp/wechat/Mob.: +86 13329899995.
8,000kgs skid mounted cooking gas station for sale
| 20 CBM LPG TANK DIMENSIONS | |||
| Volume of Tank | 8,000kgs | ||
| Filling Weight | 7980kgs | ||
| Tank Weight | 5080kgs | ||
| Thickness of Shell (mm) | 12mm | ||
| Thickness of Endplate (mm) | 14mm | ||
| Tank Diameter (mm) | 2100 mm | ||
| Tank Dimensions (mm) (length x width x height) | 6154*2124*2714 mm | ||
| External Dimensions (mm) (length x width x height) | To be designed to be loaded in a 40’HQ container mm | ||
| Material of Tank | Carbon Steel Q345R | ||
| Filling Medium | Liquefied Petroleum Gas ( Propane) | ||
| Design Pressure | 1.77 MPa | ||
| Corrosion Allowance | 1 mm | ||
| Medium Density | 420-590 kg/ cbm | ||
| Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China. | |||
| Main parts of LPG Tank | |||
| Item | Specification/ mm | Quantity | |
| Discharge Pipe | DN50 | 1 | |
| Inflow Pipe | DN50 | 1 | |
| Outlet | DN50 | 1 | |
| Gas phase balance pipes | DN50 | 2 | |
| Manhole | DN450 | 1 | |
| Drain Hole | DN50 | 1 | |
| Other accessories:Cut-off Valve, Needle Valve, Safety Valve, Liquid level meter, Pressure gauge, Temperature Gauge. | |||
| LPG Skid Part list | ||||
| Item | Model Number | Quantity | ||
| LPG Tanker | 20,000L | 1 piece | ||
| Pump | 2" inlet & 2" outlet | 1 Piece | ||
| Explosive-proof Motor | 380V with 220V adapter | 1 Piece | ||
| Electronic Weighting Scale with filling nozzles | Can fill 0.5kg to 150kg LPG cylinder | 2 pieces | ||
| Pipes | / | 1 Sets | ||
| Cut-off Valve | J41N-40 DN50 | 25 Pieces | ||
| J41N-40 DN15 | 10 Pieces | |||
| Safety Valve | A42F-25 DN50 | 1 Piece | ||
| Pipe Safety Valve | A21F-25 DN15 | 1 Piece | ||
| Level Gauge | Float ball type | 1 Unit | ||
| Discharging pipe | L=4M DN50/DN25 | 1 Piece | ||
| Shock-absorbing Tube | L=500mm DN50 | 2 Pieces | ||
| Flange | 2.5MPaDN15 | 20 Pieces | ||
| LPG Pump & Motor Specification | ||||
| Pump Brand | Chinese brand | |||
| Model | YQB15-5 | |||
| Medium | Liquid petroleum gas | |||
| Working pressure differential | ≤0.5Mpa | |||
| Flow Speed | 15.5M3/H | |||
| Applied Power | 5.5kw | |||
| Inlet & Outlet Flange | 2”NPT / 2" NPT | |||
| Motor | Chinese brand | |||
| Specification | 7.5HP(5.5KW), Explosive Proof, Dual Frequency 220V to 690V, 50Hz and 60Hz supplies applicable |
|||
| LPG Cylinder electronic Filling Machines Specification | ||||
| Brand | Kaiyuan | |||
| Model | BCS-150 | |||
| Electricity Voltage | AC220V | |||
| Power | 40W | |||
| Maximum Weighing | 150kg | |||
| Measurement Precision | ±0.5% | |||
| Rated Working Pressure | 1.6Mpa | |||
| Working Temperature | -40℃~+40℃ | |||
| Anti-explosion Rate | Exhibit II BT4 | |||

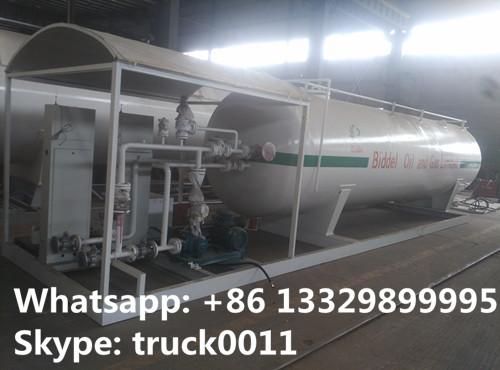

More pictures of hot sale 8000kgs mobile skid lpg gas plant for gas cylinder bottles refilling as below

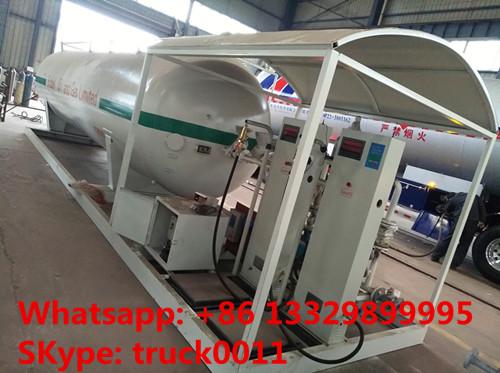

best price skid lpg gas plant with double electronic scales and refilling nozzles for gas bottles
8,000kgs mobile skid lpg gas refilling gas bottles plant for sale
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of lpg gas pressure vessels in China. Our CLW lpg gas pressure vessels(lpg gas storage tank, lpg gas trailer, lpg gas truck, lpg gas dispensing truck, skid lpg gas filling plant) have been exported to so many countries all over the world. And to meet the needs of the international market, Chengli Special Automoile Co., Ltd. lpg gas pressure vessel factory design and manufacture lpg gas dispensing truck and skid lpg gas filling plant. And last year, we design and produce the first skid lpg gas filling plant for Nigerian client with 40,000L. The client was satisified with the skid lpg gas tank for refilling gas cylinders.
More information, please feel free to contact with Ms. Anita.
