15tons refrigerator van truck with US Brand Carrier freezer for sale, 10-15tons cold room truck for frozen seafood
15tons refrigerator van truck with US Brand Carrier freezer for sale, 10-15tons cold room truck for frozen seafood
Carrier refrigerator unit freezer truck dongfeng Thermo kIng cooling van truck 10ton reefer truck
1). Thermo King,Carrier,Hanya Kingtec famous brand refrigerator Carrier Refrigerated truck
2). 10ton 15ton 20ton 10ton reefer truck ,20cbm 30cbm 40cbm 50cbm 20000L 30000L 40000L 50000L 10ton reefer truck
3). 10ton reefer truck with Hydraulic rear plate for easy loading,
4). Spacious dongfeng brand cabin 10ton reefer truck
5). There are other chassis brands for your choice,such as Howo,Faw,Jmc,Jac,Shacman,Elf(Japanese brand).
If you're interested in our refrigerated truck, please feel free to send email to truck0011@163.com or talk to Anita directly by Whatsapp/Wechat/Mob.: +86 13329899995.
Website: www.trucksinchina.com
Technical Parameter of dongfeng brand refrigerator van truck with US CARRIER freezer for sale as below
| Specification | ||||
| Truck | Drive mode | 4×2 | ||
| Chassis | DFL1120B | |||
| Engine | Model | ISDe180 30 | ||
| Type |
4-cylinder in line, turbocharging, electrical control common-rail engine |
|||
| Max. power(Kw/rpm) | 136/2500 | |||
| Max. torque(Kw/rpm) | 650/1200-1700 | |||
| Bore /Stroke(mm) | 107×124 | |||
| Displacement(ml) | 4500 | |||
| Type of fuel | Diesel | |||
| Compression ratio | 17.3:1 | |||
| Dimensions | Overall dimension (mm) | 9790×2370×2760 | ||
| Wheel base (mm) | 5600 | |||
| Front/Rear tread(mm) | 1880/1800 | |||
| App./Dep. angel (°) | 20/9 | |||
| Performance | Max. speed(Km/h) | 110 | ||
| Mass | Payload (Kg) | 7650 | ||
| Curb weight(Kg) | 4850 | |||
| G.V.W (Kg) | 12500 | |||
| Special functions | Specifications | Overall dimension of body (mm) | 7500×2300×2200 | |
| Refrigerant | 404A | |||
| Min. temperature(°C) | -15 | |||
| Inside and outside of van's material | FRP(Fiber Reinforced Plastics) | |||
| Middle of van's material | Polyurethane | |||
| Insulation layer | Under 120kPa high pressure,overall foam | |||
| Rear doorpost | stainless steel | |||
| ventilation opening | yes | |||
| Special configuration | US brand Carrier brand reefer, Korea's HT-500 non-independent unit is selective. | |||

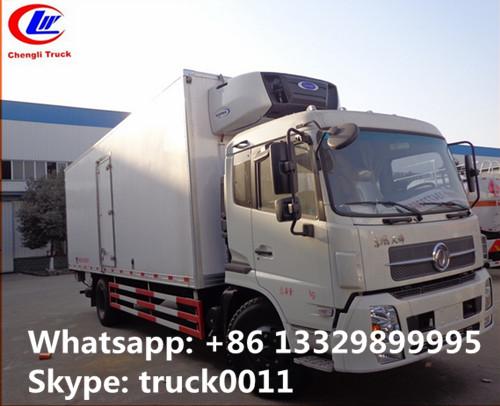

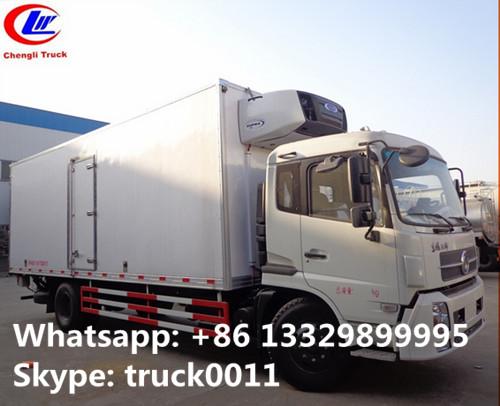

More pictures of hot sale freezer van truck with US CARRIER reefer as below
US Carrier van truck for sale
best price 15tons frozen seafood transported van truck for sale
CLW brand 15tons dongfeng tianjin reefer van truck for sale
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of refrigerated truck, refrigerator truck, insulation body truck, reefer van truck, freezer van truck, etc. in China. With many years'experience in developing, Chengli Special Automobile Co., Ltd. could produce and supply high quality and competitive ISUZU refrigerated truck, dongfeng refrigerator truck, FAW freezer van truck, Foton reefer van truck, JAC insulation body truck, JMC refrigerated truck, refrigerated van semitrailer, etc. And the cooling units of the refrigerated truck manufactured by Chengli Special Automobile Co., Ltd. can choose China faous brand or exported ones, and the temperature in the insulation body can be adjusted from -5 degree to -18 degree.
The interior and exterior of the insulation body can be chosen the popular glass steel material, or stainless steel, aluminum alloy material, and the insulation van with strengthen, etc. the middle is PU slices with vacuum negative pressure one-formed casting, and the thickness is 80mm, approved the related Ministry of Health of food grade requirements, etc. just like sandwich structure. The refrigerated van has the advantages of high strength; strong anti-corrosion and aging resistance, low heat-conducting property, non-pollution, non-easy destroy, etc. And the baseboard is aluminum alloy anti-skipping diamond board, which assuring the insulation ability and the compact resistance of the baseboard. There are aluminum alloy ventilation slots on the baseboard. The frame of standard rear double doors adopts the stainless steel structure frame with light mass and perfect corrosive resistance, etc. The door edgings frames are sealed with the imported high quality epdm rubber, making sure the van insulation stability. Door edgings, door locks and accessories use stainless steel materials.
More information, please feel free to contact with Ms. Anita.
