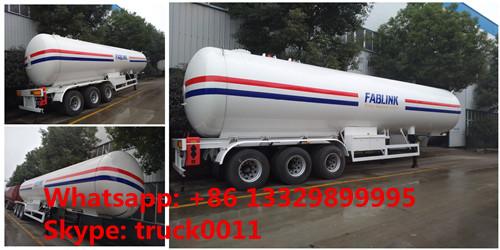

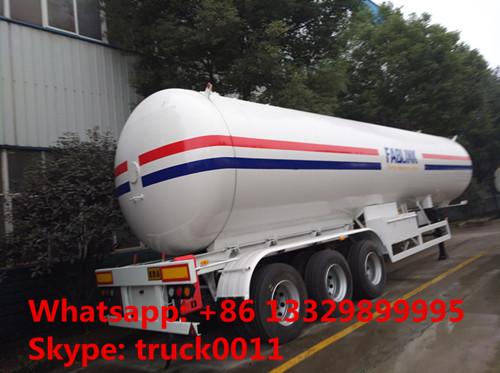

CLW brand ASME standard 57100Liters propene gas tank semitrailer for sale, best price 57.1M3 Lpg tank trailer for sale
CLW brand ASME standard 57100Liters propene gas tank semitrailer for sale, best price 57.1M3 Lpg tank trailer for sale
Specifications of lpg gas trailers manufactured by Chengli Special Automobile Co., Ltd. as below
1. propene Semi trailer propene trailer propene tank trailer propene tanker trailer
2. propene storage tank
3. propene Three Axle Semi Trailer
4.40 CBM, 45CBM. 50CBM, 60CBM propene Semi Trailer
5. Certification: ISO9001 CCC.
More information, please send email to truck0011@163.com or talk to Anita directly by whatsapp/wechat: +86 13329899995
propene trailer brief---
1)Designing pressure: 1.95MPa Designing temperature: -20C-50C
2)The various types propene tanker is researched and manufactured by stress analysis design and has obvious advantage of large capacity. Light weight and high efficiency.
3)We inspect the quality of product strictly, ensure that A and B type of welding seam pass the examination of level two radiographic test, C and D type of welding seam pass the examination of level one radiographic test.
4)There are domestic or imported safety accessories with high quality, its matching is complete.
5)The anticorrosion coating of propene tanker adopt the following process, sandblast, spray painting, purging and so on
Main technical parameters of hot sale 57100Liters propene tank trailer manufactured by Chengli Special Automobile Co., Ltd. as below
| Item |
Unit |
Parameter |
|||
| Product name |
571000L propene tank trailer PGP tri-axle trailer proplene semi trailer ASME lpg semi trailer | ||||
| Practical capacity |
M3 |
57.1 |
|||
| Gross weight |
kg |
40000 |
|||
| Curb weight |
15450 | ||||
| rated loading capacity |
24550 |
||||
| Overall dimension |
mm |
13000*2500*3990 |
|||
| Axle |
3 |
||||
| Wheelbase |
6710+1310+1310 |
||||
| Tread |
Front tread |
- |
|||
| Rear tread |
1840/1840/1840 |
||||
| Front/rear suspension |
mm |
-/1745 |
|||
| Leaf spring |
-7/7/7 |
||||
| Fifth wheel max loading |
kg |
16000 |
|||
| Tyre specification |
12.00-20 |
||||
| Exclusive configuration |
Tank material |
Q345R Q370R |
|||
| Standard configuration |
13T BPW or FUWA axle, safety valve,single fluid two valve box.hydraulic legs,traction pin,liquid Indicator,pressure gauge, temperature gauge,emergency cut-off valve,valve box,fire suppression bottle,spark hider cover, anti static grounding tape,protective guard,tyre protective shield. |
||||
| Other |
Filling Medium:propene:design pressure 1.95Mpa, design temperature 50°C,filling ratio:0.43t/m3, corrosion allowance:1mm:dimension of tank:12756*13*2450mm . |
||||
| Standard configuration |
GB150-1998,Supervision regulation on safety technology for pressure vessel,Supervision regulation on safety technology for Liquefy gas tank truck. |
||||
