CLW brand 24 metric tons stationary surface lpg gas storage tank for sale, ASME standard 24ton surface propane gas tank
CLW brand 24 metric tons stationary surface lpg gas storage tank for sale, high quality and competitive price ASME standard 24ton surface propane gas tank for sale
Bullet type lpg storage tank is also called LPG storage tank, spherical lpg storage spherical tank, lpg mounded storage bullet tank, lpg stationary storage tank, cylindrical lpg storage tank, bulk lpg gas storage tank, etc. It is widely used in storing LPG, Liquid ammonia, propane and other liquefiedpetroleum gas. We can supply propane tanker . New type storage tank can be used on board. Experience of ten years of manufacturing pressure vessel ensure reliable quality.
Product Notes:
1 More than 10 year' professional experence of lpg gas pressure vessels manufacturing
2 loadcing capacity: 9,975kgs/9.975MT
3 Factory direct sale with high quality and competitive price
4 tank volume capacity: 25,000Liters/25cubic meters
5, Manufacturing standard: China Newest Pressure Vessel Standard: GB150-2011 or ASME Standard(ASME boiler and pressure vessel Code).
If you're interested in our lpg gas pressure vessels, please feel free to send email to truck0011@163.com or talk to Anita directly by whatsapp/wechat/Mob.: +86 13329899995
Website: www.trucksinchina.com
main parameters of hot sale CLW Brand high quality and competitive price 60,000L 24tons bullet type surface lpg gas storage tank manufactured by Chengli Special Automobile Co., Ltd. as below
| Item | Unit | Main parameters |
| Product name | LPG gas storage tank(60000L) | |
| Product model | CLG2700-60 | |
| Loading medium | LPG gas (propane) | |
| Overall dimension(L*W*H) | mm | 10962*2728*3318 |
| Tank dimension(inner diameter*thickness*length) | mm | DN2700*14*10962 |
| Tank volume | m3 | 60 |
| Tank thickness | mm | 14 |
| End heads thickness | mm | 16 |
| Curb mass | kg | 12750 |
| Loading capacity | Kg | 23940 |
| Designed pressure | Mpa | 1.77 |
| Working pressure | Mpa | ≤1.6 |
| Working temperature | ℃ | ≤50 |
| Hydraulic test pressure | Mpa | 2.22 |
| Air tight test pressure | Mpa | 1.77 |
| Tank and main Material pressure components | Q345R,16Mnlll | |
| Standard |
<<GB150steel pressure vessel>>,<<Supervision Regulation on Safety Technology for Pressure Vessel>>
|
|
| Chosen safety fittings |
Safety valve, magic level gauge, pressure gauge, temperature gauge, cut-off valve, etc.
|
|
More pictures of hot sale 24metric tons surface lpg gas storage tank manufactured by Chengli Special Automobile Co., Ltd. as below

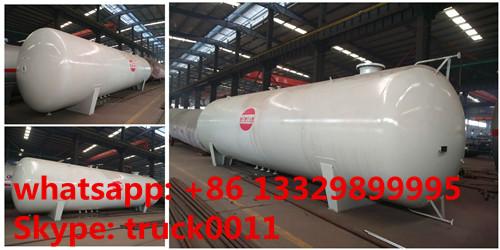

best price 24metric tons surface lpg gas storage tank for sale

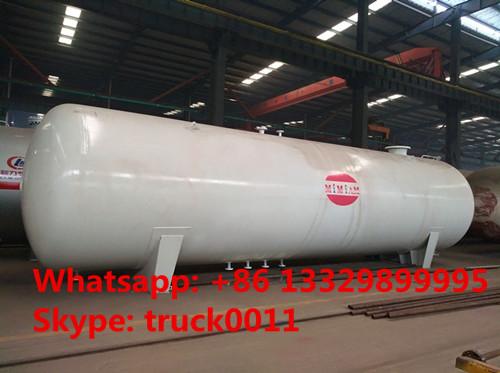

ASME stnadard bulk lpg gas storage tank for sale

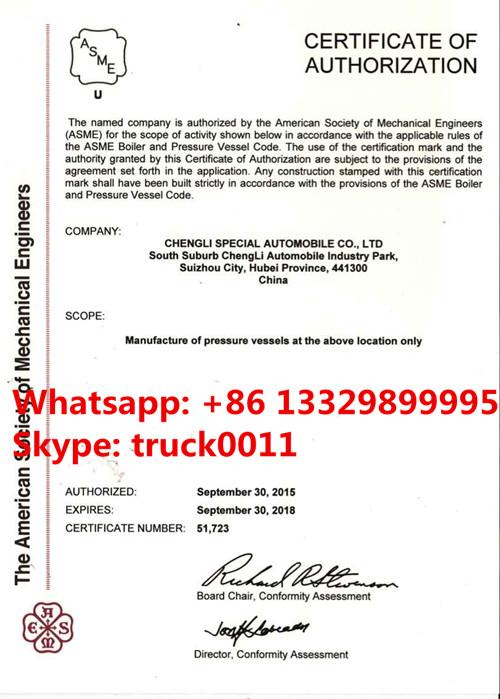

US ASME certificate for CLW lpg gas pressure vessels
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of lpg gas pressure vessels in China. And with many years'developing, the CLW brand lpg gas pressure vessels have been exported to so many countries all over the world, such as Vietnam, Mongolia, Kazakhstan, Uzbekistan, Bangladesh, Korea, Russia, Afghan, Iraq, Angola, Algeria, Nigeria, Congo, Libya, Jordan, Ethiopia, Mozambique, Mali, Niger, Trinidad, Namibia, etc. And last year, our CLW brand lpg gas pressure vessels have passed US ASME certificate. We can design and manufacture GB standard lpg gas pressure vessels and ASME standard pressure vessels. More information, please feel free to contact Ms. Anita Deng.
