2020s new designed 2.3tons dongfeng LHD 4*2 mobile lpg gas refilling truck, best price lpg gas bobtail vehicle for sale
2020s new designed 2.3tons dongfeng LHD 4*2 mobile lpg gas refilling truck, best price lpg gas bobtail vehicle for sale
1. Volume: from 1cbm to 36cbm 2.5tons lpg bobtail
2. Tank material: Q345R Q370R carbon steel 2.5tons lpg bobtail
3. Designed pressure: 1.61Mpa 2.5tons lpg bobtail
4. Thickness of tank:11mm or 12mm;Thickness of endplate:8mm 12mm 2.3tons lpg bobtail
5. Driving model:8*4 6*4 4*2 2.3tons lpg bobtail
6. Chassis brand: Dongfeng,FAW,Sinotruk,shacman 2.5tons lpg bobtail
If you're interested in our lpg gas pressure vessels, please feel free to send email to truck0011@163.com or talk to Anita directly by whatsapp/wechat/Mob.: +86 13329899995.

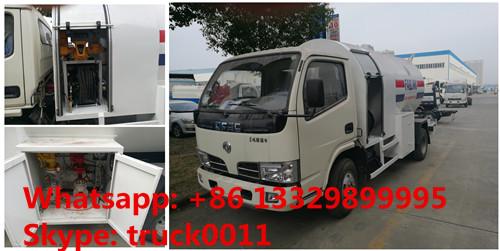

More pictures of hot sale 2.3tons lpg gas bobtail vehicle as below

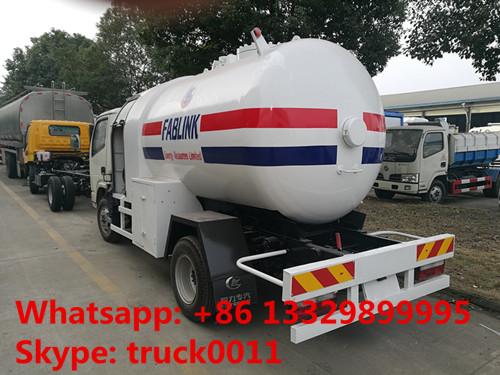

Best price 2.3tons dongfeng lpg gas bowser for sale

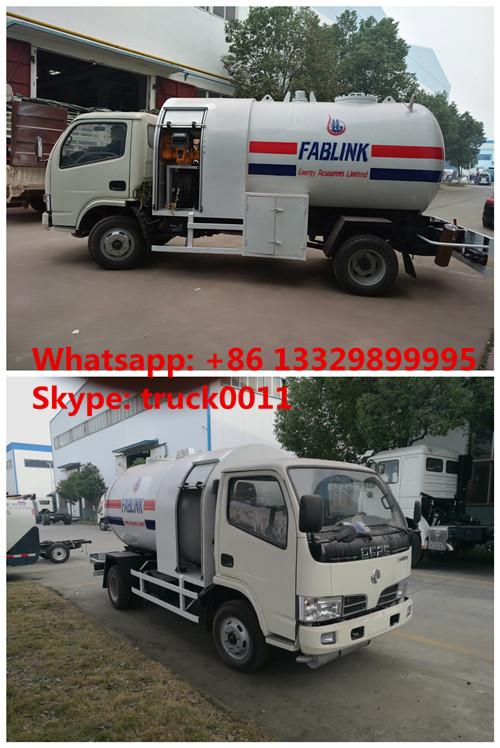

dongfeng brand 4*2 5500Liters lpg gas bobtail vehicle for sale
hot sale mobile lpg gas dispensing truck
Specifications of 2.3tons lpg bobtail manufactured by Chengli Special Automobile Co., Ltd. as below
| Item No. | Parameters |
| Cabin | Single row,right hand drive |
| Overall Dimension | 5900x2045x2600 mm |
| Gross Vehicle Weight | 6495kg |
| Curb Weight | 2310kgs |
| Payload | 3445kg |
| Wheel Base | 3300 mm |
| Engine | Chaochai engine, 4 in-line cylinder |
| Engine horsepower | CY4102-C3F,95 HP EUROIII |
| Displacement | 3856mL (Diesel) |
| Max Driving Speed | 80 km/h |
| Cabin | 2 Passenger allowed, Left Hand Driving, with Air Conditioner |
| Tire | 7.00-16,7pcs |
| LPG tank | |
| Volume: | 5.5cbm |
| Tank material: | Q345R |
| Tank diameter: | 1600mm |
| Tank thickness: | 10mm |
| Tank length: | 3059mm |
| Filling gas | Propane(LPG) |
| Design Pressure: | 1.61Mpa |
| Filling parts | |
| Pump | 1 |
| Dispenser | Jinda brand,computer controlled, |
| Pipeline | 15m |
| Filling gun | Suitable for 50kg cylinders.You can change gun as per local condition |
| Accessory | |
| Manhole | 1 |
| Safety Valve | 1 |
| Tool Box | 1 |
| Valve Box | 1 |
| Thermometer | 1 |
| Pressure Gauge | 1 |
| Emergency Valve | 1 |
| Fender | Steel |
| Fire Extinguisher | 2 |
| Anti-static Tape | 1 |
| Paint | As required |
| Standard | |
| Pressure vessels, Supervision Regulation on Safety Technology for Pressure Vessels | |
Lpg gas storage tanks manufactured by Chengli Special Automobile Co., Ltd. adopt advanced welding technology, end socket arc butt welding, and the once-forming of composite steel-plastic technology. Equipped with active and passive safety devices to meet an emergency and can load and unload the material in long distance and completely close condition. Be applied to transport varied oil, fuel, and chemical material, such as natural gas, liquefied petroleum gas, liquefied ammonia, carbon disulfide, epoxy ethane, gas, butane, dimethymethane, propylene, etc. cross section of tank could be oval, round and round-square. Heat insulation and heating devices are optional.
Our company has solid technology, flawless inspection, advanced equipments, reliant quality and flexible mode of operation. What’s more, it has roundly passed the ISO9001-2000, 3C(China Compulsory Certification), and US ASME, etc.More information, please feel free to contact with Ms. Anita.
Whatsapp/wechat: +86 13329899995
Skype: truck0011
QQ: 504873236
