ASME standard ammonia skid lpg gas refilling plant for sale, best price CLW brand mobile skid propane gas station
ASME standard ammonia skid lpg gas refilling plant for sale, factory direct sale best price CLW brand mobile skid propane gas station, CLW brand 8tons skid lpg gas plant with single one electronic scale and refilling nozzle for sale,
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of lpg gas pressure vessels in China. With many years’ development, Chengli can manufacture and sell surface/underground lpg gas storage tanks, lpg gas tank semitrailer, lpg gas truck, lpg gas bobtail vehicle, skid lpg gas refilling station, etc.And last year, our CLW brand lpg gas pressure vessels have passed USA ASME standard. That is to say, our CLW brand lpg gas storage tanks can be esxported to USA, European countries.
Welcome more and more clients all over the world to visit our CLW Group and purchase our CLW brand high quality and best price lpg gas pressure vessels.
If you're interested in our skid lpg gas station, please feel free to send email to truck0011@163.com or talk to Anita directly by whatsapp/wechat/Mob.: +86 13329899995.
main parameters of hot sale 8tons skid lpg gas plant with three electronic scales
| 20 CBM LPG TANK DIMENSIONS | |||
| Volume of Tank | 20,000L | ||
| Filling Weight | 8000kgs | ||
| Tank Weight | 5080kgs | ||
| Thickness of Shell (mm) | 12mm | ||
| Thickness of Endplate (mm) | 14mm | ||
| Tank Diameter (mm) | 2100 mm | ||
| Tank Dimensions (mm) (length x width x height) | 6154*2124*2714 mm | ||
| External Dimensions (mm) (length x width x height) | To be designed to be loaded in a 40’container | ||
| Material of Tank | Carbon Steel Q345R | ||
| Filling Medium | Liquefied Petroleum Gas ( Propane) | ||
| Design Pressure | 1.77 MPa | ||
| Corrosion Allowance | 1 mm | ||
| Medium Density | 420-590 kg/ cbm | ||
| Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China. | |||
| Main parts of LPG Tank | |||
| Item | Specification/ mm | Quantity | |
| Discharge Pipe | DN50 | 1 | |
| Inflow Pipe | DN50 | 1 | |
| Outlet | DN50 | 1 | |
| Gas phase balance pipes | DN50 | 2 | |
| Manhole | DN450 | 1 | |
| Drain Hole | DN50 | 1 | |
| Other accessories: Cut-off Valve, Needle Valve, Safety Valve, Liquid level meter, Pressure gauge, Temperature Gauge. | |||
| LPG Skid Parts list | |||
| Item | Model Number | Quantity | |
| LPG Tanker | 20,000L | 1 piece | |
| Pump | 2" inlet & 2" outlet | 1 Piece | |
| Explosive-proof Motor | 380V with 220V adapter | 1 Piece | |
| Electronic Weighting Scale with filling nozzles | Can fill 1kg to 150kg LPG cylinders | 1 pieces | |
| Pipes | / | 1 Sets | |
| Cut-off Valve | J41N-40 DN50 | 25 Pieces | |
| J41N-40 DN15 | 10 Pieces | ||
| Safety Valve | A42F-25 DN50 | 1 Piece | |
| Pipe Safety Valve | A21F-25 DN15 | 1 Piece | |
| Level Gauge | Float ball type | 1 Unit | |
| Discharging pipe | L=4M DN50/DN25 | 1 Piece | |
| Shock-absorbing Tube | L=500mm DN50 | 2 Pieces | |
| Flange | 2.5MPaDN15 | 20 Pieces | |
| LPG Pump & Motor Specification | |||
| Pump Brand | Chinese brand lpg gas pump | ||
| Model | YQB15-5 | ||
| Medium | Liquid petroleum gas | ||
| Working pressure differential | ≤0.5Mpa | ||
| Inlet pressure | ≤1.0Mpa | ||
| Flow Speed | 15.5m3/h | ||
| Applied Power | 5.5kw | ||
| Inlet & Outlet Flange | 2”NPT / 2" NPT | ||
|
Revolution
|
780r/min | ||
| mass | 166kgs | ||
| Motor | Chinese brand | ||
| Specification | 7.5HP(5.5KW), Explosive Proof, Dual Frequency 220V to 690V, 50Hz and 60Hz supplies applicable |
||
| LPG Cylinder electronic Filling Machines Specification | |||
| Brand | Chinese Kaiyuan Brand | ||
| Model | BCS-150 | ||
| Power supply available | 220V 50HZ | ||
| Rated power | 30W | ||
| Max weighting capacity | 150kg | ||
| Mini weighting capacity | 1kg | ||
| Measurement Precision | ±0.5% | ||
| Accuracy Level | Ⅲ | ||
| Certified Division value | 50g | ||
| Anti-explosion Rate | Exhibit II BT4 | ||
| Weighing station size | 535*425mm | ||
| Electronic scales No. | 1 sets | ||

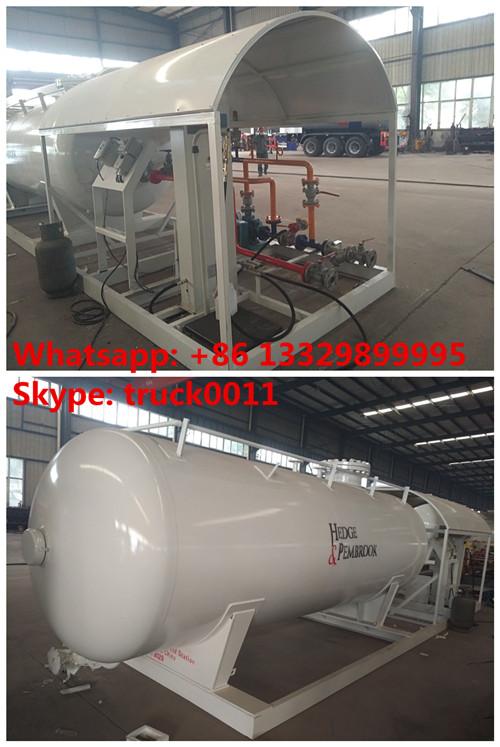

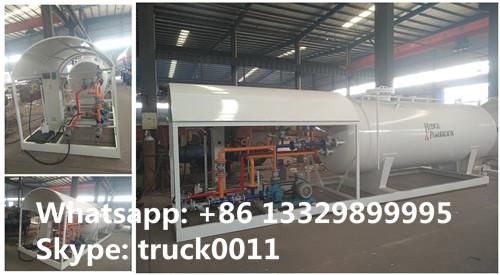

More pictures of hot sale CLW Brand 8tons ammonia skid lpg station manufactured by Chengli Special Automobile Co., Ltd. as below.
CLW brand skid lpg gas refilling station for sale
best price 8tons ammonia skid lpg plant for sale
More information, please feel free to contact with Ms. Anita.
Whatsapp/wechat: +86 13329899995
Skype: truck0011
QQ: 504873236
