CLW brand skid lpg gas refilling plant with 3 filling machines for sale, complete mobile skid lpg gas filling station
CLW brand skid lpg gas refilling plant with 3 electronic scales for sale, complete mobile skid lpg gas tank with digital scales for filling gas cylinders
Chengli Group can customize the skid lpg gas filling station with 3sets of electronic scales and filling nozzles for gas cylinders. That is to say, this skid lpg gas refilling station can fill 3 sets of gas cylinders at one time. And also print ticket for clients. At the same time, this mobile skid-mounted lpg gas refilling plant is installed with compressor to fill lpg gas delivery truck.
If you're interested in our skid lpg gas station, please feel free to send email to truck0011@163.com or talk to Anita directly by whatsapp/wechat/Mob.: +86 13329899995.

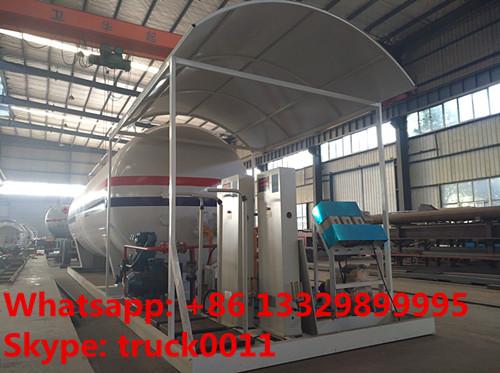

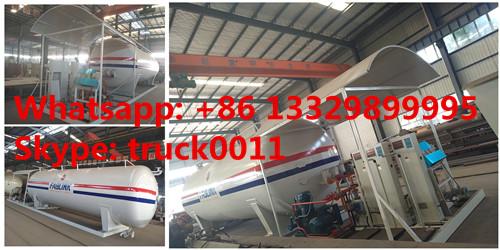

Look at the pictures of 18tons skid lpg gas refilling plant for FABLINK company manufactured by Chengli Special Automobile Co., Ltd. as below.
16tons skid lpg gas refilling plant with 3 refilling machines for sale

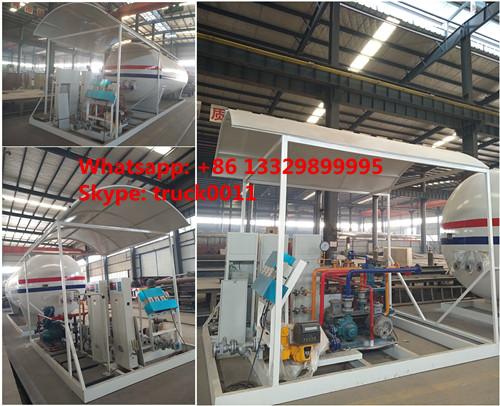

mobile skid lpg gas refilling station with 3 sets of electronic scales and refilling nozzles
main technical parameters of 16tons skid lpg gas refilling plant as below
| 40,000L LPG TANK DIMENSIONS | |||||
| Volume of Tank | 40,000L | ||||
| Filling capacity | 15960kgs | ||||
| Tank Weight | 9380 kg | ||||
| Thickness of Shell (mm) | 14 mm | ||||
| Thickness of Endplate (mm) | 12mm | ||||
| Tank Diameter (mm) | 2400 mm | ||||
| External Dimensions (mm) (length x width x height) | 1000*2400*3600 mm | ||||
| Material of Tank and Main Pressure Parts | Carbon Steel Q345R | ||||
| Filling Medium | Liquefied Petroleum Gas ( Propane) | ||||
| Design Pressure | 1.77 MPa | ||||
| Corrosion Allowance | 1 mm | ||||
| Medium Density | 420-590 kg/cbm | ||||
| Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China. | |||||
| Main parts of LPG Tank | |||||
| Item | Specification/ mm | Quantity | |||
| Discharge Pipe | DN50 | 1 | |||
| Inflow Pipe | DN50 | 1 | |||
| Outlet | DN50 | 1 | |||
| Gas phase balance pipes | DN50 | 2 | |||
| Manhole | DN450 | 1 | |||
| Drain Hole | DN50 | 1 | |||
| Other accessories: Cut-off Valve, Needle Valve, Safety Valve, Liquid level meter, Pressure gauge, Temperature Gauge. | |||||
| LPG Skid Parts list | |||
| Item | Model Number | Quantity | |
| LPG Tanker | 20,000L | 1 piece | |
| Pump | 2" inlet & 2" outlet | 1 Piece | |
| Explosive-proof Motor | 380V with 220V adapter | 1 Piece | |
| Electronic Weighting Scale with filling nozzles | Can fill 1kg to 150kg LPG cylinders | 3 pieces | |
| Pipes | / | 1 Sets | |
| Cut-off Valve | J41N-40 DN50 | 25 Pieces | |
| J41N-40 DN15 | 10 Pieces | ||
| Safety Valve | A42F-25 DN50 | 1 Piece | |
| Pipe Safety Valve | A21F-25 DN15 | 1 Piece | |
| Level Gauge | Float ball type | 1 Unit | |
| Discharging pipe | L=4M DN50/DN25 | 1 Piece | |
| Shock-absorbing Tube | L=500mm DN50 | 2 Pieces | |
| Flange | 2.5MPaDN15 | 20 Pieces | |
| LPG Pump & Motor Specification | |||
| Pump Brand | Chinese brand lpg gas pump | ||
| Model | YQB15-5 | ||
| Medium | Liquid petroleum gas | ||
| Working pressure differential | ≤0.5Mpa | ||
| Inlet pressure | ≤1.0Mpa | ||
| Flow Speed | 15.5m3/h | ||
| Applied Power | 5.5kw | ||
| Inlet & Outlet Flange | 2”NPT / 2" NPT | ||
| Revolution | 780r/min | ||
| mass | 166kgs | ||
| Motor | Chinese brand | ||
| Specification | 7.5HP(5.5KW), Explosive Proof,Dual Frequency 220V to 690V, 50Hz and 60Hz supplies applicable | ||
| LPG Cylinder electronic Filling Machines Specification | |||
| Brand | Chinese Kaiyuan Brand | ||
| Model | BCS-150 | ||
| Power supply available | 220V 50HZ | ||
| Rated power | 30W | ||
| Max weighting capacity | 150kg | ||
| Mini weighting capacity | 1kg | ||
| Measurement Precision | ±0.5% | ||
| Accuracy Level | Ⅲ | ||
| Certified Division value | 50g | ||
| Anti-explosion Rate | Exhibit II BT4 | ||
| Weighing station size | 535*425mm | ||
| Electronic scales No. | 3 sets | ||
More information, please feel free to contact with Ms. Anita.
Whatsapp/wechat: +86 13329899995
Skype: truck0011
QQ: 504873236
