2017s RHD 4*2 6M3 concrete mixer truck for sale， high quality and best price DONGFENG 6m3 cement mixer truck for sale
2017s RHD 4*2 6M3 concrete mixer truck for sale, high quality and best price DONGFENG 6m3 cement mixer truck for sale
Concrete mixer truck is also called cement mixer drump truck, concrete transported truck, concrete agitator, etc.
Main parameter of dongfeng concrete mixer trucks manufactured by Chengli Special Automobile Co., Ltd. as below
1, mixer drum turn smoothly, no segregation
2, high quality mixer drum, no leakage
3, reinforced truck frame, no vibration during transportation
4, large slumps, good flowability, easy to discharge.
Dongfeng 4*2 RHD 6M3 concrete mixer truck, adopts dongfeng 153 4*2 RHD truck chassis, YUCHAI 180p Euro 3 diesel engine with full power PTO, FASTGEAR 8 speed transmission, 4100mm wheelbase, 153 standard front/rear axles, 10.00 radial tires, air cut braking and power steering, etc.
The mixer drum volume is 6m3. The three key parts-hydraulic pump and hydraulic motor, reducer can choose China-made or Ialian imported PMP brand, etc.
DONGFENG RHD 4*2 6M3 concrete mixer truck for sale
| Main parameters | |||
| Product name | DONGFENG RHD 4*2 6M3 concrete mixer truck for sale | ||
| Total mass(Kg) | 16000 | volume(m3) | 6 |
| Rated mass(Kg) | 7550 | Overall dimension (mm) | 7370×2500×3650 |
| Curb mass(Kg) | 8255 | Front/rear suspension (mm) | 1250/2020 |
| Seated person | 3,2 | Wheelbase(mm) | 3950, |
| approach/departure angle(°) | 30/31 | Max speed (Km/h) | 90 |
| Axle nos. | 2 | Axle load(Kg) | 6000/10000 |
| Chassis main parameters | |||
| Chassis model | EQ1168GLJ3 | Chassis brand | Dongfeng brand |
| Overall dimension(mm) | 7250×2462×2740 | Tyre nos. | 6 |
| Approach/departure angle(°) | 30/26 | Tyre specification | 10.00R20 16PR |
| Steel spring | 9/10+8 | Front tread(mm) | 1750 |
| Fuel type | Diesel | Rear tread(mm) | 1800,1860,1750 |
| Emission standard | Euro Ⅲ/Euro Ⅳ | ||
| Engine | Yuchai 190hp EGR diesel engine with PTO | ||
| Transmission | Fastgear 8 speed | ||
| Front axle/rear axle | 5ton/10ton | ||
| Driver cab | Dongfeng 153 luxurious driver cab with power steering, | ||
| Mixer drum volume | 6 cubic meters | ||
| Material | Carbon steel | ||

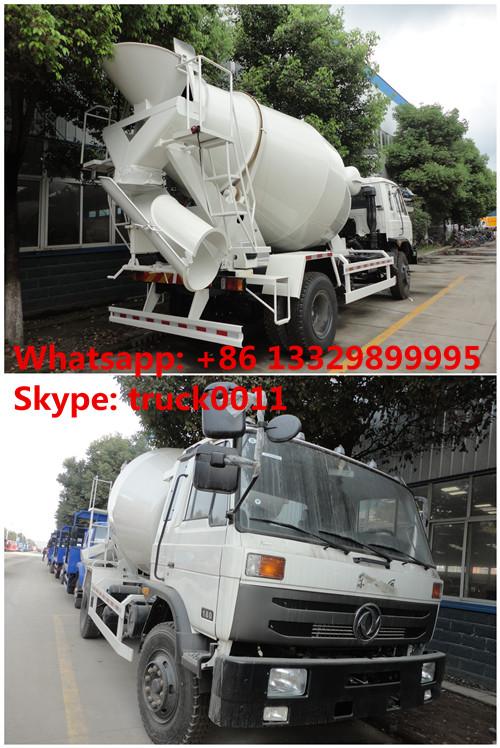

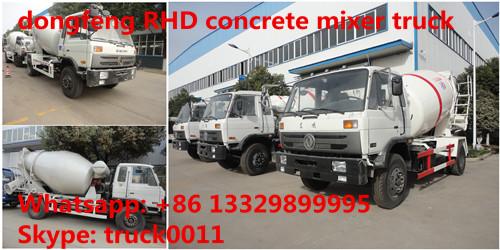

More pictures of hot sale DONGFENG RHD 6m3 truck mounted mixer truck manufactured by Chengli Special Automobile Co., Ltd. as below.
DONGFENG RHD 5M3 concrete mixer truck for sale
hot sale best price high quality dongfeng brand 6m3 cement mixer truck
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of cement mixer trucks in China. With many years' development, Chengli Special Automobile Co., Ltd. could offer 3cbm-16cbm concrete mixer trucks, such as dongfeng brand mixer truck, HOWO brand cement mixer truck, FAW brand mixer truck, Foton Auman mixer truck, JAC mixer truck, etc. More information, please feel free to contact with Ms. Anita.
