North Benz 340hp 10m3 concrete mixer truck for sale, high quality and best price Beiben 10m3 truck mounted mixer drum
2017s North Benz 340hp 10m3 concrete mixer truck for sale, high quality and best price Beiben brand 10m3 truck mounted mixer truck for sale
North Benz 6*4 RHD 10m3 concrete mixer truck, adopts North Benz 6*4 LHD/RHD truck chassis, Weichai 340hp Euro 3 diesel engine, FASTGEAR 9 speed gearbox, 3800+1450mm wheelbase, Benz rear axle, 12.00R20 radial tires, North Benz NG80 flathead driver cab, etc.
The mixer drum volume is 10m3, adopts high quality Q345 material. The three key parts: reducer, hydraulic pump and hydraulic motor choose to install China-made brands or Italian omported PMP/US Sauer Danfoss brand.
The main technical parameters of North Benz RHD 10cubic meters mixer truck as below.
| Main parameters | ||||
| Product name | North Benz 6*4 10M3 mixer truck for sale | |||
| Total mass(Kg) | 25000 | Driving model | 6*4 | |
| Rated mass(Kg) | 12000,11220 | Overall dimension(L*W*H)(mm) | 9300*2500*3900 | |
| Curb mass(Kg) | 12870, 13650 | Driver cab person | 3 | |
| approach/departure angle (°) | 26/20 | front/rear suspension(mm) | 1410/2640 | |
| Axle nos. | 3 | Wheelbase(mm) | 3800+1450 | |
| Axle load(Kg) | Max speed(Km/h) | 85 | ||
| Chassis main parameters | ||||
| Chassis model | ND1254B38J | Manufacturer | Dongfeng company | |
| Tyre specification | 12.00R20 radial tires | Tyre nos. | 10+1 | |
| Steel spring | 8/13, 8/12 | Front tread(mm) | 1995 | |
| Fuel type | Diesel | Rear tread(mm) | 1800/1800 | |
| Emission standard | Euro Ⅲ | Gearbox |
Fastgear 9 speed gearbox
|
|
| Driver cab | ||||
| Engine model | Manufacturer | Displacement (ml) | Power (Kw) | |
| WP10.340E32 | Weichai diesel engine | 9726 | 250 | |
| Engine type | 6 cylinders in line vertical, four-strokes | |||
| The special devices of mixer drum mounted on dongfeng truck chassis | ||||
| Tank volume(m3) | 10M3 | Mixer drum material | Q345 | |
| pump | Italian imported PMP brand or USA Sauer Danfoss brand | Hydraulic motor | Italian imported PMP brand or USA Sauer Danfoss brand | |
| Reducer | Italian imported PMP brand | Residue rate | ≤1.0﹪ | |
| Mixer Drum rotation | 1200(rpm) rpm | Water supplying way | air pressure type | |
| Discharging speed | 1100(m3/min) m3/min | Mixer drum angle of slope | 45(°) ° | |

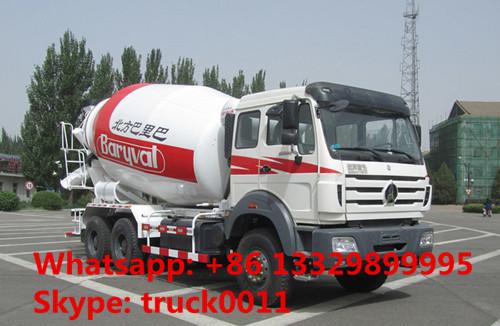

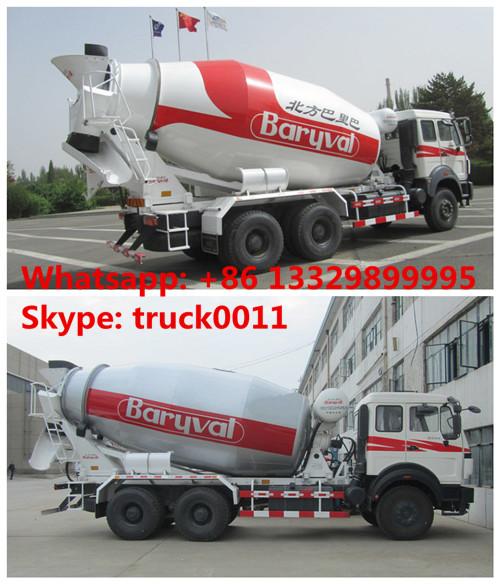

More pictures of hot sale North Benz 6*4 RHD 10M3 concrete mixer truck manufactured by Chengli Special Automobile Co., Ltd. as below
Beiben brand 10m3 RHD MIXER TRUCK FOR SALE
high quality and best price 10M3 beiben brand concrete mixer truck for sale
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of mixer truck in China since 2004s. With many years’ experience in supplying, Chengli Special Automobile Co., Ltd. could supply 2-5cbm small mixer truck, 6-10 cement mixer truck, 12-16cbm mixer truck, etc. And the mixer truck brand clude Dongfeng cement mixer truck, HOWO mixer truck, Shacman mixer truck, FAW mixer truck, forland mixer truck, Auman mixer truck, North Benz concrete mixer truck, UD cement mixer truck, etc.More information, please feel free to contact with Ms. Anita.
Whatsapp/wechat: +86 13329899995
Skype: truck0011
QQ: 504873236
