China famous JAC brand flatbed towing vehicle for sale, JAC brand 4*2 LHD car towing services platform wrecker vehicle
China famous JAC brand flatbed towing vehicle for sale, JAC brand 4*2 LHD car towing services platform wrecker vehicle
Wrecker truck, is also called road wrecker truck, It is made of the chassis, winch, trailer arm, hydraulic system, electric control system, flatbed and tool boxes, etc, also can select the crane. It combine hoisting, towing, etc functions, mainly used in pulling the broken car on highway and city road, suburb way, airport, etc.One truck can drive two broken car, one lies on the flatbed, another lies on the rear trailer arm.
If you're interested in our truck, please feel free to send email to truck0011@163.com or talk to Anita directly by Whatsapp/Wechat/Mob.: +86 13329899995
Website: www.trucksinchina.com
main technical parameters of hot sale JAC bran flatbed wrecker towing truck manufactured by Chengli Special Automobile Co., Ltd. as below
| Product name | JAC flatbed wrecker truck for sale(CLW5081TQZ4) | ||
| Engine model | Manufacturer | Displacement(ml) | Power(kw) |
| CY4102-CE4B | Chaochai | 3856 | 100 |
| Steering type | Steering wheel | Fuel type | Diesel |
| Overall dimension(L*W*H)(mm) | 7378*2300*2450(mm) | Cargo body dimension | ××(mm) |
| Total mass | 8495(Kg) | Curb mass | 5800(Kg) |
| Approach/departure angle | 24/10(°) | Front/rear suspension | 1085/2478(mm) |
| Axle load(kgs) | 3060/5435 | Wheelbase | 3815(mm) |
| Axle nos. | 2 | Max speed | 90(km/h) |
| Tire specification | 8.25-16 14PR | Leaf spring | 9/11+7 |
| Tyre nos. | 6+1 | Emission standard | Euro 3/4 |
| Front tread(mm) | 1665,1680,1710 | Rear tread | 1600(mm) |
| Special functions | Rated towing lifting mass | 2150kgs | |
| Bracket arm extension strokes | 1200mm | ||
| Max effective length of Bracket arm | 1300mm | ||
| Max traction speed | 40km/h | ||
| Flatbed dimension(L*W)(mm) | 5600*2320 | ||
| Flatbed working stroke | 2700mm | ||
| Max loading mass of the flatbed | 3000kgs | ||
| Flatbed mini angle of slope | 10 ° | ||
| Wince nos. | 1 | ||
| Rated tractor mass | 4000kgs | ||
| Steel rope length | 23m | ||
| Twisted rope speed | 8m/min | ||
| Crane | Choose to install telescopic/knuckle 2tons/3.2tons/3.5tons/4tons crane | ||
More pictures of hot sale JAC brand road recovery vehicle manufactured by Chengli Special Automobile Co., Ltd. as below.

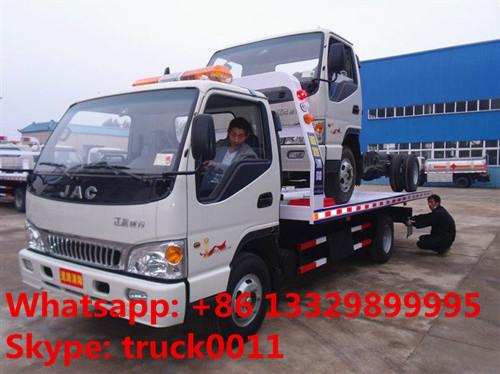

JAC brand wrecker tow truck for sale

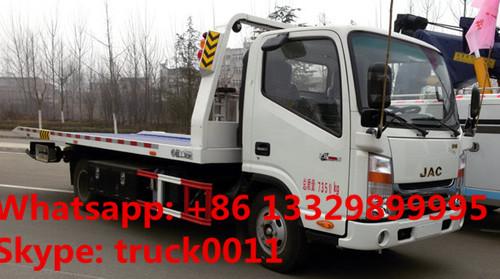

High quality and best price JAC brand flatbed wrecker tow truck for sale

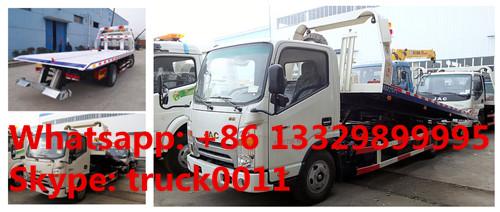

HOT SALE! JAC brand road tow truck for sale
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of special purpose vehicles in China. With many years’ development, We Chengli Special Autumobile Co., Ltd. could supply water tank, fuel tank, feed truck, truck with crane, dump truck, garbage truck, wrecker tow truck, lpg gas pressure vessels, refrigerated truck, vacuum truck, etc. More information, please feel free to contact with Ms. Anita.
