50m3 China cheapest price domestic lpg gas tank for sale, high quality 25tons above ground lpg gas storage tank for sale
50m3 China cheapest price domestic lpg gas tank for sale, high quality 25tons above ground lpg gas storage tank for sale
Chengli Special Automobile Co., Ltd. is a professional manufacturer and supplier of lpg gas pressure vessels in China, such as surface/underground lpg gas storage tank, lpg gas trailer, lpg gas truck, skid lpg gas filling plant, etc. We can Provide you LPG Storage Tank. Truck Mounted LPG Tank. LPG Tank Container. LPG Tank Semitrailer. Propane Bobtail Refilling Truck, LPG Delivery Tank Truck, LPG Gas Refilling Tank Truck,lpg cylinder filling plant,lpg cylinder filling station, etc.
The technical advantages of the CLW lpg gas pressure vessels manufactured by Chengli Automobile Co., Ltd. as below
1.Our biggest capacity of LPG tank truck is 35.5cbm;
2. Our biggest capacity of LPG trailer is 59.6cbm;
3. the LPG storage tank lpg cylinder filling station is from 5cbm to 120cbm, 200CBM.
If you're interested in our lpg gas pressure vessels, please feel free to send email to truck0011@163.com or talk to Anita directly by whatsapp/wechat/Mob.: +86 13329899995.
main technical parameters of lpg gas tanker manufactured by Chengli Special Automobile Co., Ltd. as below.
| Tank | Main technical parameters | |||
| Item | Data | Item | Data | |
| Filling medium | liquefied petroleum gas(propane) | Tank mass | 10640kgs | |
| Volume | 50m3 | Filling capacity | 25,000kgs | |
| Designed presure | 1.77Mpa | Overall dimension(inner diameter*tank wall thickness*length) | 2700*14*9182 | |
| Tank wall desined thickness | 13.7mm | |||
| Headend designed thickness | 13.67mm | Filling ratio | 0.95 | |
| Main material | Q345R | Hydrostatic test pressure | 2.22Mpa | |
| Corrosion allowance | 1mm | Age limit | 15 years | |
| Heat treatment | Stress relief | Density(kg/m3 ) | 420(50℃) | |
| 50m3 surface lpg gas storage tank | Chengli Special Automobile Co., Ltd. | |||
Nozzle table of 50m3 surface lpg gas storage tank as below
| sign |
Nominal size |
Nominal pressure |
Connection standard and form |
Connecting forms |
Name |
| a | DN50 | 25 | HG20592-WN | RF | Drain outlet |
| b | DN50 | 25 | HG20592-WN | RF |
Pipe for liquid out |
| C1-2 | DN50 | 25 | HG20592-WN | RF |
Balance valve for air phrase |
| d | DN50 | 25 | HG20592-WN | RF |
Pipe for liquid in |
| e | M33×2 | - | Whod |
Pipe for thermometer |
|
| f1-2 | DN25 | 25 | HG20592-WN | RF |
liquid level gauge |
| g | M20×1.5 | Whod |
Pipe for pressure gauge |
||
| h | DN80 | 25 | HG20592-WN | RF | Safety valve |
| i | DN50 | 25 | HG20592-WN | RF | Empty hole |
| j | DN450 | 25 | HG20592-WN | FM | Manhole |
Chengli Special Automobile Co., Ltd. can offers you domestic lpg tank and tank solutions. Tanks are designed, tested andmanufactured either underground or above ground applications.
We can also offer engineering solutions like skid piping or complete skid stations.
Technical Specifications :
- Design Pressure : 1.77mpa
- Design Temperature : -20 / + 50 ° C
Possible Volume Options:
- 5 m3
- 8m3
- 10 m3
- 12m3
- 15 m3
- 20m3
- 25m3
- 32m3
- 40m3
- 45m3
- 50m3
- 60m3
- 65m3
- 80m3
- 100m3
- 120m3
- 200m3

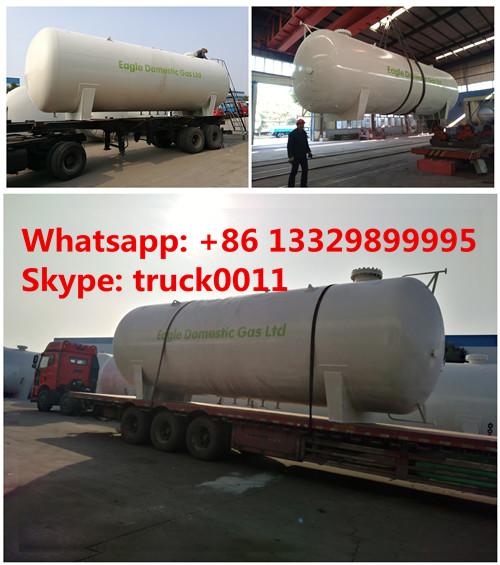

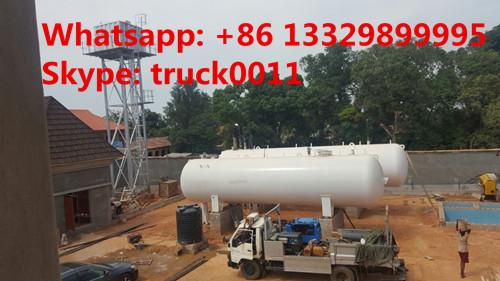

More pictures of hot sale CLW brand lpg gas pressure vessels as below
above ground domestic lpg gas storage tank for sale
best price 50tons surface lpg gas storgae tank for Nigeria
