China famous best price Chang’an mobile LED digital advertising truck for sale, Chang'an 4*2 LHD outdoor LED truck
China famous best price Chang’an brand mini mobile LED digital advertising truck for sale, hot sale Chang'an 4*2 LHD outdoor LED billboard minivan
2/3 sides LED billboard truck,
PIXELS: 10mm/8mm/6mm(P10/P8/P6)
One side: 2240*1440=3.22㎡
Two Sides(left + right): 3.22m2*2=6.44m2
Rear: 960x1280=1.23m2
The overall dimension(L*W*H) of Chang’an Mobile LED truck:4230×1680×2340,2390(mm), truck model: CLW5020XXCS4.
1, the right side of the driver cab is with high quality P10/P8/P6 HD waterproof and shake-proof full color outdoor screen (screen area: 2240*1440=3.22㎡).
2, the left side of the driver cab is with word roller light-box with automatically switching format advertisings; and the exterior with tempered glass or left and right sides with P10/P8/P6 screens
3, the rear part screen is with single color word screen (screen area: 960x1280=1.23㎡)
4, truck mounted diesel generator adopts high quality YIHU 9KW gasoline generator unit.
5, truck trim: 5cm thickness composited steel box body frame, FRP material body, wooden floor, 4 sets of waterproof Audio, one set amplifier, intelligent Mechatronics controlling system, Circulating ventilation cooling system, safety intelligent Automatic switching system for inside and outside of the network, high ability Mute generator set, Gigabit flow Media control system.
Remark: the computer is with English words, English operation system and Software playback system.
If you're interested in our mobile LED advertising truck, please feel free to send email to truck0011@163.com or talk to Anita directly by Whatsapp/Wechat/Mob.: +86 13329899995.
Website: www.trucksinchina.com
main technical parameters of hot sale Chang'an mobile LED advertising truck as below
| Main technical parameters | |||
| Product name | Chang’an MOBILE LED billboard truck for sale | ||
| Total mass(Kg) | 1730(kg) | Diesel generator | Yihu 6.5KW/9KW yihu gasoline generator unit |
| Curb mass(Kg) | 1600(Kg) | Overall dimension(L*W*H)(mm) | 4650×1695×2600(mm) |
| Side screen area | 4230×1680×2340,2390 | Rear screen area | 960*1280=1.23m2 |
| Seated person | 2 | Truck mounted computer | Full ENGLISH word Computer |
| Approach/departure angle(°) | 58/21(°) | Front/rear suspension(mm) | 480/1250(mm) |
| Axle nos. | 2 | Wheelbase(mm) | 2500 |
| Axle load(Kg) | 900/830 | Max speed(Km/h) | 90 |
| Truck chassis | |||
| Truck chassis model | SC1022DB4N | Manufacturer | Chang’an company |
| Tire specification | 165/70R13LT | Tire nos. | 4+1 |
| Front tread(mm) | 1280 | Rear tread(mm) | 1290 |
| Steel spring | -/5 | Gearbox | 5 speed gearbox |
| Emission standard | Euro 4 | ||
| Engine model | Manufacturer | Displacement (ml) | Power (Kw) |
| JL466Q1 | Liuji gasoline | 1012 | 50.7KW/70Hp |
More pictures of hot sale Chang'an brand mobile P6 outdoor LED billboard vehicle as below.
Chang'an brand P8 mobile outdoor LED vehicle for sale

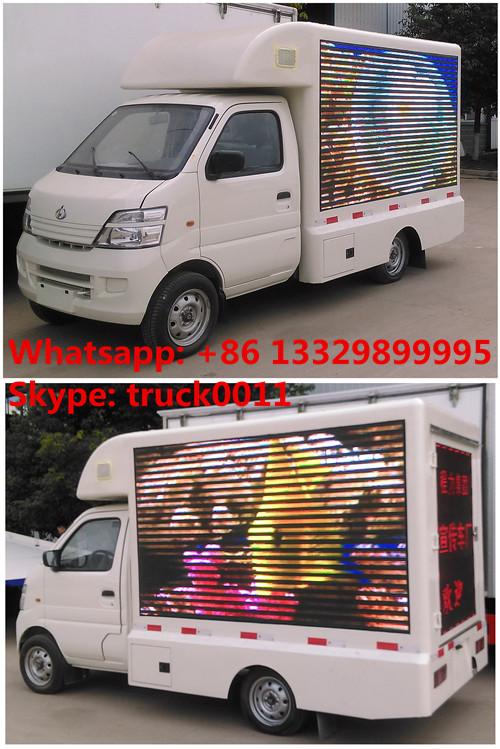

hot sale high quality and best price Chang'an mini LED billboard advertising vehicle
More information, please feel free to contact with Ms. Anita.
Whatsapp/wechat: +86 13329899995
Skype: truck0011
QQ: 504873236
