FOTON AUMARK 4*2 LHD/RHD mobile digital billboard LED advertising vehicle for sale,HOT SALE! P6/P8 mobile LED truck
FOTON AUMARK 4*2 LHD/RHD mobile digital billboard LED advertising vehicle for sale,HOT SALE! BEST PRICE!P6/P8 mobile LED advertising truck for sale
3 sides LED billboard truck,
PIXELS: 10mm/8mm/6mm(P10/P8/P6)
One side: 6.88
Sides(left + right): 6.88m2*2=13.76m2
Rear: 1.84m2
Stage: 10m2
The overall dimension(L*W*H) of FOTON AUMARK Mobile LED truck:5995×2040×2990 (mm),
1, the right side of the driver cab is with high quality P10/P8/P6 HD waterproof and shake-proof full color outdoor screen (screen area: 3840*1792=6.88m2),choose to install the side screen is with hydraulic lifting stage(stage area: 10m2, lifting height: 1.5m) and 4 sets manual/hydraulic outriggers.
2, the left side of the driver cab is with word roller light-box with automatically switching format advertisings; and the exterior with tempered glass or left and right sides with P10/P8/P6 screens
3, the rear part screen is with single color word screen (screen area: 1280*1440=1.84m2)
4, truck mounted diesel generator adopts high quality OUMA 8KW/15KW diesel generator.
5, truck trim: 5cm thickness composited steel box body frame, FRP material body, wooden floor, 4 sets of waterproof Audio, one set amplifier, intelligent Mechatronics controlling system, Circulating ventilation cooling system, safety intelligent Automatic switching system for inside and outside of the network, high ability Mute generator set, Gigabit flow Media control system.
If you're interested in our mobile LED truck, please feel free to send email to truck0011@163.com or talk to Anita directly by Whatsapp/Wechat/Mob.: +86 13329899995.
Website: www.trucksinchina.com
Remark: the computer is with English words, English operation system and Software playback system
| Main technical parameters | |||
| Product name | FOTON AUMARK MOBILE LED billboard truck for sale | ||
| Total mass(Kg) | 4495 | Diesel generator | OUMA 8KW/15KW diesel generator |
| Curb mass(Kg) | 4300 | Overall dimension(L*W*H)(mm) | 5995×2040×2990 |
| Side screen area | 3840*1792=6.88m2 | Rear screen area | 1280*1440=1.84m2 |
| Seated person | 2 | Truck mounted computer | Full ENGLISH word Computer |
| Approach/departure angle(°) | 21/17(°) | Front/rear suspension(mm) | 1120/1500(mm) |
| Axle nos. | 2 | Wheelbase(mm) | 3360 |
| Axle load(Kg) | 1350/3145 | Max speed(Km/h) | 90 |
| Truck chassis | |||
| Truck chassis model |
BJ1049V9JD6-AA
|
Manufacturer | Foton |
| Tire specification | 7.00R16 | Tire nos. | 6+1 |
| Approach/departure angle(°) | 20/25 | Front tread(mm) | 1530,1730 |
| Steel spring | 3/5+3 | Rear tread(mm) | 1485,1590 |
| Driver cab | 2 | Gearbox | 5 speed gearbox |
| Driver cab | FOTON AUMARK single row driver cab with air conditioner | Axle | 5tons rear axle |
| Brake | Oil cut brake | Fuel type | Diesel |
| Emission standard | Euro 3/4 | ||
| Engine model | Manufacturer | Displacement (ml) | Power (Kw) |
| ISF2.8s4117V | Cummins | 2780 | 87KW/117hp |

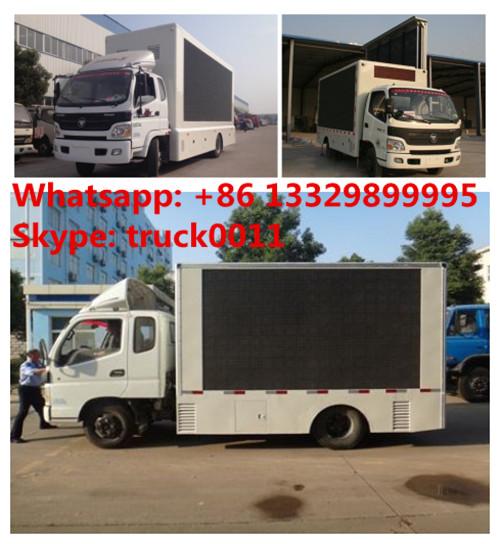

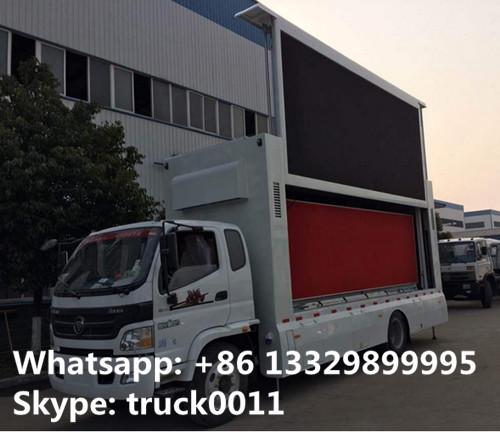

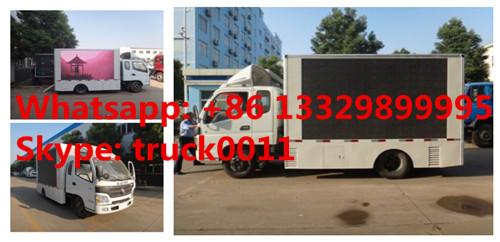

More pictures of hot sale forland aumark 4*2 LHD mobile LED advertising vehicle manufactured by Chengli Special Automobile Co., Ltd. as below.
FOTON AUMARK mobile LED truck for sale
high quality and best price FOTON AUMARK mobile LED advertising truck for sale
More information, please feel free to contact with Ms. Anita.
Whatsapp/wechat: +86 13329899995
Skype: truck0011
QQ: 504873236
