FOTON kangrui 4*2 LHD/RHD mobile digital billboard LED advertising vehicle for sale, Customized LED truck for OPPO
FOTON kangrui 4*2 LHD/RHD mobile digital billboard LED advertising vehicle for sale, good price and high quality Customized mobile LED truck for OPPO MOBILE
3 sides LED billboard truck,
PIXELS: 10mm/8mm/6mm(P10/P8/P6)
One side: 6.88, max to 7m2
Sides(left + right): 6.88m2*2=13.76m2/ 14m2
Rear: 1.84m2
Stage: 10m2
The overall dimension(L*W*H) of FOTON KANGRUI 4*2 LHD Mobile LED truck:5995×2025×2995 (mm), truck model: CLW5040XXC4.
1, the right side of the driver cab is with high quality P10/P8/P6 HD waterproof and shake-proof full color outdoor screen (screen area: 3840*1792=6.88m2),choose to install the side screen is with hydraulic lifting stage(stage area: 10m2, lifting height: 1.5m) and 4 sets manual/hydraulic outriggers.
2, the left side of the driver cab is with word roller light-box with automatically switching format advertisings; and the exterior with tempered glass or left and right sides with P10/P8/P6 screens
3, the rear part screen is with single color word screen (screen area: 1280*1440=1.84m2)
4, truck mounted diesel generator adopts high quality OUMA 8KW/15KW diesel generator.
5, truck trim: 5cm thickness composited steel box body frame, FRP material body, wooden floor, 4 sets of waterproof Audio, one set amplifier, intelligent Mechatronics controlling system, Circulating ventilation cooling system, safety intelligent Automatic switching system for inside and outside of the network, high ability Mute generator set, Gigabit flow Media control system.
Remark: the computer is with English words, English operation system and Software playback system.
If you're interested in mobile LED truck, please feel free to send email to truck0011@163.com or talk to Anita directly by Whatsapp/Wechat/Mob.:+86 13329899995.
Website: www.trucksinchina.com
main technical parameters of hot sale
| Main technical parameters | |||
| Product name | FOTON kangrui MOBILE LED billboard truck for sale (CLW5040XXC4) | ||
| Total mass(Kg) | 4495 | Diesel generator | OUMA 8KW/15KW diesel generator |
| Curb mass(Kg) | 4300 | Overall dimension(L*W*H)(mm) | 5995×2025×2995 |
| Side screen area | 3840*1792=6.88m2 | Rear screen area | 1280*1440=1.84m2 |
| Seated person | 2 | Truck mounted computer | Full ENGLISH word Computer |
| Approach/departure angle(°) | 21/17(°) | Front/rear suspension(mm) | 1120/1500(mm) |
| Axle nos. | 2 | Wheelbase(mm) | 3360 |
| Axle load(Kg) | 1350/3145 | Max speed(Km/h) | 90 |
| Truck chassis | |||
| Truck chassis model |
BJ1043V9JEA-A
|
Manufacturer | Foton |
| Tire specification | 7.00R16 | Tire nos. | 6+1 |
| Approach/departure angle(°) | 20/25 | Front tread(mm) | 1530,1730 |
| Steel spring | 3/5+3 | Rear tread(mm) | 1485,1590 |
| Driver cab | 2 | Gearbox | 5 speed gearbox |
| Driver cab | FOTON AUMARK single row driver cab with air conditioner and power steering | Axle | 5tons rear axle |
| Brake | Air cut brake | Fuel type | Diesel |
| Emission standard | Euro 4 | ||
| Engine model | Manufacturer | Displacement (ml) | Power (Kw) |
| YN27CRD1 | Yunnei | 2672 | 70KW/95hp |

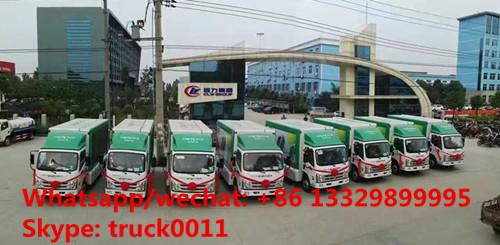

More pictures of hot sale FOTON KANGRUI mobile LED billboard LED advertising truck manufactured by Chengli Special Automobile Co., Ltd. as below.

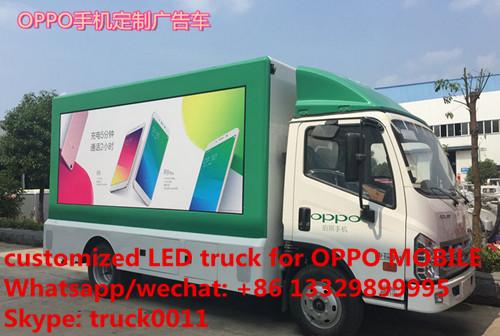

customized LED screen truck for OPPO MOBILE for sale
Forland mobile LED billboard screen truck for sale
HOT SALE! forland 4*2 LHD mobile LED truck
