JBC LHD mobile digital billboard LED advertising vehicle for sale, China supplier of mobile LED advertising truck
JBC LHD mobile digital billboard LED advertising vehicle for sale, China manufacturer and supplier of mobile LED adveritising truck in 2017s
3 sides LED billboard truck,
PIXELS: 10mm/8mm/6mm(P10/P8/P6)
One side: 6.88
Sides(left + right): 6.88m2*2=13.76m2
Rear: 1.84m2
Stage: 10m2
SIDE
The overall dimension(L*W*H) of JBC brand Mobile LED truck:5995×2000×3080 (mm),
1, the right side of the driver cab is with high quality P10/P8/P6 HD waterproof and shake-proof full color outdoor screen (screen area: 3840*1792=6.88m2),choose to install the side screen is with hydraulic lifting stage(stage area: 10m2) and 4 sets manual/hydraulic outriggers.
2, the left side of the driver cab is with word roller light-box with automatically switching format advertisings; and the exterior with tempered glass or left and right sides with P10/P8/P6 screens
3, the rear part screen is with single color word screen (screen area: 1280*1440=1.84m2)
4, truck mounted diesel generator adopts high quality OUMA 8KW/15KW diesel generator.
5, truck trim: 5cm thickness composited steel box body frame, FRP material body, wooden floor, 4 sets of waterproof Audio, one set amplifier, intelligent Mechatronics controlling system, Circulating ventilation cooling system, safety intelligent Automatic switching system for inside and outside of the network, high ability Mute generator set, Gigabit flow Media control system.
Remark: the computer is with English words, English operation system and Software playback system.
If you're interested in our mobile LED advertising truck, please feel free to send email to truck0011@163.com or talk to Anita directly by Whatsapp/Wechat/MOb.: +86 13329899995.
Website: www.trucksinchina.com
main technical parameters of hot sale JBC mobile LED billboard advertising truck manufactured by Chengli Special Automobile Co., Ltd. as below
| Main technical parameters | |||
| Product name |
JBC brand MOBILE LED billboard truck for sale
|
||
| Total mass(Kg) | 4495 | Diesel generator | OUMA 8KW/15KW diesel generator |
| Curb mass(Kg) | 4365 | Overall dimension(L*W*H)(mm) | 5995x1700x3365 |
| Side screen area | 3840*1792=6.88m2 | Rear screen area | 1280*1440=1.84m2 |
| Seated person | 2 | Truck mounted computer | Full ENGLISH word Computer |
| Approach/departure angle(°) | 21/14 | Front/rear suspension(mm) | 1020/1625 |
| Axle nos. | 2 | Wheelbase(mm) | 3350 |
| Axle load(Kg) | 1685/2810 | Max speed(Km/h) | 90 |
| Truck chassis | |||
| Truck chassis model | SY1044DV5S | Manufacturer | JBC company |
| Tire specification | 7.00-15 10PR | Tire nos. | 6+1 |
| Approach/departure angle(°) | 22/14 | Front tread(mm) | 1400 |
| Steel spring | 8/9+3 | Rear tread(mm) | 1400 |
| Driver cab | 2 | Brake | Air cut brake |
| Fuel type | Diesel | Gearbox | 5 speed gearbox |
| Emission standard | Euro Ⅳ | ||
| Engine model | Manufacturer | Displacement (ml) | Power (Kw) |
| CA4DC2-10E4 | YIQI | 3168 | 79/115hp |

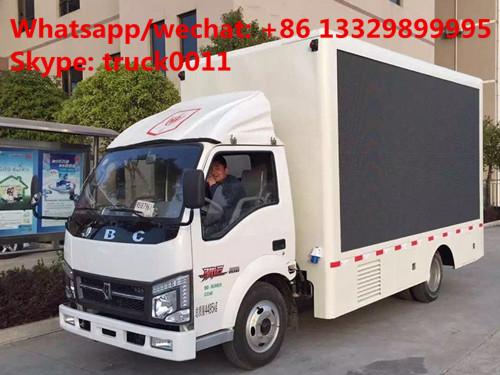

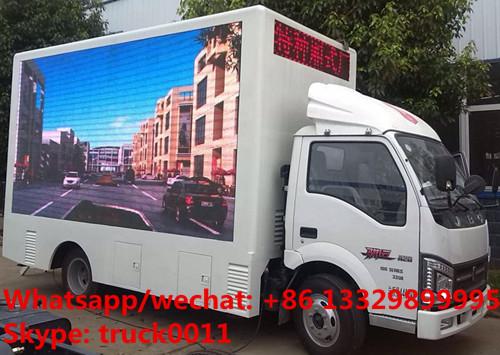

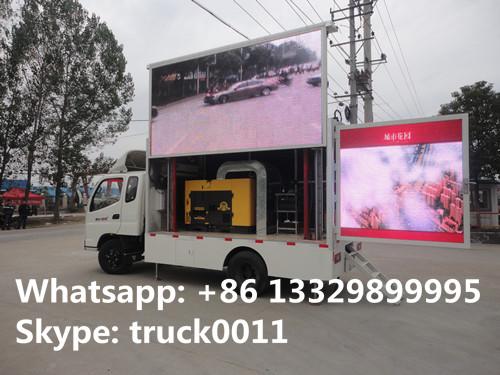

More pictures of hot sale mobile LED advertising truck as below
hot sale! 2017s best seller mobile LED truck
high quality and best price CLW brand mobile outdoor LED billboard adveritising truck for sale
More information, please feel free to contact with Ms. Anita.
Whatsapp/wechat: +86 13329899995
Skype: truck0011
QQ: 504873236
